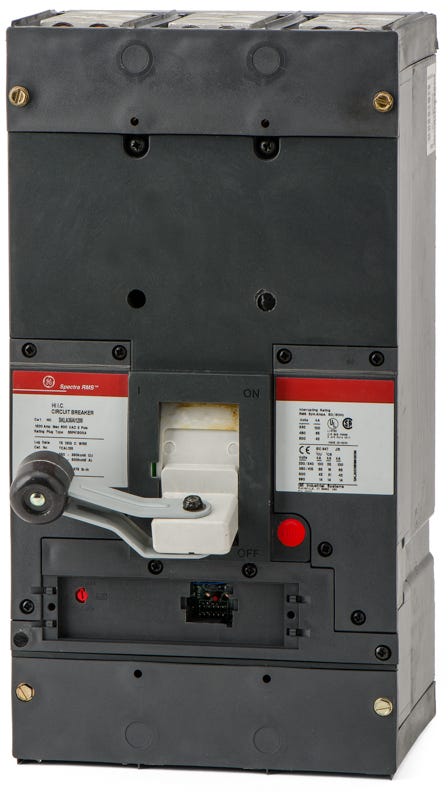

ABB / General Electric SKLA36AI1200 Motor Circuit Protector
- 1200A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric SKLA36AI1200 - 1200A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
ABB / General Electric SKLA36AI1200 - 1200A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLA36AI1200 |
| Series | SKLA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Frame Type | SKLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Mechanism Lock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, True RMS Sensing, Reverse Feed, HACR Rated, Interchangeable Rating Plug |
Quantity
ABB / General Electric SKLA36AI1200 - 1200A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLA36AI1200 |
| Series | SKLA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Frame Type | SKLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Mechanism Lock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, True RMS Sensing, Reverse Feed, HACR Rated, Interchangeable Rating Plug |
Description
Designed to safeguard critical industrial equipment, this 1200A motor circuit protector provides instantaneous-only trip functions for robust short-circuit defense. The unit mounts into GE Spectra Series switchboards. When transitioning to newer technology, this model is replaced by the XT7H 1200 Ekip M Dip I, requiring a compatible retrofit kit. With a 65kAIC rating at 480VAC, it features true RMS sensing and an adjustable magnetic trip to ensure precise coordination with motor starters.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLA36AI1200 |
| Series | SKLA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Frame Type | SKLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Mechanism Lock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, True RMS Sensing, Reverse Feed, HACR Rated, Interchangeable Rating Plug |
