ABB / General Electric TB13030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
TB13030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TB13030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

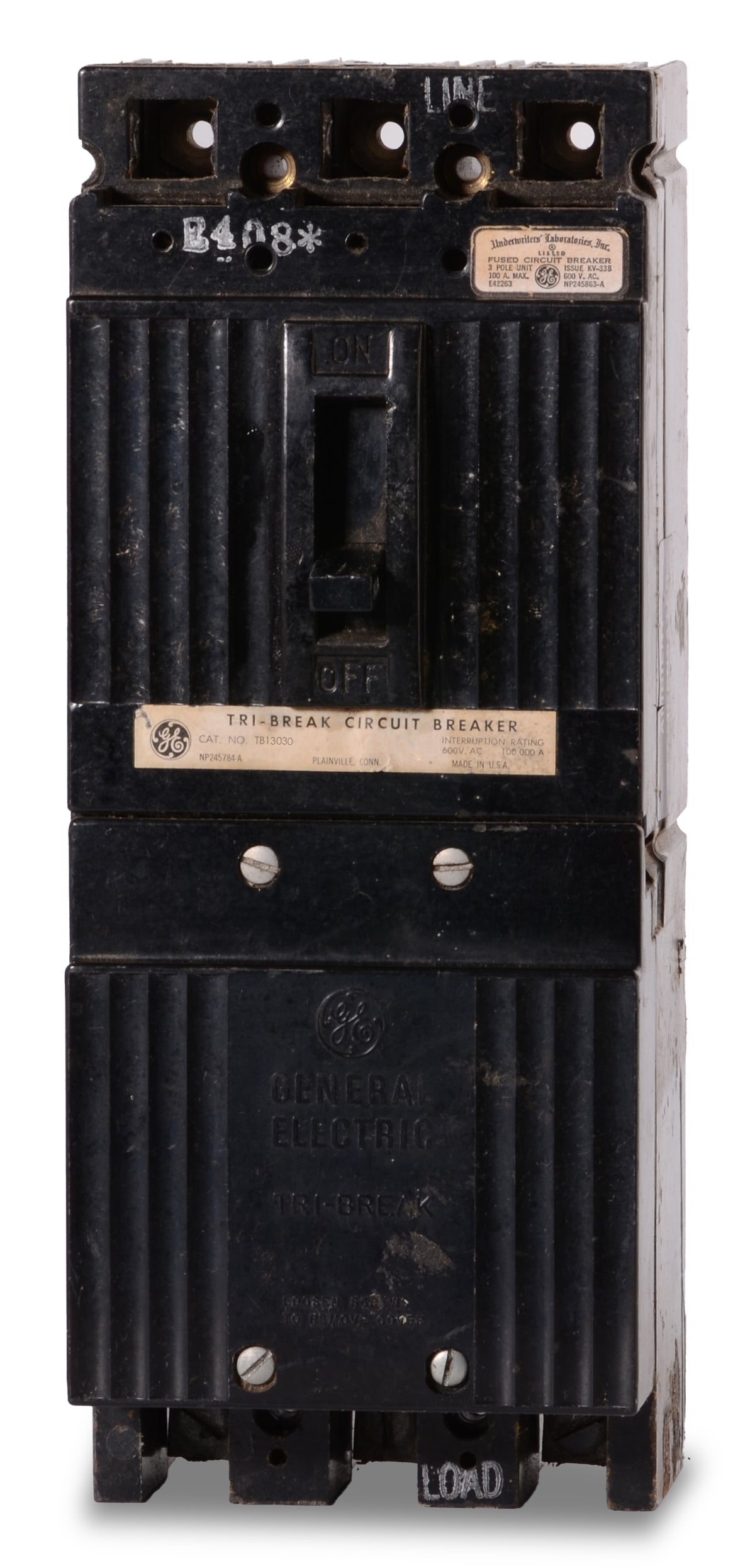

ABB / General Electric TB13030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTB13020BWE05
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TB13030 is a 30A, 3-pole current-limiting MCCB from the Tri-Break family. This unit-mount breaker installs into GE switchboards, motor control centers, and A-Series panelboards. It includes line and load lugs for 14-1/0 AWG wire. Rated 200 kAIC at 480V, it features a fixed thermal-magnetic trip. The integrally fused design ensures reliable fault interruption and superior let-through energy reduction.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TB13030 |
| Series | TB1 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TB1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Current Limiter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, Non-Interchangeable Trip |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
5 answersWhat types of enclosures and panels are compatible with the TB13030?
This unit-mount breaker is designed for installation in GE switchboards, motor control centers, and GE A-Series panelboards. Because it is a unit-mount design, it bolts directly to the mounting surface or backpan rather than plugging into a busbar.
What wire sizes are supported by the factory lugs on the TB13030?
The included lugs accept both copper and aluminum conductors ranging from 14 AWG to 1/0 AWG. Ensure proper torque specifications are followed during installation as outlined on the breaker faceplate.
How does the current limiting feature of the TB1 series operate?
As a current-limiting breaker, the TB13030 is designed to clear high-level faults in less than half a cycle. This rapid action significantly reduces the peak let-through current and let-through energy, providing enhanced protection for downstream electrical components.
Why might this breaker be labeled as either ABB or General Electric?
ABB acquired General Electric Industrial Solutions in 2018. As a result, TB1 series breakers like the TB13030 may feature either GE or ABB branding depending on the exact date of manufacture, but they are physically and electrically identical.
Are the thermal and magnetic trip settings adjustable on this model?
No, the TB13030 features a fixed thermal and fixed magnetic trip unit. If your application requires adjustable trip settings for coordination studies, you will need to select a different breaker frame or an electronic trip unit.
