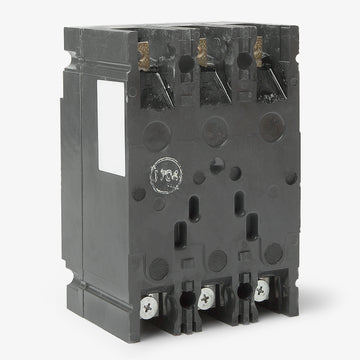

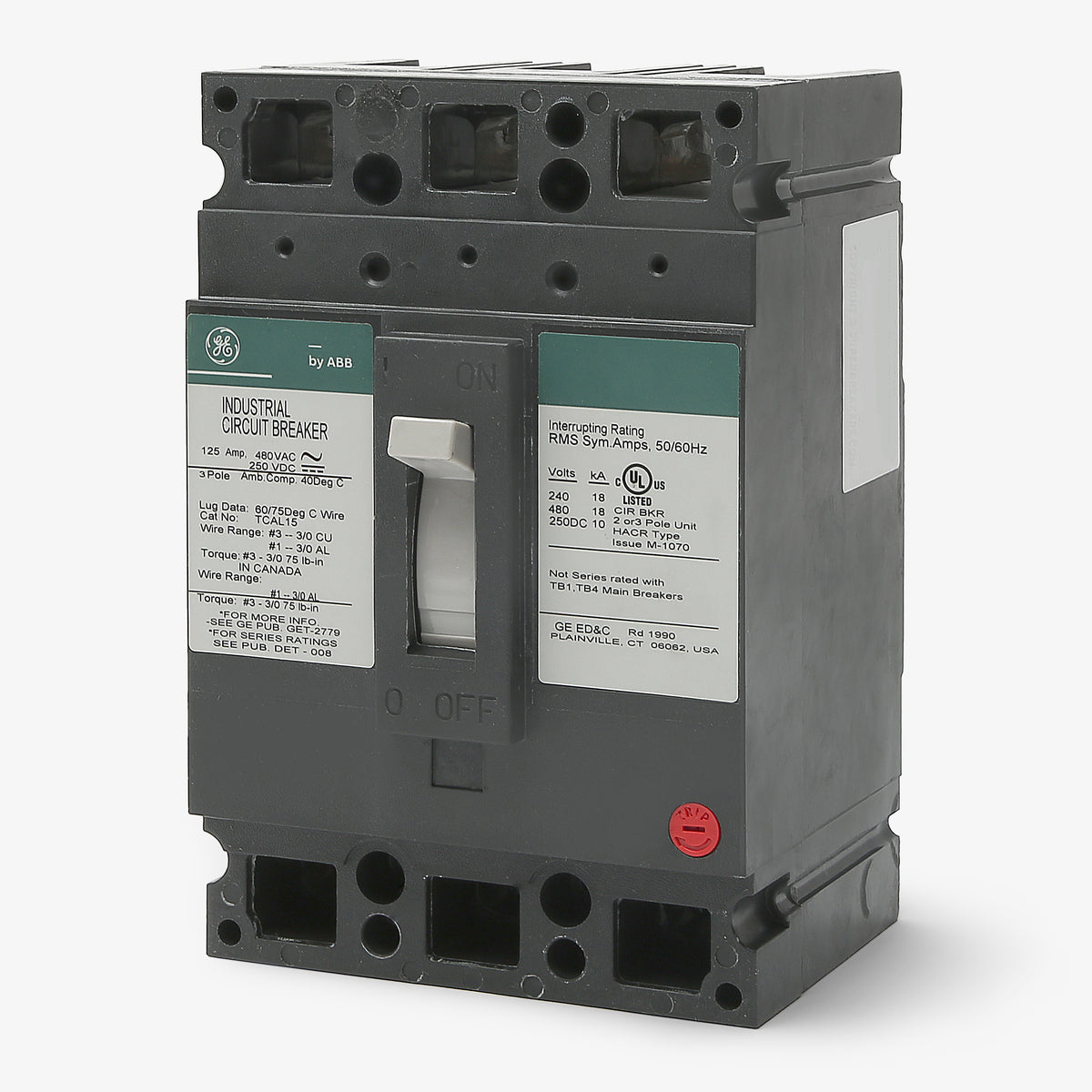

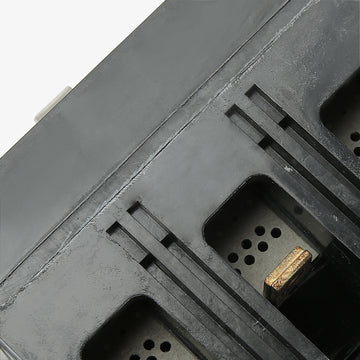

ABB / General Electric TEB132010WL Molded Case Circuit Breaker
- 10A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132010WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132010WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132010WL - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEB132020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile installation, this 3-pole unit mount circuit breaker comes standard with line and load lugs for immediate wire termination. It mounts into GE switchboards, motor control centers, and individual enclosures, making it ideal for feed-thru applications. With a 10kAIC rating at 240VAC and reverse-feed capabilities, the breaker delivers reliable thermal-magnetic protection for commercial and industrial electrical distribution networks.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132010WL |
| Series | TEB |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "WL" suffix mean in the TEB132010WL catalog number?

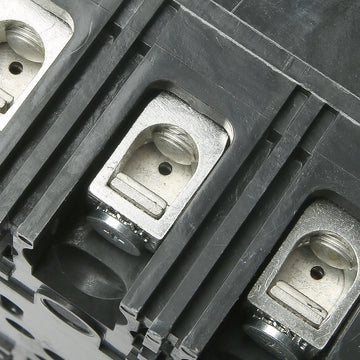

The "WL" suffix indicates that the circuit breaker is supplied from the factory with both line and load lugs installed. If ordered without the "WL" designation, the breaker would be supplied without line lugs.
What is the difference between GE TEB, TED, and THED circuit breakers?
All three are E-frame molded case circuit breakers with identical physical dimensions, but they differ in their interrupting capacity. At 240VAC, the TEB is rated for 10kAIC, the TED is rated for 18kAIC, and the THED is rated for 65kAIC.
Is the TEB132010WL suitable for direct current (DC) applications?
Yes, this breaker has a DC voltage rating of 250VDC with an interrupting capacity of 5kA. This makes it suitable for use in certain control circuits, battery backups, and industrial DC systems.
What is the recommended lug torque for the TEB132010WL?
For the standard lugs, the tightening torque depends on the wire size. For 14 AWG to 10 AWG wire, torque to 35 in-lb. For 8 AWG wire, torque to 40 in-lb. Always verify the exact torque specifications printed on the breaker label before installation.
Can this breaker be used in older GE panelboards?
Yes, the TEB132010WL is a legacy E-frame breaker designed to fit GE A-Series panelboards, switchboards, and motor control centers. It serves as a direct replacement for older TEB frame breakers with the same specifications.
What type of trip unit does the TEB132010WL use?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) trip functions. This provides standard overload and short-circuit protection without the need for field adjustments.
