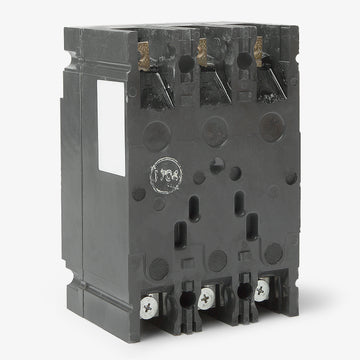

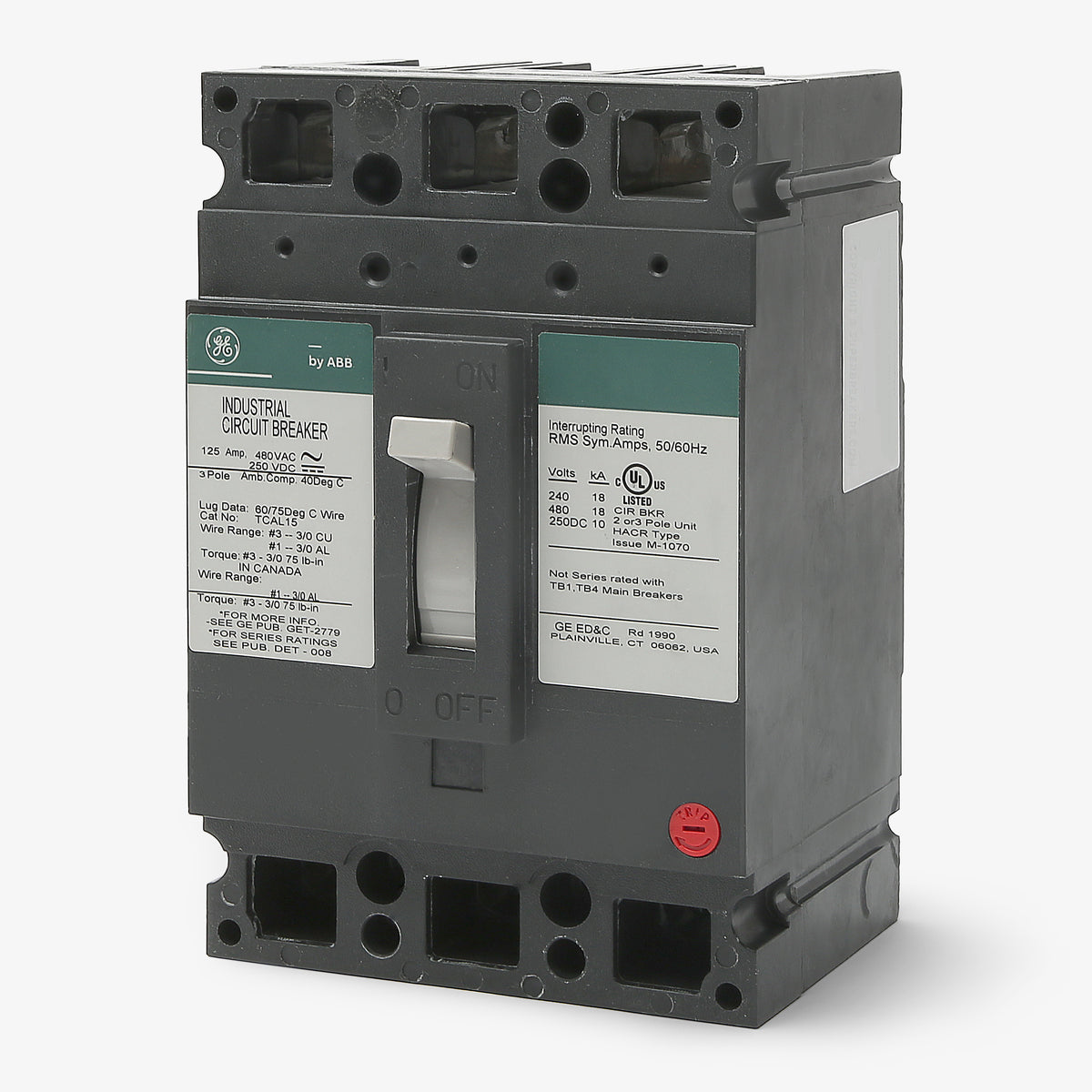

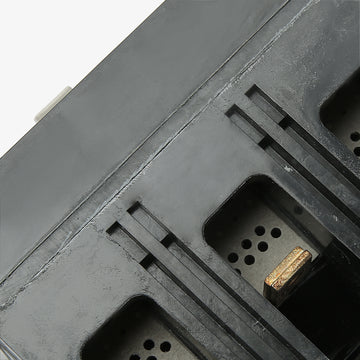

ABB / General Electric TEB132070WL Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
ABB / General Electric
TEB132070WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132070WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB132070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132070WL |
| Series | TEB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards, Motor Control Centers |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Quantity
ABB / General Electric TEB132070WL - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132070WL-R |
| Series | TEB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards, Motor Control Centers |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
ABB / General ElectricTEB132060WL
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132090WL
90A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132050WL
50A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial power distribution, the GE TEB132070WL provides robust thermal-magnetic protection. This 70-amp E-Frame device offers proven performance. Its unit-mount configuration allows flexible installation into enclosures and switchboards. It serves as an exact replacement for the older TE132070. Featuring a 10kA interrupting capacity at 240VAC, it includes factory-installed lugs. The breaker is HACR rated and reverse feed capable for HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132070WL |
| Series | TEB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards, Motor Control Centers |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat does the WL suffix mean in the TEB132070WL catalog number?

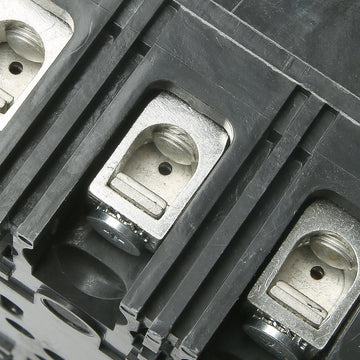

The WL suffix indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs. It serves as a direct replacement for the older TEB132070 model.
Which panelboards are compatible with the TEB132070WL circuit breaker?
This E-Frame breaker is designed for use in GE A-Series and Spectra Series panelboards, as well as compatible switchboards, motor control centers, and individual enclosures.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this E150 Line circuit breaker may feature either ABB or GE branding, but the physical dimensions, fit, and electrical functions remain identical.
Can the TEB132070WL be reverse fed?
Yes, GE TEB frame circuit breakers are suitable for reverse feed applications.
How does the TEB132070WL mount into a panel?
This is a unit mount, feed-thru circuit breaker. It bolts directly into compatible distribution panels or individual enclosures using standard E150 Line mounting hardware.
Is the TEB132070WL suitable for HVAC equipment?
Yes, TEB frame breakers are HACR rated, making them suitable for heating, air conditioning, and refrigeration applications.
