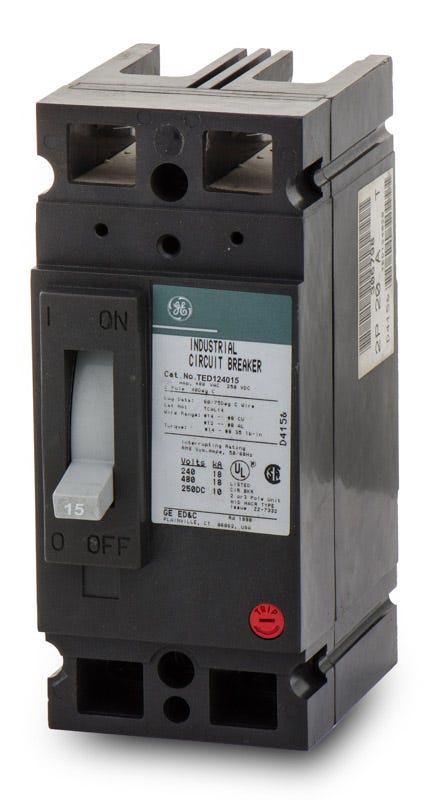

ABB / General Electric TED124015WL Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Quantity
ABB / General Electric TED124015WL - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for commercial applications, the GE TED124015WL is a 2-pole, 15A molded case circuit breaker from the legacy E-Frame series. It delivers reliable thermal-magnetic protection for electrical distribution systems. This unit mount breaker installs into individual enclosures, switchboards, and motor control centers. It includes TCAL14 lugs for 14-8 AWG copper wire. Featuring LI trip functions, it provides an 18kAIC rating at 480VAC. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124015WL |
| Series | TED |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL14) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
4 answersWhat does the WL suffix in the TED124015WL catalog number indicate?
The WL suffix signifies that the circuit breaker includes factory-installed copper/aluminum (Cu/Al) line and load lugs.
What are the physical dimensions of this 2-pole E150 frame breaker?
The 2-pole TED frame measures 6-5/16 inches high, 2-3/4 inches wide, and 3-3/8 inches deep.
Can the TED124015WL be reverse fed?
Yes, GE TEB, TED, and THED molded case circuit breakers are suitable for reverse feed applications.
Are GE TEB, TED, and THED circuit breakers interchangeable?
Yes, they all share the same E150 frame dimensions and mounting configurations. The primary difference is their interrupting capacity. TEB is the low-tier option, TED provides standard capacity, and THED offers high interrupting capacity for systems with higher available fault currents.
