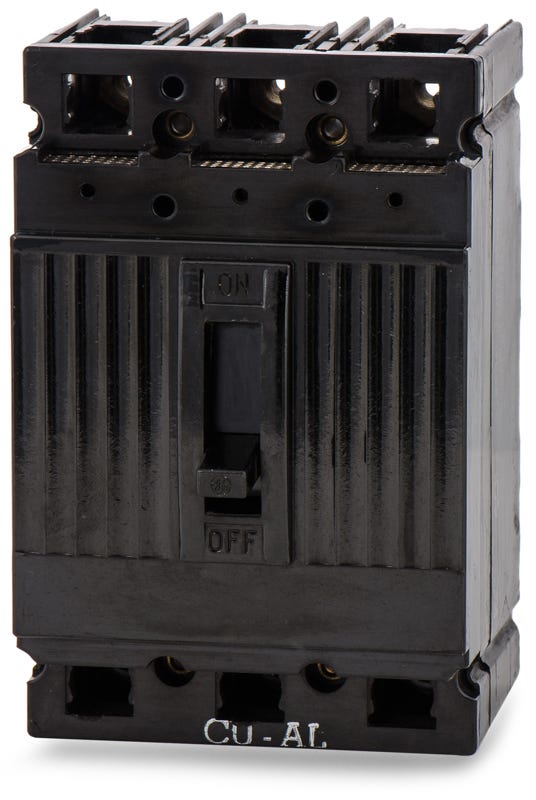

ABB / General Electric TEF136030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
TEF136030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEF136030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEF136030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEF134020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEF134050
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Delivering dependable overcurrent protection, this 30-amp thermal-magnetic breaker is engineered for commercial power systems. The non-interchangeable trip unit provides fixed long-time and instantaneous responses to electrical faults. This component mounts into standard GE A-Series panelboards, switchboards, and MCCs. Facility managers often deploy it as a replacement for aging infrastructure. Equipped with TCAL12 lugs, it handles up to 600VAC with a 14kAIC rating and allows reverse feeding.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEF136030-R |
| Series | TEF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit (TCAL12) |
|---|---|
| Accessories | Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich enclosures and panelboards accept the TEF136030 circuit breaker?
This E-Frame breaker is designed for bolt-on installation in GE A-Series panelboards, GE switchboards, and motor control centers. It is commonly used for commercial power distribution and infrastructure upgrades.
How is the TEF136030 secured within a panelboard?
It utilizes a bolt-on mounting configuration, bolting directly to the busbar. This provides a secure, vibration-resistant connection that is ideal for heavy-duty commercial and industrial environments.
Why might my TEF136030 arrive with ABB branding instead of GE?
Following ABB's acquisition of GE Industrial Solutions, newer production runs of this legacy E-Frame breaker carry the ABB name. The physical dimensions, mounting hardware, and electrical specifications remain completely identical regardless of the label.
Can the thermal or magnetic trip points be adjusted on this breaker?
No, the TEF136030 features a non-interchangeable, fixed thermal-magnetic trip unit. The long-time and instantaneous (LI) protection parameters are factory set and cannot be modified in the field.
What frame size family does the TEF136030 belong to?
It is part of the legacy GE E-Frame family, specifically belonging to the E150 line of molded case circuit breakers which have a maximum frame rating of 150 amps.
Is the TEF136030 suitable for reverse feed applications?
Yes, this E-Frame breaker is capable of being reverse fed. This allows the line and load connections to be swapped if required by the specific panel or enclosure layout.
