ABB / General Electric TEL136015WL Miniature Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136015WL
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136015WL - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TEL136015WL - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136015WL |
| Series | TEL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Quantity
ABB / General Electric TEL136015WL - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136015WL-R |
| Series | TEL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Similar Items
ABB / General ElectricTEL134025WL
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136070WL
70A 3 Pole Miniature Circuit Breaker
Description

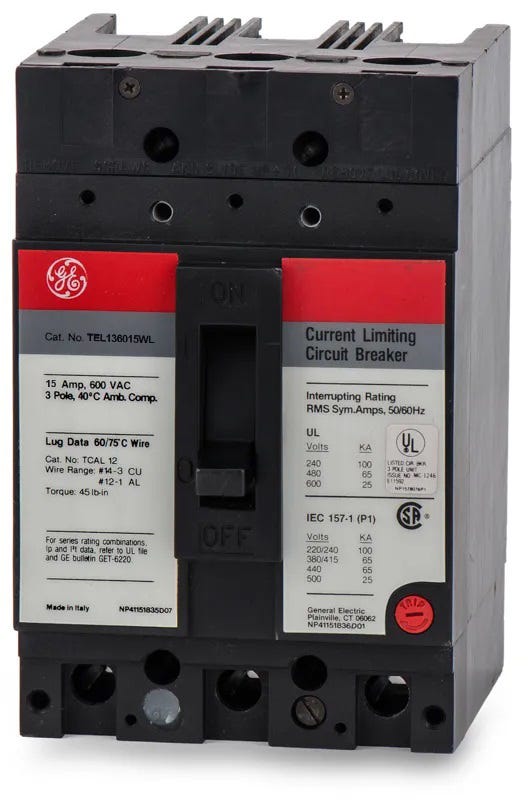

Engineered for demanding industrial environments, the GE TEL136015WL is a 3-pole, 15A current-limiting MCCB. It provides reliable thermal-magnetic protection for heavy-duty electrical systems. This unit-mount E-frame breaker installs into GE A-Series panelboards, switchboards, and motor control centers. It serves as a direct replacement for TED136015WL and THED136015WL units. Rated at 100kAIC at 240V, it restricts let-through energy to safeguard downstream equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136015WL-R |
| Series | TEL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Product FAQs
8 answersWhat equipment is the TEL136015WL compatible with?
This E-frame circuit breaker is designed for use in GE A-Series panelboards, individual enclosures, switchboards, and motor control centers.
What does the "WL" suffix mean on the TEL136015WL catalog number?
The "WL" suffix indicates that the breaker includes factory-installed copper/aluminum lugs on both the line and load sides.
What wire sizes are accepted by the lugs on the TEL136015WL?
The included lugs accept 14 to 3 AWG copper (Cu) conductors or 12 to 1 AWG aluminum (Al) conductors.
Can the TEL136015WL be used in DC applications?
Yes, this thermal-magnetic breaker is rated for DC systems, providing up to 10kA interrupting capacity at both 250VDC and 500VDC.
Is the TEL136015WL a current-limiting circuit breaker?
Yes, the TEL series is a current-limiting E-frame molded case circuit breaker designed to restrict let-through energy during a fault to protect downstream equipment.
How is the TEL136015WL mounted?
It is a unit-mount, feed-thru circuit breaker. It bolts directly to the backpan or enclosure rather than plugging onto a busbar.
What frame size is the TEL136015WL?
It belongs to the GE E-Frame family of molded case circuit breakers.
What type of trip unit does the TEL136015WL feature?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions.
