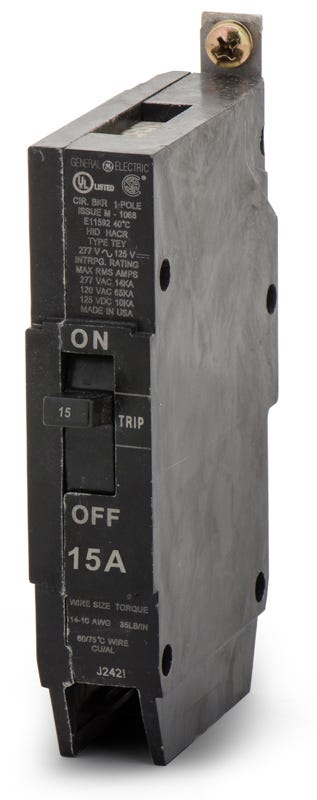

ABB / General Electric TEY115 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
ABB / General Electric TEY115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY115 |
| Series | TEY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEY115 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY115-R |
| Series | TEY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Description
Built for commercial distribution, the GE TEY115 is a 1-pole, 15A bolt-on molded case circuit breaker from the Q-Line family. It utilizes fixed thermal-magnetic trip technology to deliver dependable long-time and instantaneous (LI) protection for branch circuits. Designed for seamless integration, this breaker bolts into GE A-Series panelboards. It carries a 14kAIC rating at 277VAC and 65kAIC at 120VAC. The unit is fully HACR, HID, and SWD rated for versatile lighting and motor loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY115 |
| Series | TEY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
4 answersWhy is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, TEY series breakers may arrive with either GE or ABB branding. They are the exact same product, manufactured to the same specifications, and are fully interchangeable in A-Series panels.
Is the TEY115 rated for switching duty and high-intensity discharge lighting?
Yes, this 15-amp breaker carries SWD (Switching Duty) and HID (High-Intensity Discharge) ratings, making it suitable for controlling fluorescent and HID lighting circuits. It is also HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the TEY115 be used in reverse-feed applications?
Yes, this breaker is suitable for reverse-feed applications. It can be back-fed if required by your specific panelboard or system configuration.
Can the trip settings on the TEY115 be adjusted in the field?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time overload and instantaneous short-circuit settings are factory calibrated and cannot be modified.
