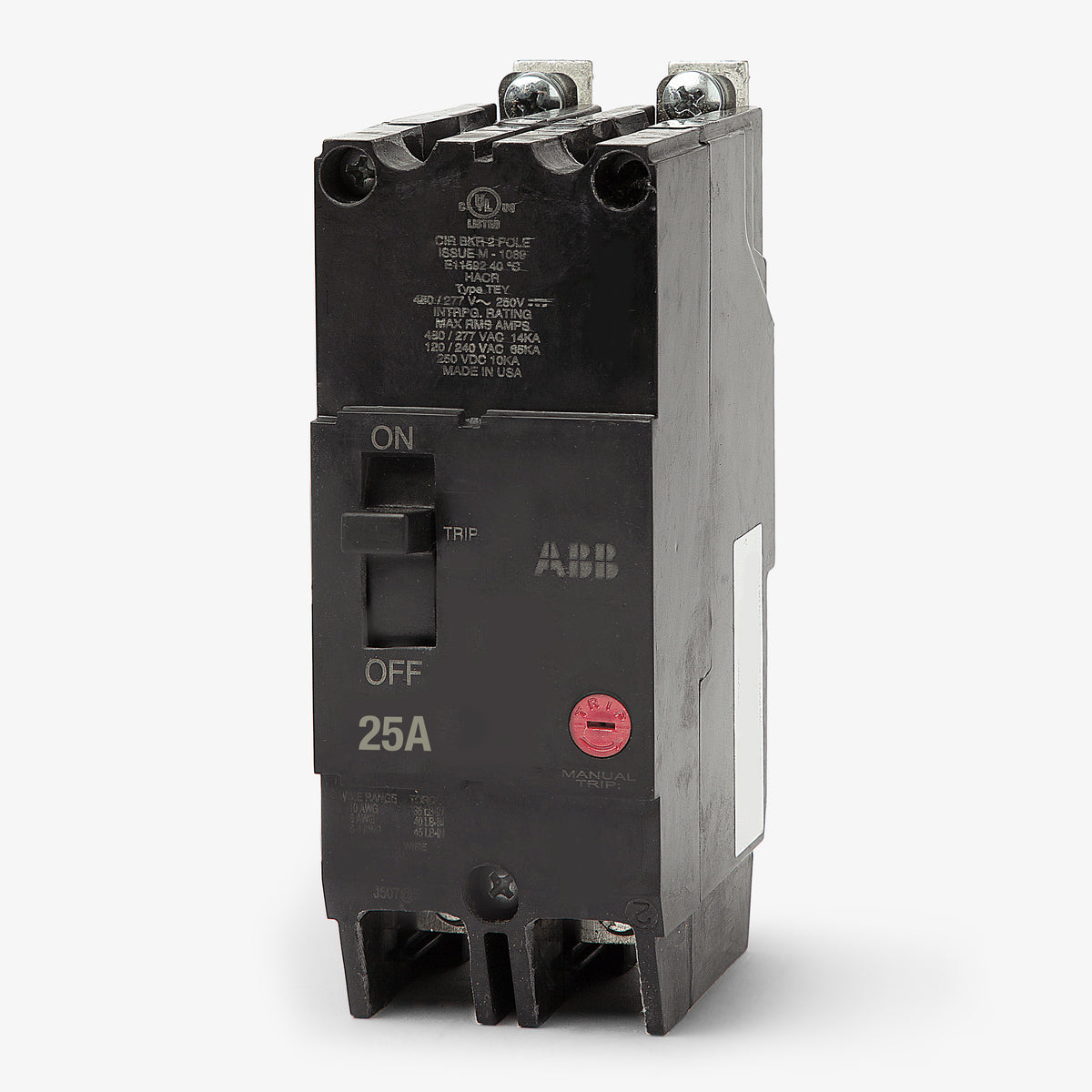

ABB / General Electric TEY225 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Quantity
ABB / General Electric TEY225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY225 |
| Series | TEY |
| Amperage | 25A |
| Poles | 2 |

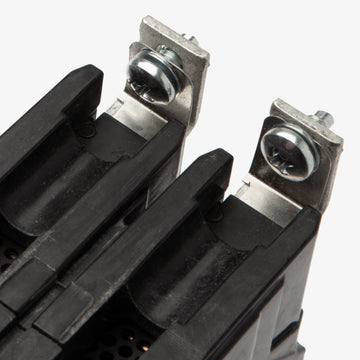

| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|

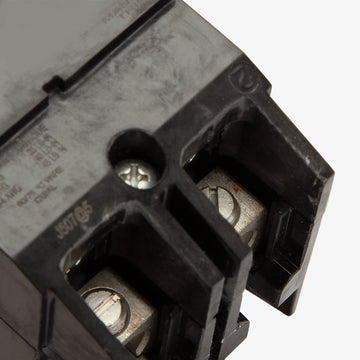

| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Auxiliary Switch (AS1A/AS1B), Shunt Trip (ST12) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEY225 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY225-R |
| Series | TEY |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Auxiliary Switch (AS1A/AS1B), Shunt Trip (ST12) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Description
Part of the Q-Line family, the GE TEY225 is a 2-pole, 25A breaker. It utilizes fixed thermal-magnetic trip units to deliver consistent protection against electrical faults in commercial systems. Designed for GE A-Series lighting panelboards, this device features a bolt-on mounting style for a stable connection. It accepts 14-10 AWG copper or 12-10 AWG aluminum wire. Rated 14 kAIC at 480Y/277V, it ensures safety in demanding environments. It is HACR and HID rated for HVAC and lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY225 |
| Series | TEY |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock |
|---|---|
| Accessories | Auxiliary Switch (AS1A/AS1B), Shunt Trip (ST12) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersCan I install the TEY225 in a standard GE Powermark residential load center?
No, the TEY225 features a bolt-on mounting style designed exclusively for GE A-Series lighting panelboards. It will not fit in Powermark load centers, which require plug-in Q-Line breakers like the THQL series.
What is the difference between the TEY225 and the TEYF225?
Both are 25A, 2-pole bolt-on breakers for GE A-Series panelboards, but they have different interrupting capacities. The standard TEY225 is rated at 14kAIC at 480Y/277VAC, while the TEYF225 offers a higher interrupting capacity of 18kAIC at the same voltage.
Is the TEY225 suitable for HVAC equipment circuits?
Yes, the TEY225 is UL Listed as HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Does the TEY225 feature a common trip mechanism?
Yes, as a 2-pole breaker, the TEY225 includes an internal common trip bar that disconnects both poles simultaneously during an overload or short circuit, preventing single-phasing of connected equipment.
How much panel space does the TEY225 require?
The TEY225 requires two spaces in a GE A-Series panelboard. It measures 1 inch wide per pole, resulting in a total breaker width of 2 inches.
