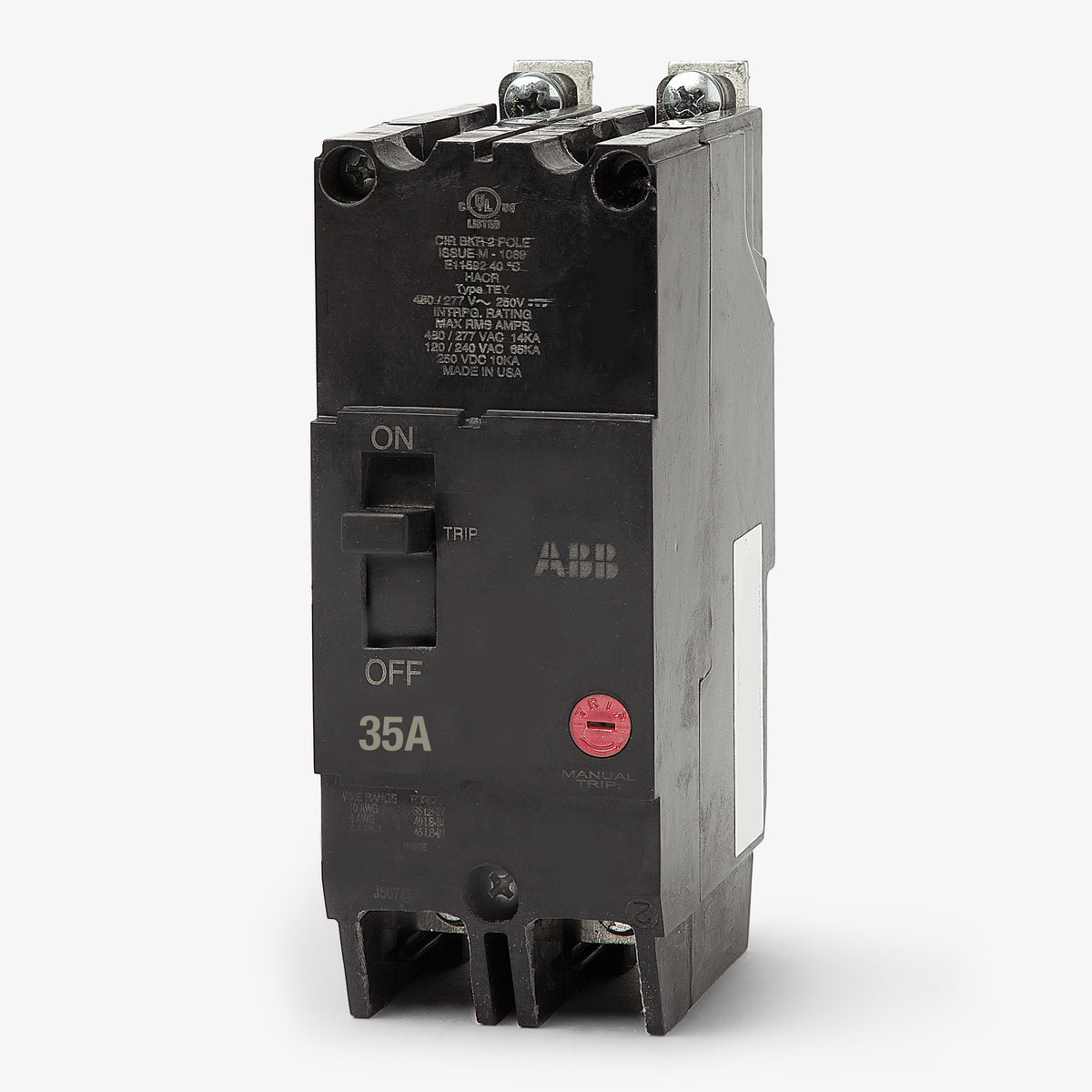

ABB / General Electric TEY235 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Quantity
ABB / General Electric TEY235 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description

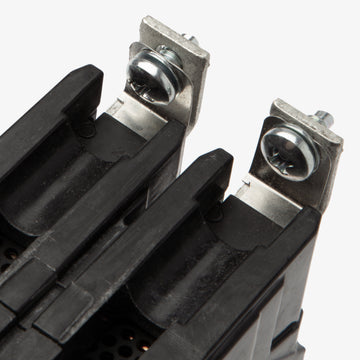

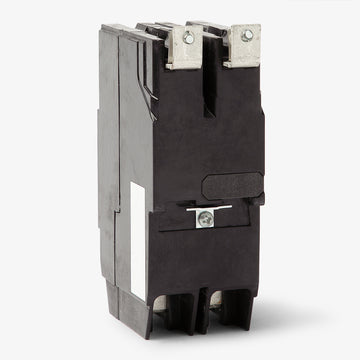

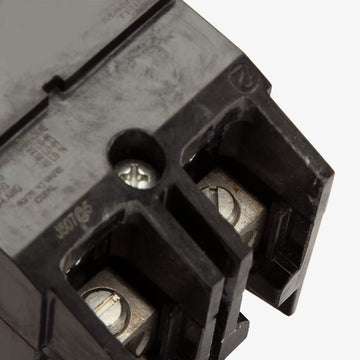

Providing multi-phase protection, the TEY235 is a 2-pole, 35A molded case circuit breaker from GE. It is built to handle the rigorous demands of commercial electrical environments. This unit features a sturdy bolt-on mounting design, ensuring a reliable connection within GE A-Series panelboards. It occupies a 2-inch wide space and includes line and load lugs for 10-4 AWG wire. Operating at up to 480Y/277VAC, it offers a 14 kAIC rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY235 |
| Series | TEY |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEY235 circuit breaker?
The TEY235 is a bolt-on breaker designed specifically for installation in GE A-Series lighting panelboards.
Are ABB and General Electric TEY235 breakers the same?
Yes. Following ABB's acquisition of GE Industrial Solutions, TEY series breakers are manufactured under both brand names. They are identical in form, fit, and function.
Can the TEY235 circuit breaker be reverse fed?
Yes, GE TEY series molded case circuit breakers are suitable for reverse feed applications. They do not have line and load markings that restrict the direction of power flow.
What does the 277/480VAC slash rating indicate for the TEY235?
The slash rating means this breaker is designed for use on solidly grounded WYE electrical systems where the phase-to-ground voltage does not exceed 277V. It is not approved for ungrounded or corner-grounded Delta systems.
Is the TEY235 rated for direct current (DC) systems?
Yes, in addition to its AC ratings, the TEY235 is rated for 250VDC with a 10kAIC interrupting capacity. This allows it to be used in compatible DC control panels and battery applications.
Can the trip settings on the TEY235 be adjusted in the field?
No, the TEY235 features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous (LI) trip functions are factory set and cannot be modified.
