ABB / General Electric TEY340ST12 Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
ABB / General Electric
TEY340ST12
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY340ST12
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

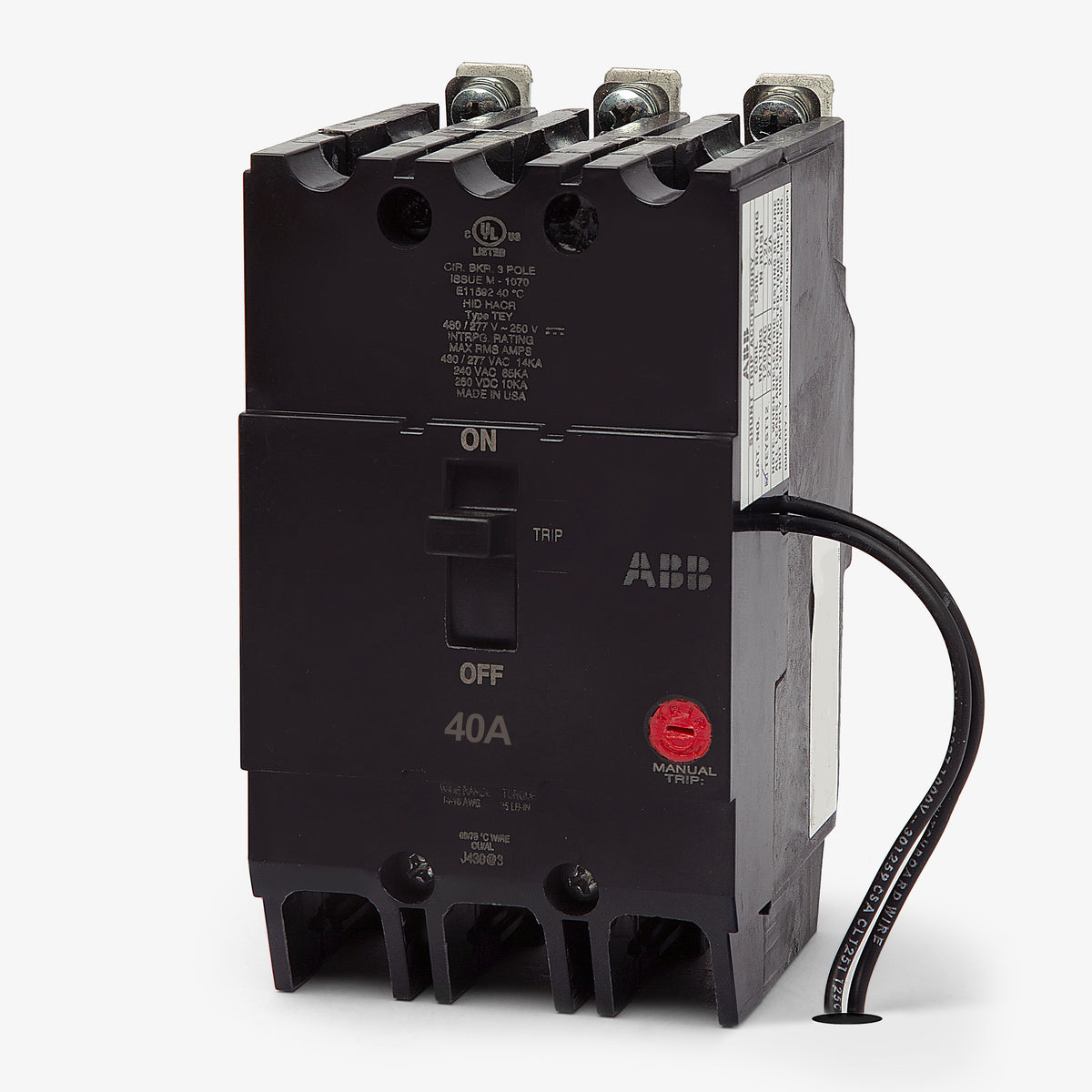

ABB / General Electric TEY340ST12 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEY330ST12
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY325ST12
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY360ST12
60A 3 Pole Miniature Circuit Breaker
Description
Part of GE's Q-Line series, the TEY340ST12 is a 3-pole, 40A miniature circuit breaker designed for advanced commercial applications. It comes equipped with a factory-installed shunt trip (120-277VAC), allowing the breaker to be tripped remotely for emergency shutdowns. Designed for seamless integration, this breaker mounts into GE A-Series panelboards using a reliable bolt-on connection. Delivering 14kAIC at 480Y/277VAC, it utilizes fixed thermal-magnetic trip technology and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY340ST12 |
| Series | TEY |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip (120-277VAC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the TEY340ST12 circuit breaker?
This Q-Line TEY frame breaker mounts directly into GE A-Series panelboards using a bolt-on connection.
What does the ST12 suffix mean on the TEY340ST12 catalog number?
The ST12 suffix indicates the breaker comes with a factory-installed shunt trip accessory. It operates on a 120 to 277VAC control voltage, allowing the breaker to be opened remotely for emergency shutdowns or automated control applications.

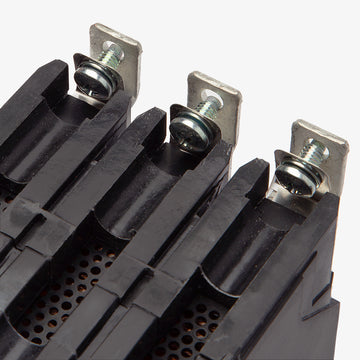

What wire gauge and material can be used with the TEY340ST12 lugs?
The factory lugs accept 10 to 4 AWG copper (Cu) wire or 8 to 4 AWG aluminum (Al) wire.
Is the TEY340ST12 rated for use on DC systems?
Yes, in addition to its AC ratings (14kAIC at 480Y/277VAC and 65kAIC at 120/240VAC), this breaker is rated for 10kAIC at 250VDC.
Can the trip settings on the TEY340ST12 be adjusted in the field?
No, this breaker features a fixed thermal magnetic trip unit with non-interchangeable long-time and instantaneous (LI) functions.
Why might my TEY340ST12 breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the TEY340ST12 may feature either ABB or GE branding. Both versions are manufactured to the exact same specifications and are fully interchangeable.
