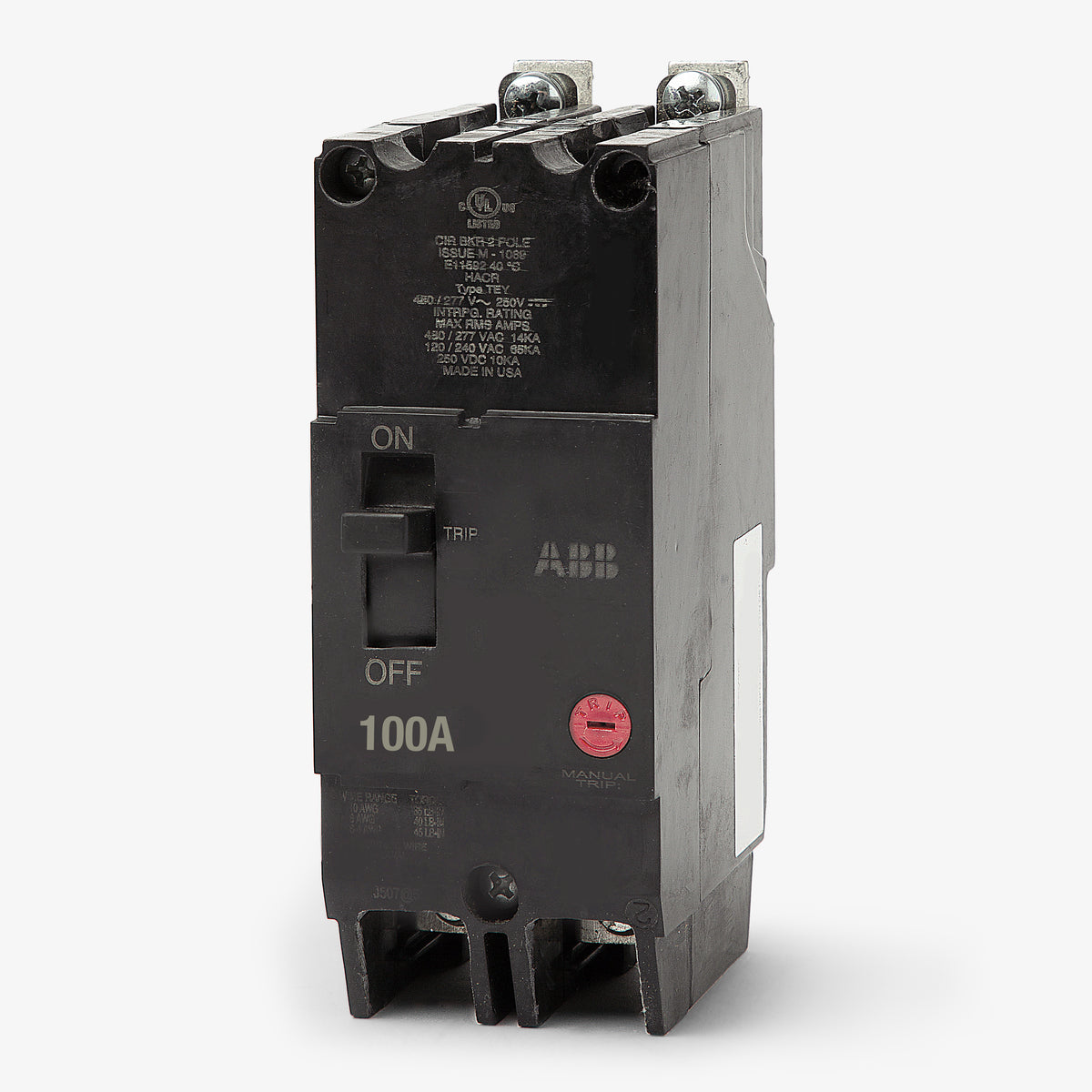

ABB / General Electric TEYF2100 Miniature Circuit Breaker
- 100A
- 2 Pole

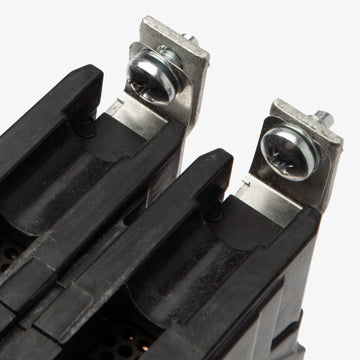

- Bolt-On
ABB / General Electric
TEYF2100
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYF2100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Manufactured by GE, this 100A miniature circuit breaker provides robust protection for commercial and industrial systems. It is engineered for A-Series lighting panelboards. The bolt-on design ensures a secure connection within compatible enclosures. It serves as an alternative to TEYD2100B, TEYH2100B, and TEYL2100B models when different fault ratings are required. Featuring thermal-magnetic trip technology, it delivers an 18kAIC rating at 480Y/277VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEYF |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the TEYF2100 circuit breaker?
This breaker is designed for use in ABB and GE A-Series lighting panelboards. It features a bolt-on mounting base for a secure connection to the panel bus.
What is the difference between a standard TEY and the TEYF2100 breaker?
The F in the TEYF frame designates a higher interrupting capacity. While a standard 100A TEY breaker is rated for 14kAIC at 480Y/277VAC, the TEYF2100 provides an 18kAIC rating at the same voltage.
What are the recommended wire sizes and torque specifications for the TEYF2100?

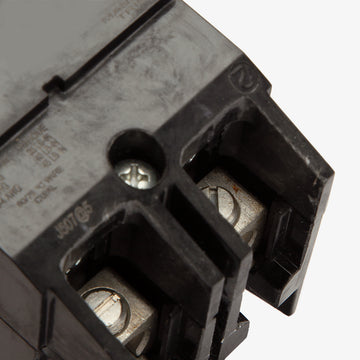

The lugs accept 4 AWG to 1/0 AWG copper or aluminum wire. When terminating, tighten 4 AWG wire to 45 in-lbs, and 3 AWG to 1/0 AWG wire to 50 in-lbs.
Can the TEYF2100 be used in place of TEYD, TEYH, or TEYL breakers?
Yes, the TEYF2100 shares the same physical footprint and can serve as an alternative to TEYD2100B, TEYH2100B, and TEYL2100B models, provided the 18kAIC fault rating meets your system requirements.
What does the LI trip function on this breaker indicate?
The LI designation means the thermal-magnetic trip unit includes both Long-Time (thermal) protection against sustained overloads and Instantaneous (magnetic) protection against short circuits. Both settings are fixed on this model.
Can this breaker be used in DC applications?
Yes, the TEYF2100 is rated for up to 250VDC with a 10kAIC interrupting rating, making it suitable for specific ungrounded battery or direct current systems.
