ABB / General Electric TEYF220 Miniature Circuit Breaker
- 20A
- 2 Pole

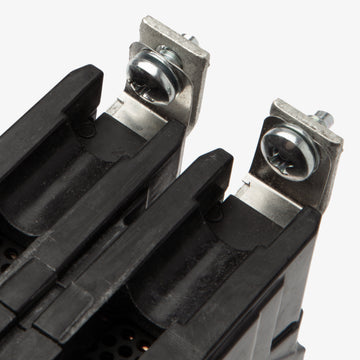

- Bolt-On
ABB / General Electric
TEYF220
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

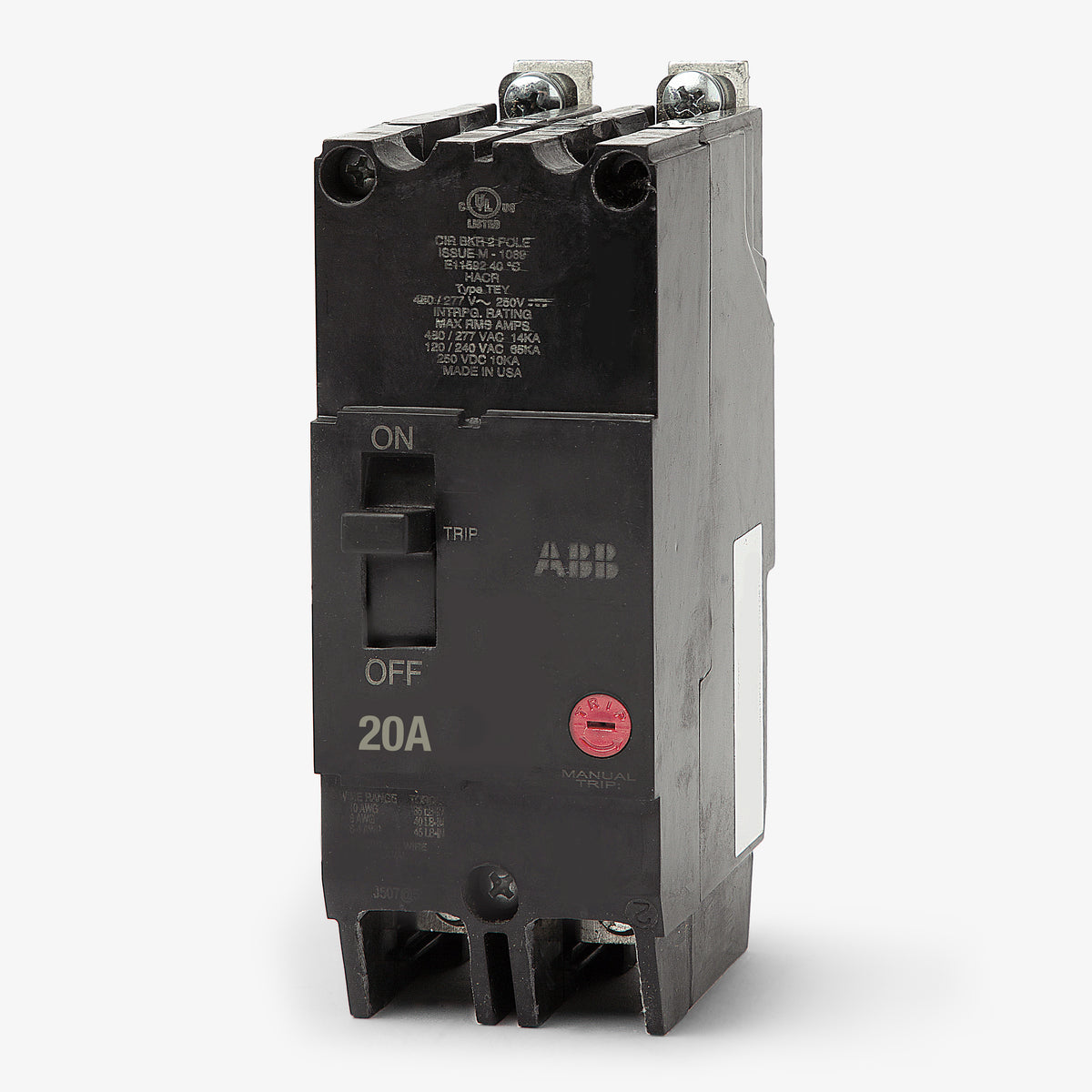

ABB / General Electric TEYF220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Designed for commercial lighting panelboards, this 20A GE miniature circuit breaker delivers reliable power distribution. It is built to operate within A-Series enclosures. The breaker features a bolt-on mounting style for stable connections. Facility managers can use this unit in place of TEYD220, TEYH220, and TEYL220 models when adjusting for different fault current levels. Equipped with thermal-magnetic protection, it offers an 18kAIC rating at 480Y/277VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|

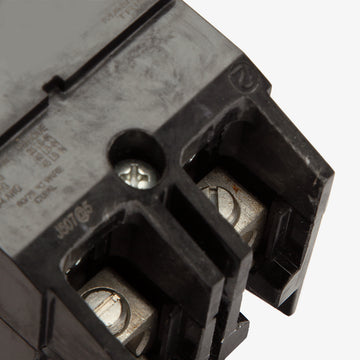

| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the TEYF220 circuit breaker?
The TEYF220 is a bolt-on breaker specifically designed for GE A-Series lighting panelboards. It is not compatible with standard Q-Line residential load centers that require plug-in THQL breakers.
What is the difference between the GE TEY220 and the TEYF220?
Both are 20A, 2-pole breakers for GE A-Series panels, but they differ in short circuit protection. The TEYF220 has a higher interrupting rating of 18kAIC at 480Y/277VAC, whereas the standard TEY220 is rated at 14kAIC. The TEYF220 can safely replace a TEY220 where higher fault protection is required.
Is the TEYF220 suitable for switching commercial lighting loads?
Yes, the TEYF220 carries SWD (Switching Duty) and HID (High-Intensity Discharge) ratings, meaning it is tested and approved to handle the inrush currents associated with commercial lighting circuits. It is also HACR rated for heating, air conditioning, and refrigeration equipment.
Can the TEYF220 be used outside of a panelboard?
Yes, while it is primarily designed to bolt directly onto the bus of a GE A-Series panelboard, it can be used in standalone applications by utilizing a TEY3B mounting base for lug-to-lug connections.
How much panel space does the TEYF220 require?
The TEYF frame is one inch wide per pole. As a 2-pole breaker, the TEYF220 requires two inches of space in a compatible GE A-Series panelboard.
