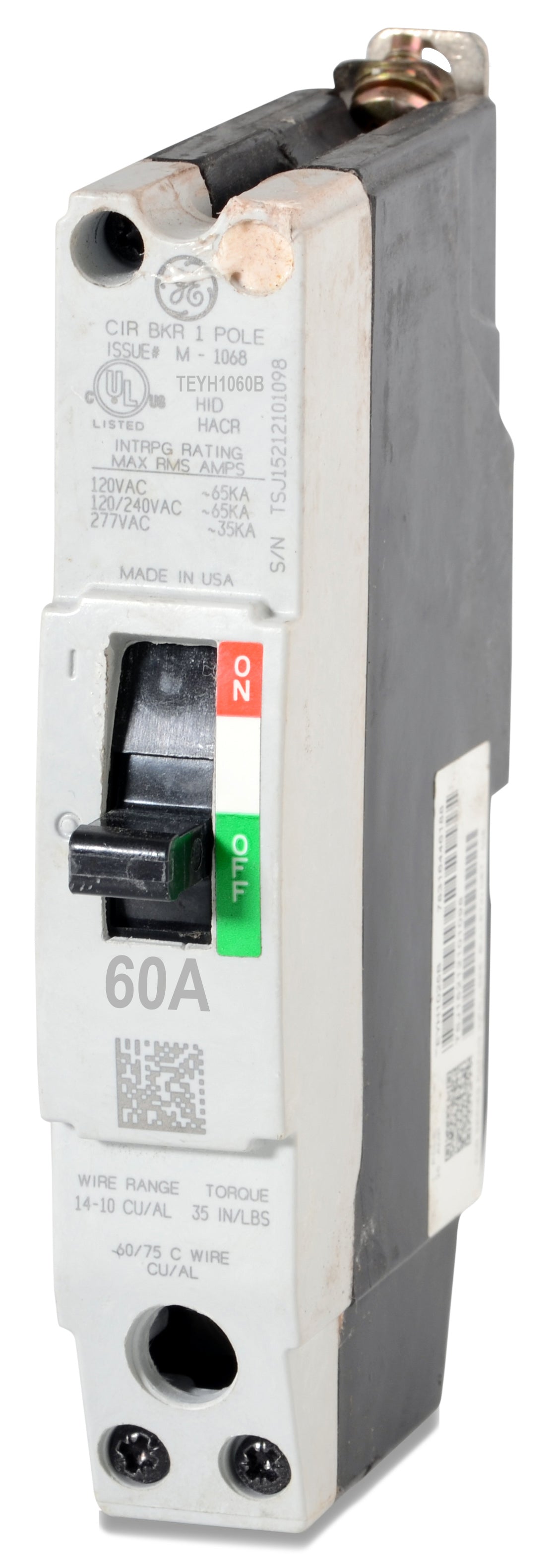

ABB / General Electric TEYH1060B Miniature Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYH1060B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYH1060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYH1060B - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYH1030B
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH2060B
60A 2 Pole Miniature Circuit Breaker
Description
Built for heavy-duty distribution, the GE TEYH1060B is a 60A thermal-magnetic breaker designed to safeguard commercial branch circuits. It utilizes a non-interchangeable trip unit with fixed long-time and instantaneous functions. The breaker fastens into GE A-Series lighting panelboards, utilizing a bolt-on mounting style that ensures a stable connection. With an interrupting capacity of 65 kAIC at 120VAC and 35 kAIC at 277VAC, this HACR-rated component provides excellent fault clearing.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYH1060B |
| Series | TEYH |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock, Handle Tie, Mounting Base |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panelboards are compatible with the TEYH1060B circuit breaker?
This breaker is designed specifically for GE A-Series lighting panelboards. It fits bolt-on interiors, including AS, AE, AD, and AL panel types configured for TEY frame branch breakers.
Can the 1-pole TEYH1060B be used in 480V electrical systems?
Yes, it is rated for 277VAC, which makes it suitable for branch circuit protection on grounded 480Y/277V AC systems. It delivers a 35kAIC interrupting rating at this voltage.
What is the difference between the standard TEY1060B and the TEYH1060B?
The letter H in the TEYH series designates a high interrupting capacity. The standard TEY1060B is rated at 14kAIC at 277V, whereas the TEYH1060B provides a 35kAIC rating at 277V for systems with higher available fault currents.
What wire sizes are accepted by the lugs on the TEYH1060B?
The included load-side lugs accept 10 AWG to 4 AWG copper or aluminum conductors. Always verify the appropriate wire size based on the 60A rating and local electrical codes.
How does the TEYH1060B mount into the panelboard?
It utilizes a bolt-on mounting connection. This requires the breaker to be mechanically bolted to the panelboard bus, providing a secure and vibration-resistant connection typical in commercial and industrial applications.
Is the TEYL1060B a direct replacement for the TEYH1060B?
Yes, the TEYL1060B shares the exact same physical dimensions, bolt-on mounting, and 60A rating. The TEYL simply offers a higher interrupting capacity (65kAIC at 277V) and can safely be used in place of a TEYH1060B.
Does the TEYH1060B provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker. It provides fixed long-time and instantaneous (LI) trip functions for overcurrent and short-circuit protection, but it does not include GFCI or AFCI circuitry.
Is the TEYH1060B rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this 1-pole breaker is rated for use in 125VDC systems, where it provides a 10kAIC interrupting capacity.
