General Electric TEYH3030B 3 Pole Circuit Breaker

General Electric TEYH3030B 3 Pole Circuit Breaker

New

$634.20 In stock

Quantity

Description

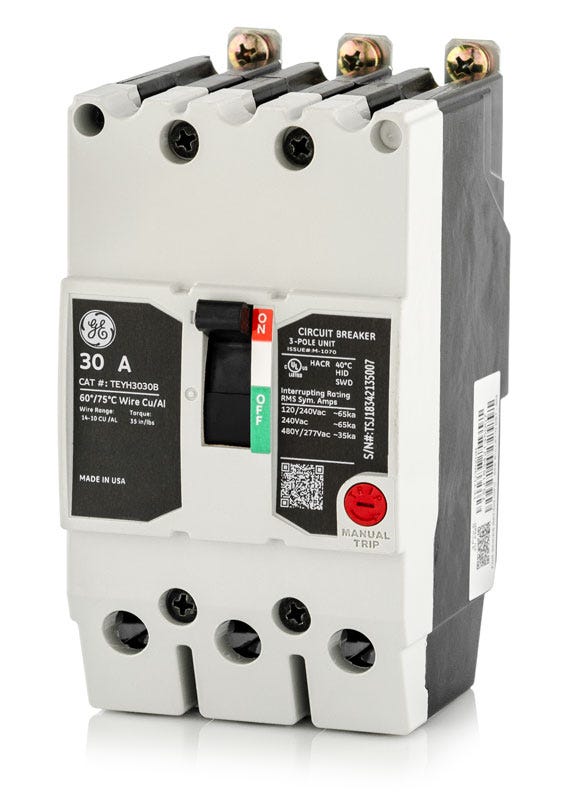

General Electric TEYH3030B 3 Pole Circuit Breaker

The General Electric TEYH3030B is a 3-pole molded case circuit breaker that provides thermal magnetic protection. It features high interrupting capacity and has an AIC rating of 35 kilo-Amps at 480 VAC, 65 kilo-Amps at 240 VAC, and 65 kilo-Amps at 120/240 VAC. Designed for easy installation, it supports bolt-on mounting and has load side lug terminal connection. This circuit breaker is one-inch wide per pole and can withstand temperature of 40 deg C. It has a current rating of 30 amps and a voltage rating of 277/480 VAC. It has non-interchangeable trip with long-time and instantaneous functions. This GE TEYH3030B 3-phase circuit breaker consists of a Quick-make / Quick-break mechanism, common trip bar, and easily visible trip indication for reliability and safety.

Specifications

Brand General Electric
Series TEYH
Amperage 30
Voltage 480 VAC
Poles 3
Phase 3
Mounting Type Bolt On Panelboard
Interrupting Rating 35kA
Frame Type 125A/TEY
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Lug
Length (in) 3
Width (in) 3
Height (in) 5.2
For Use With GE AS lighting panels
Standards UL Listed, cUL Listed
Temperature Rating 40°C
Circuit Breaker Type Molded Case
Max Wire Size 4 AWG
Min Wire Size 10 AWG
Voltage Protection Rating 480V
Upc 783164462142
Gtin 783164462142
