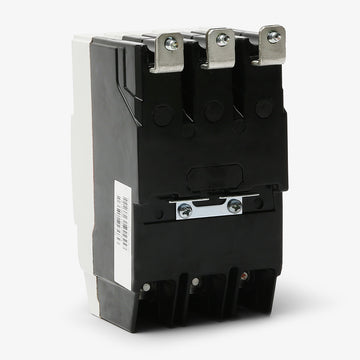

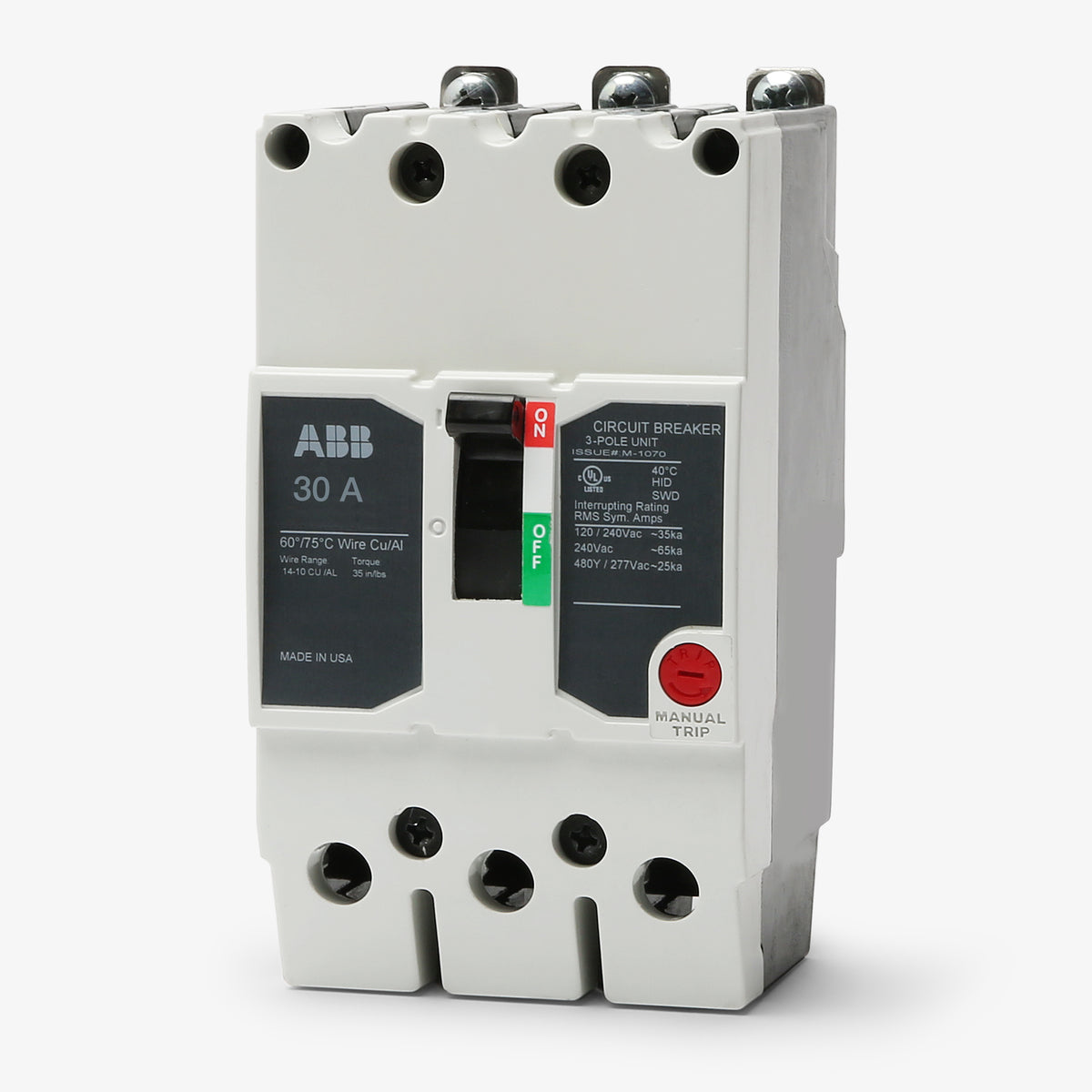

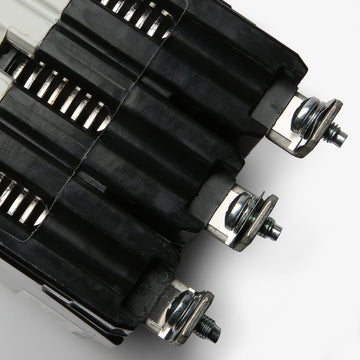

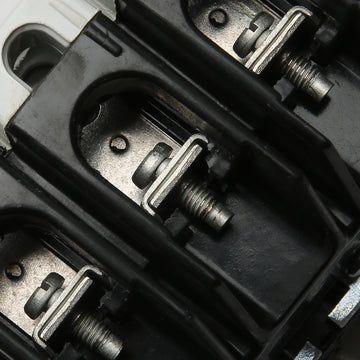

ABB TEYH3030B Circuit Breaker
- 30
- 3 Pole
- Bolt-On
ABB
TEYH3030B
Circuit Breaker
Brand
ABB
SKU
TEYH3030B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB TEYH3030B 3 Pole Circuit Breaker
New
Quantity
Quantity
ABB TEYH3030B 3 Pole Circuit Breaker
New
Quantity
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB TEYH3030B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYH3025B
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH3020B
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH3045B
45A 3 Pole Miniature Circuit Breaker
Description
ABB TEYH3030B 3 Pole Circuit Breaker
The ABB TEYH3030B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 480/277V. It has an interrupting rating of 35kAIC at 480V. The TEYH3030B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Mounting Base |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the TEYH3030B circuit breaker?
This bolt-on breaker is specifically designed for installation in GE A-Series lighting panelboards.
What does the H in the TEYH3030B part number signify?
The H designates a higher interrupting capacity tier within the TEY frame family. The TEYH3030B delivers a 35kAIC rating at 480/277VAC, which is higher than standard TEY or TEYD breakers.
Why is the TEYH3030B listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Q-Line breakers like the TEYH3030B may arrive with either ABB or GE branding, but they are the exact same component and are fully interchangeable.
How does the TEYH3030B connect to the panelboard bus?
It utilizes a bolt-on connection type, providing a secure, vibration-resistant mechanical and electrical connection to the A-Series panelboard bus.
Are the trip settings on the TEYH3030B adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. The Long-Time and Instantaneous (LI) protection settings are factory calibrated and cannot be adjusted in the field.
Can the TEYH3030B be used in DC voltage applications?
Yes, in addition to its standard AC ratings, this breaker is rated for 250VDC applications with a 10kA interrupting capacity.
