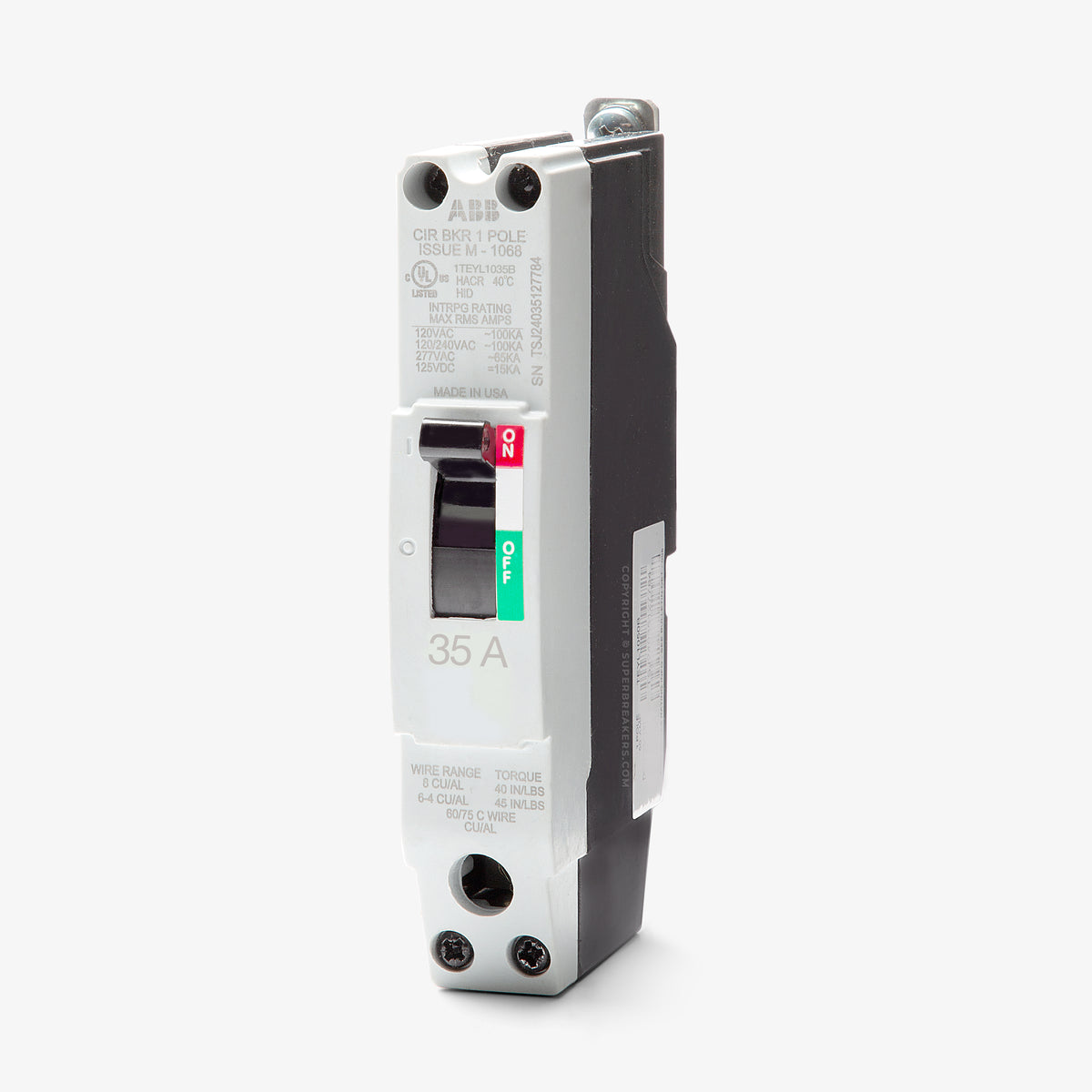

ABB / General Electric TEYL1035B Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Quantity
ABB / General Electric TEYL1035B - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Engineered for demanding electrical loads, this 35A miniature circuit breaker delivers precise thermal-magnetic protection. It is a key component for commercial power distribution systems. This unit mounts into GE A-Series panelboards using a reliable bolt-on connection. The integrated load side lugs are designed to accept 10-4 AWG copper wiring. Rated for 65kAIC at 277VAC, the breaker provides exceptional fault clearing. It is HACR and HID rated, ensuring safe operation for HVAC circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the TEYL1035B circuit breaker?
This bolt-on miniature breaker is designed specifically for installation in GE A-Series lighting panels and distribution boards.
What are the accepted wire sizes for the TEYL1035B terminals?
The factory-installed lugs accept 10 to 4 AWG copper (Cu) conductors or 8 to 4 AWG aluminum (Al) conductors.
How does the interrupting capacity scale across different voltage applications?
The breaker provides a 100kAIC rating at 120VAC and 120/240VAC. When applied at 277VAC or 277/480VAC, the interrupting capacity is 65kAIC. It also carries a 15kAIC rating for 125VDC systems.

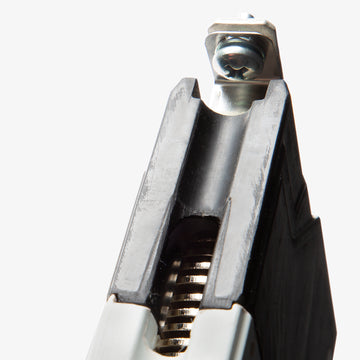

How is the TEYL1035B secured inside the panelboard?
As a bolt-on breaker in the Q-Line family, it bolts directly to the busbar of compatible A-Series panelboards, ensuring a secure and reliable electrical connection.
What type of trip unit does this breaker utilize?
It features a fixed thermal-magnetic trip unit that provides standard long-time (thermal) overload protection and instantaneous (magnetic) short-circuit protection.
