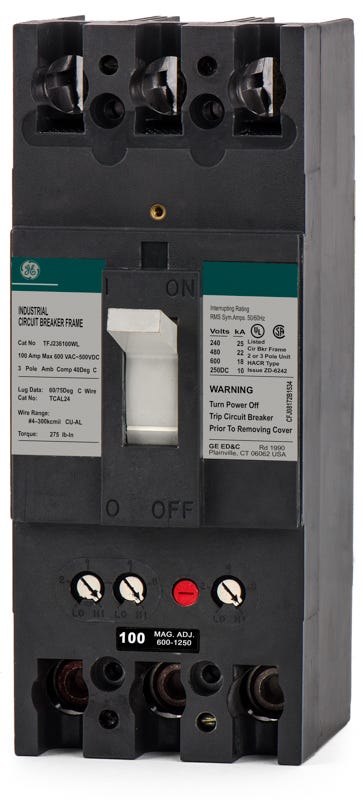

ABB / General Electric TFJ236100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
TFJ236100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236100WL |
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236100WL-R |
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236175WL
175A 3 Pole Molded Case Circuit Breaker
Description
The TFJ236100WL is a 100A, 3-pole molded case circuit breaker from GE's F-Frame family. Built for commercial and industrial environments, it delivers consistent thermal-magnetic protection. This unit mount breaker is designed for individual enclosures and standalone control panels. It includes standard line and load lugs, accommodating 4 AWG to 300 kcmil wire for straightforward integration.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236100WL-R |
| Series | TFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards and equipment are compatible with the TFJ236100WL circuit breaker?
This F-Frame breaker is designed to integrate into GE A-Series and Spectra Series panelboards, as well as commercial switchboards and motor control centers. It can also be installed in individual enclosures using the included line and load lugs.
What frame size does the TFJ236100WL belong to?
This breaker is part of the legacy GE F225 line, commonly referred to as an F-Frame molded case circuit breaker. It shares the same physical footprint as other TFJ, TFK, and THFK breakers in this frame family.
Is the TFJ236100WL manufactured by GE or ABB?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this F225 line circuit breaker may arrive with either ABB or General Electric branding, but the physical dimensions, fit, and technical specifications remain identical.
What does the WL suffix indicate on the TFJ236100WL catalog number?
The WL suffix designates that the circuit breaker is supplied with factory-installed line and load lugs, making it ready for unit mounting or individual enclosure installation.
What wire sizes are accepted by the lugs on the TFJ236100WL?
The factory-installed line and load lugs on this breaker accommodate aluminum or copper wire ranging from 4 AWG up to 300 kcmil.
How is the trip unit configured on this 100A breaker?
The TFJ236100WL features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection. The magnetic pickup can be adjusted in the field to coordinate with other protective devices.
Can the TFJ236100WL be used in reverse-feed applications?
Yes, this breaker features a non-interchangeable thermal-magnetic trip unit that is suitable for reverse-fed applications in commercial and industrial power distribution systems.
