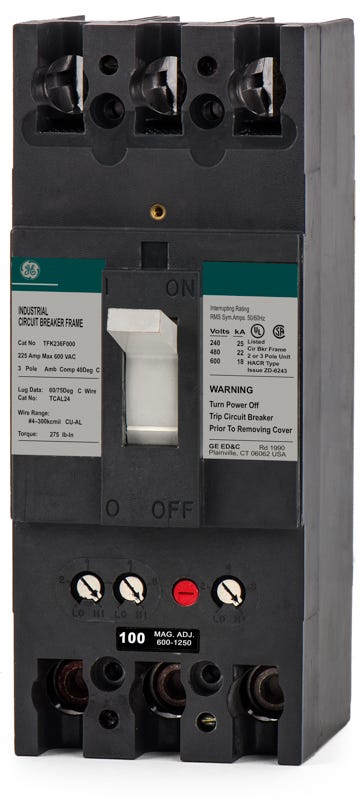

ABB / General Electric TFK236100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
TFK236100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFK236100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236100WL |
| Series | TFK |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Quantity
ABB / General Electric TFK236100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236100WL-R |
| Series | TFK |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTFK236150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236200WL
200A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile power distribution, the GE TFK236100WL is a 3-pole, 100A unit mount molded case circuit breaker. It includes line and load lugs for immediate wire termination. This F-Frame breaker mounts into GE A-Series panelboards and enclosures. It serves legacy systems and can be upgraded to the Tmax XT4 platform using a retrofit kit. It features an interchangeable thermal magnetic trip unit with adjustable magnetic settings. The breaker is HACR rated and delivers 22kAIC at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236100WL-R |
| Series | TFK |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat does the "WL" suffix indicate in the TFK236100WL catalog number?
The "WL" suffix designates that the circuit breaker comes factory-equipped with both line-side and load-side lug terminals, ready for wire termination.
Is the trip unit on the TFK236100WL fixed or interchangeable?
This breaker features an interchangeable thermal-magnetic trip unit. This design allows electricians to replace or upgrade the trip unit without removing the entire F-Frame breaker from the panel.
What are the adjustable magnetic trip settings for this 100A breaker?
While the thermal (long-time) trip is fixed at 100 amps, the magnetic (instantaneous) trip function is adjustable. The magnetic trip range for this specific model is 600A on the low setting to 1250A on the high setting.
Can the TFK236100WL be used in reverse-feed applications?
No. According to manufacturer specifications, TFK and THFK frame breakers equipped with interchangeable trip units are not suitable for reverse-feed applications.
What equipment is compatible with this F-Frame breaker?
The TFK236100WL is a legacy F-Frame breaker designed to mount into GE A-Series panelboards, switchboards, and motor control centers. It is also compatible with standard enclosures that accept a 225A maximum frame size.
