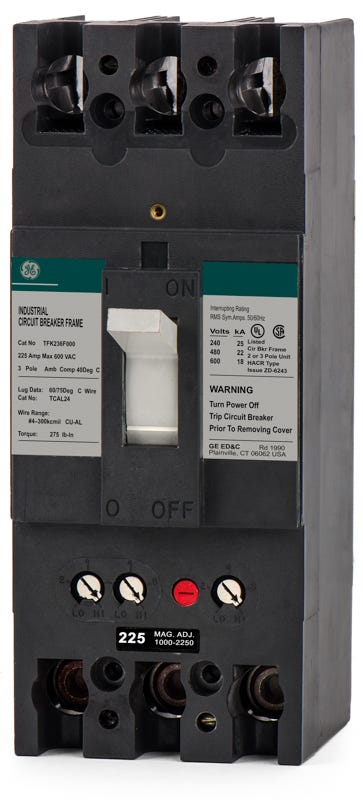

ABB / General Electric TFK236225WL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
ABB / General Electric
TFK236225WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236225WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFK236225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236225WL |
| Series | TFK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Quantity
ABB / General Electric TFK236225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236225WL-R |
| Series | TFK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTFK236175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236125WL
125A 3 Pole Molded Case Circuit Breaker
Description
A versatile solution for industrial power distribution, the GE TFK236225WL is a 3-pole, 225A unit mount circuit breaker. It delivers reliable thermal magnetic protection for 600VAC and 250VDC applications. Unlike bolt-on variants, this model features line and load lugs for feed-thru wiring in standalone enclosures and Spectra Series switchboards. It serves as a direct cross-reference for TFJ236225WL and THFK236225WL. It provides 22kAIC at 480V and features an interchangeable trip unit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236225WL-R |
| Series | TFK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, GE A-Series Panelboards, Spectra Series Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat does the WL suffix indicate on the TFK236225WL?
The WL suffix signifies that the circuit breaker is factory-equipped with both line and load side lugs, making it ready for feed-thru wiring in standalone enclosures or switchboards.
Can the TFK236225WL replace other GE F-Frame breakers like the TFJ236225WL?
Yes, it shares the same physical F225 line footprint and can serve as a replacement for TFJ236225WL and THFK236225WL models. However, unlike the TFJ series, the TFK236225WL is not suitable for reverse-feed applications.
Is the TFK236225WL suitable for reverse-feed applications?
No, GE TFK and THFK series circuit breakers are not rated for reverse feeding. If your installation requires a reverse-feed configuration, you must use a TFJ series breaker.
Does this breaker feature an interchangeable trip unit?
Yes, the TFK236225WL includes an interchangeable thermal-magnetic trip unit. This allows panel builders to swap the trip unit for different ratings without needing to replace the entire breaker frame.
Is the TFK236225WL rated for HVAC applications?
Yes, all GE TFK series circuit breakers are UL listed as HACR type, making them suitable for heating, air conditioning, and refrigeration applications.
