ABB / General Electric TFL236225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Quantity

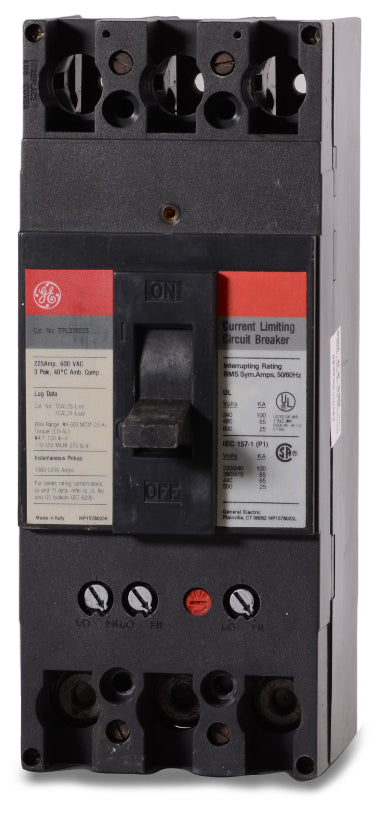

ABB / General Electric TFL236225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy F-Frame series, this 225A molded case circuit breaker delivers robust thermal-magnetic protection for industrial facilities. It features fixed thermal and adjustable magnetic trip settings for precise coordination. Designed for unit mounting, the device installs into GE A-Series panelboards, switchboards, and motor control centers. It serves as a reliable component for existing infrastructure. Rated for 65kAIC at 480VAC, it includes load side lugs and reverse feed capability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFL236225-R |
| Series | TFL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Common Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat equipment is the TFL236225 compatible with?
This F-Frame breaker is designed for use in GE A-Series panelboards, switchboards, and motor control centers.
How is the trip unit configured on this breaker?
It features a thermal-magnetic trip unit with fixed thermal protection for long-time overloads and an adjustable magnetic setting for instantaneous short-circuit protection.
What wire sizes are accepted by the lugs on the TFL236225?
The included lugs accept either copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE F-Frame breakers like the TFL236225 are now manufactured and supported under the ABB brand.
Does this breaker plug into the panel bus?
No, the TFL236225 is a unit-mount, bolt-on breaker that must be bolted directly to the equipment bus or mounting pan.
Can this breaker be used in DC applications?
Yes, the TFL236225 is rated for DC systems up to 250VDC, providing an interrupting capacity of 10kA.
