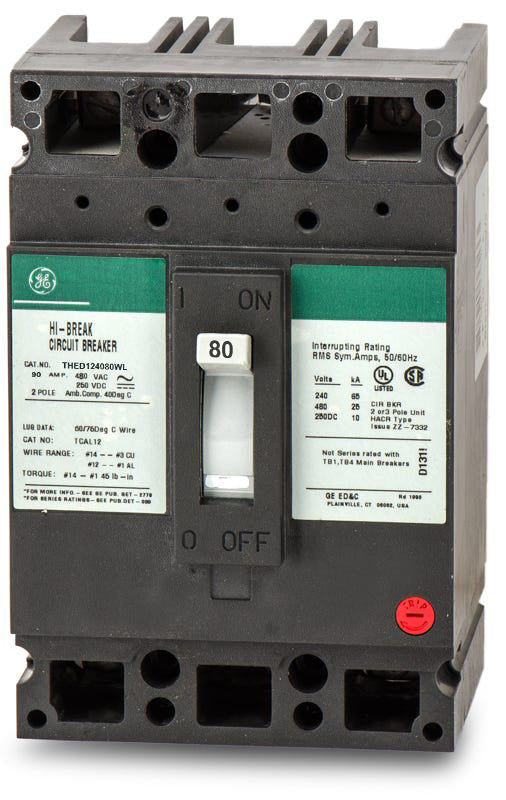

ABB / General Electric THED124080WL Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
ABB / General Electric
THED124080WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124080WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124080WL - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHED124070WL
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124100WL
100A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the legacy E-Frame family, the GE THED124080WL is a 2-pole, 80A molded case circuit breaker. It provides robust thermal-magnetic protection for commercial motor control applications. This unit mount breaker installs into GE enclosures and switchboards. It functions as a high-interrupting upgrade for standard TED124080WL models. Rated for 25kAIC at 480VAC, the breaker features a reverse-feed capable design.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124080WL |
| Series | THED |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 20kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, High Interrupting Capacity |
Product FAQs
7 answersWhat does the "WL" suffix mean on the THED124080WL catalog number?
The "WL" suffix indicates that the circuit breaker includes factory-installed line and load lugs. These lugs accept 3 AWG to 3/0 AWG copper or 1 AWG to 3/0 AWG aluminum wire, eliminating the need to source a separate lug kit.
Can I use the THED124080WL to replace a standard TED124080WL breaker?
Yes. The THED124080WL is the high-interrupting tier of the standard TED124080WL. Both belong to the GE E150 frame family and share the exact same physical dimensions, making the THED a direct, upgraded replacement for existing enclosures and panelboards.
What types of equipment accept the THED124080WL breaker?
This unit-mount E-frame breaker is designed for installation in GE individual enclosures, switchboards, and motor control centers that accommodate bolt-on E150 line breakers.
Can this breaker be used in direct current (DC) systems?
Yes, the THED124080WL is rated for DC applications up to 250VDC, providing a 20kA interrupting capacity for specific direct current installations.
Is the THED124080WL suitable for reverse-feed applications?
Yes, GE E150 line breakers, including the THED124080WL, are designed to be reverse-feed capable.
Is the THED124080WL HACR rated?
Yes, GE THED series breakers 15A and above are HACR rated, making them suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Are the trip settings on the THED124080WL adjustable?
No, this breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection that cannot be modified in the field.
