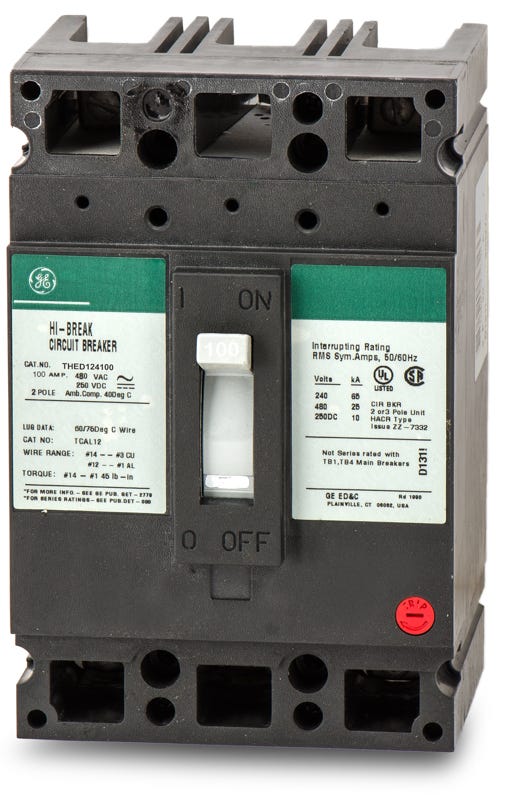

ABB / General Electric THED124100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Quantity
ABB / General Electric THED124100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED124100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124100 |
| Series | THED |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THED124100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124100-R |
| Series | THED |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Engineered to protect commercial distribution systems, the THED124100 provides 100A thermal-magnetic circuit protection. This E-frame breaker handles significant fault currents with a 65kA rating at 240VAC. The device mounts into GE A-Series and Spectra Series panelboards via a sturdy bolt-on connection. Contractors frequently use this model to replace standard-interrupt TED124100 breakers in existing infrastructure. It features a non-interchangeable trip unit and supports reverse feed setups.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124100 |
| Series | THED |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards accept the THED124100 circuit breaker?
This E-frame breaker is designed for bolt-on installation in GE A-Series and GE Spectra Series panelboards.
What is the difference between the GE TED124100 and the THED124100?
The THED124100 features a higher interrupting capacity than the standard TED124100. While they share the same physical dimensions, the THED model is rated for up to 65kAIC at 240VAC and 25kAIC at 480VAC to safely clear higher available fault currents.
Can the THED124100 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, providing an interrupting capacity of 20kAIC.
What wire sizes and materials are accepted by the THED124100 lugs?
The standard lugs accept conductor sizes ranging from 4 AWG to 3/0 AWG and are rated for both copper (Cu) and aluminum (Al) wire.
What are the lug torque specifications for the THED124100?
Torque requirements depend on the wire size used. For 3 AWG through 8 AWG conductors, torque the lugs to 100 in-lbs. For 2 AWG through 3/0 AWG conductors, torque the lugs to 150 in-lbs.
Why is the THED124100 branded as both ABB and General Electric?
ABB acquired GE Industrial Solutions. Legacy GE E-frame breakers are now manufactured by ABB but maintain exact physical and electrical compatibility with existing GE infrastructure.
What does the LI trip function indicate on the THED124100?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits. Both trip points are fixed on this specific model.
