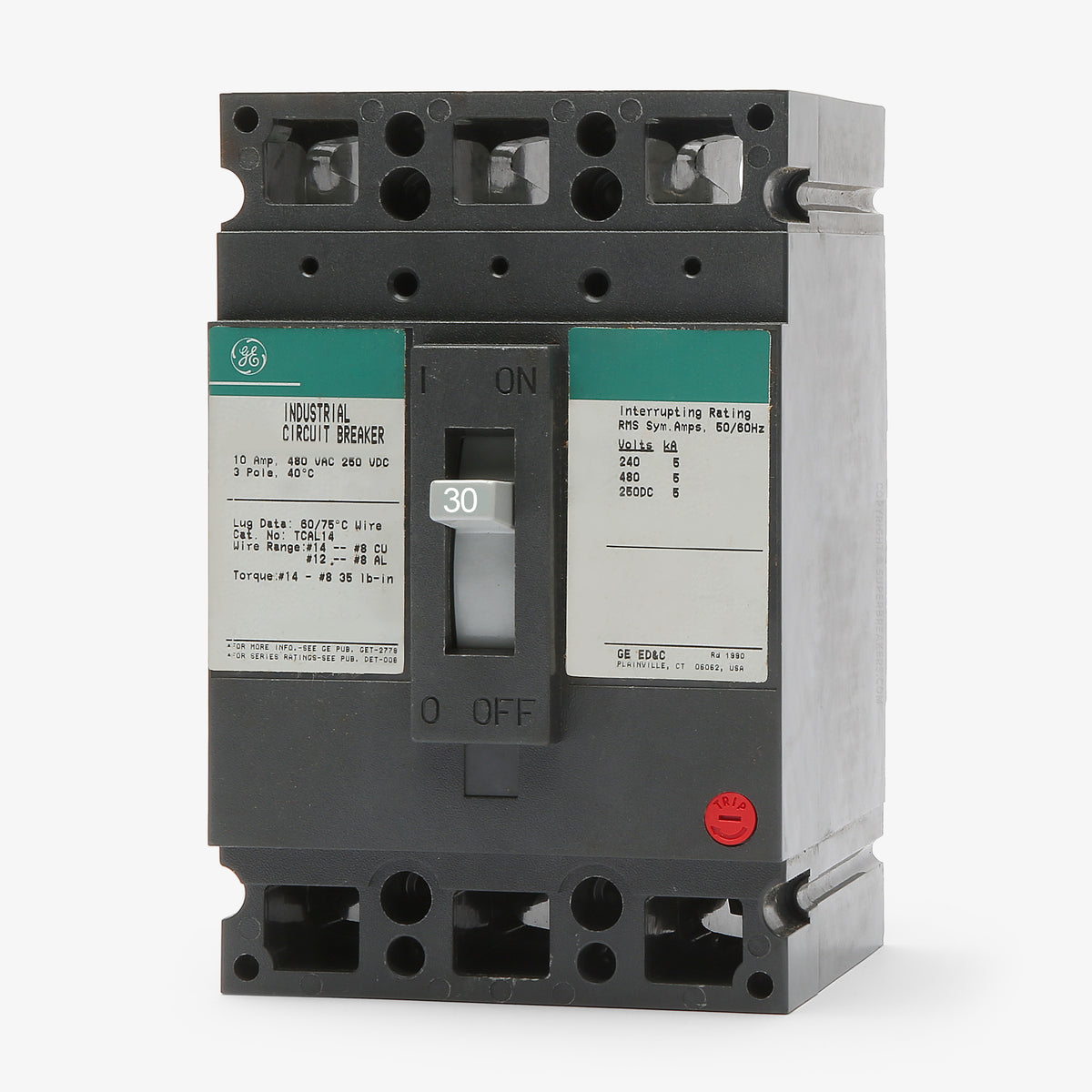

ABB / General Electric THED136030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
THED136030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED136030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136030 |
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THED136030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTHED136025
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136040
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136020
20A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the THED136030 is a 3-pole, 30A molded case circuit breaker from GE's E150 line. It provides reliable thermal-magnetic protection with fixed long-time and instantaneous trip functions. This bolt-on MCCB installs into GE A-Series panelboards, Spectra Series panelboards, and compatible motor control centers. Rated at 65 kAIC at 240VAC and 25 kAIC at 480VAC, it serves as a robust replacement for older TED136030 standard interrupt breakers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136030 |
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the THED136030 circuit breaker?
The THED136030 is designed for use in GE A-Series panelboards, GE Spectra Series panelboards, and compatible motor control centers. It requires a bolt-on connection to the bus bars.
Can the THED136030 be used in DC power systems?
Yes, this thermal-magnetic breaker is rated for direct current applications. It provides an interrupting capacity of 10kA when operated at both 250VDC and 500VDC.
What are the acceptable wire gauges and materials for the THED136030 terminal lugs?
The terminal lugs on this breaker accept copper conductors from 14 AWG to 3 AWG, and aluminum conductors from 12 AWG to 1 AWG.
Is the GE THED136030 a current or legacy breaker model?
This model is part of the legacy GE E-150 line. Following ABB's acquisition of GE Industrial Solutions, these direct replacement breakers may arrive in ABB branding while maintaining the exact THED136030 catalog number and physical specifications.
Does the THED136030 use a bolt-on or plug-in mounting configuration?
This model features a bolt-on mounting style. It requires physical hardware to secure the breaker directly to the panelboard bus bars for a robust electrical connection.
What type of trip unit is installed in the THED136030?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to protect distribution circuits against both overloads and short circuits.
Can the THED136030 be used to replace a standard TED136030 circuit breaker?
Yes, the THED136030 serves as a direct replacement for the standard-interrupt TED136030. It shares the same E Frame dimensions and mounting configuration while providing a higher overall interrupting capacity.
