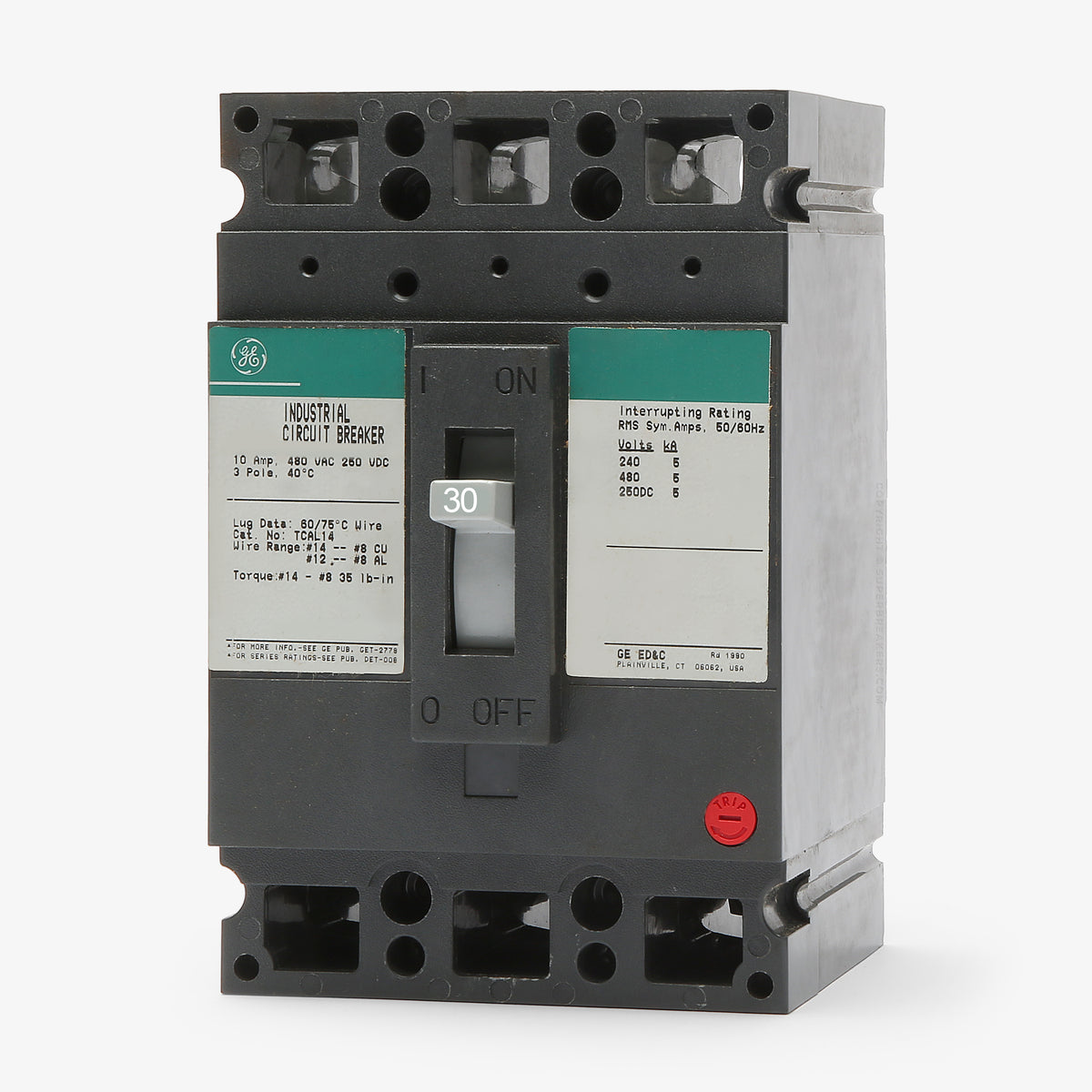

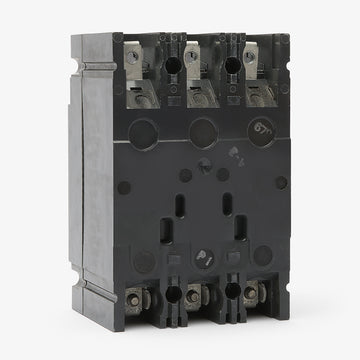

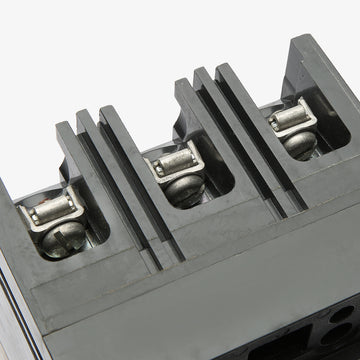

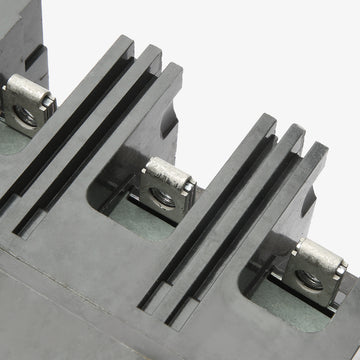

ABB / General Electric THED136030WL Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
THED136030WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136030WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED136030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136030WL |
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THED136030WL - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136030WL-R |
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTHED136025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136040WL
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136020WL
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial applications, the GE THED136030WL is a 3-pole, 30A molded case circuit breaker. It provides reliable thermal-magnetic protection with fixed trip settings. This unit mount breaker is compatible with GE enclosures, switchboards, and motor control centers. The "WL" suffix indicates it comes complete with factory-installed line and load lugs for immediate wiring. With a 65 kAIC rating at 240VAC, it handles demanding power systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136030WL |
| Series | THED |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the WL suffix indicate on the THED136030WL catalog number?
The WL suffix specifies that the breaker includes factory-installed line and load lugs. Without this suffix, the breaker would typically be supplied without terminal lugs.
What type of enclosures or panels accept the THED136030WL?
This unit mount breaker is designed for installation in GE enclosures, switchboards, and motor control centers that accept E-Frame molded case circuit breakers. It is a feed-thru configuration and does not plug into a busbar.
Are the trip settings adjustable on this 30A breaker?
No. The THED136030WL uses a standard thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions. It cannot be adjusted in the field.
What is the difference between GE TED and THED circuit breakers?
Both belong to the GE E-Frame family, but the THED series offers a higher interrupting capacity. For example, this THED breaker provides 25kAIC at 480VAC, whereas a standard TED breaker has a lower short-circuit rating.
What wire sizes are supported by the factory lugs on this breaker?
The included lugs accommodate 14 to 3 AWG copper conductors or 12 to 1 AWG aluminum conductors. Ensure proper torque specifications are followed during installation.
Can the THED136030WL be used in direct current (DC) systems?
Yes, this breaker is rated for DC applications. It provides a 10kA interrupting rating at both 250VDC and 500VDC.
