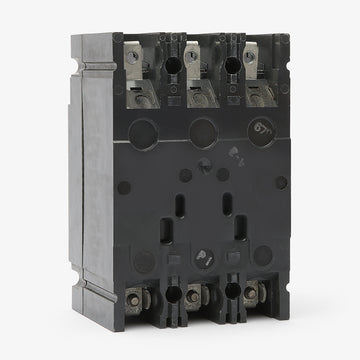

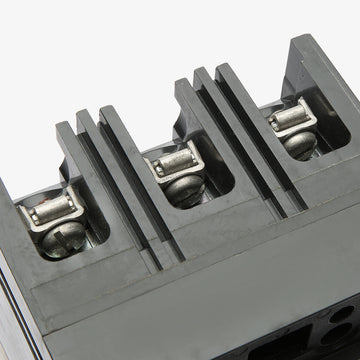

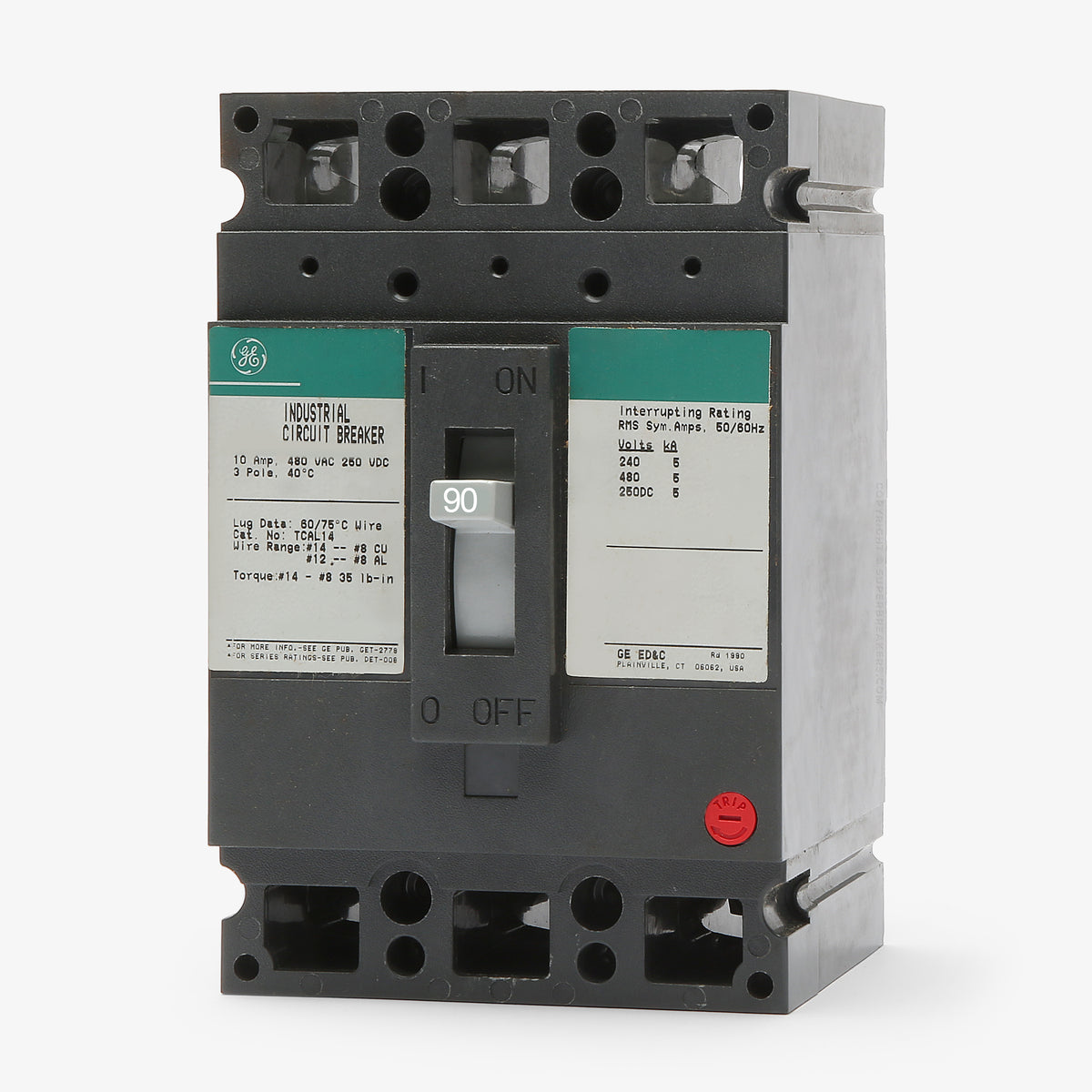

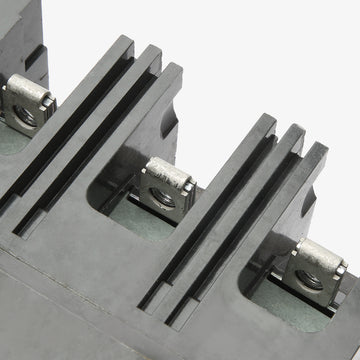

ABB / General Electric THED136090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
THED136090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric THED136090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THED136090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTHED136070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136060
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136050
50A 3 Pole Molded Case Circuit Breaker
Description
Designed for seamless integration into GE A-Series and Spectra Series panelboards, the GE THED136090 is a 3-pole, 90A bolt-on molded case circuit breaker. This E150-line breaker provides reliable thermal-magnetic (LI) trip functions to safeguard commercial and industrial circuits. With a high interrupting rating of 65kAIC at 240VAC and 18kAIC at 600VAC, it handles demanding fault conditions. It is an exact drop-in upgrade for standard-interrupt TED136090 breakers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the THED136090 circuit breaker?
This breaker is designed for use in GE A-Series panelboards, GE Spectra Series panelboards, and compatible motor control centers. It mounts directly to the bus using a bolt-on connection.
Can I use the THED136090 to replace a standard TED136090 breaker?
Yes, the THED136090 shares the same physical dimensions and E-Frame footprint as the standard TED136090. The "H" indicates a higher interrupting capacity, making it a suitable upgrade for the same slot when higher fault current protection is required.
What wire sizes are accepted by the lugs on the THED136090?
The factory-installed lugs accept 6 AWG to 2/0 AWG copper wire, or 4 AWG to 2/0 AWG aluminum wire.
Is the THED136090 manufactured by ABB or General Electric?
This breaker may be branded as either ABB or General Electric. ABB acquired GE Industrial Solutions, so newer production runs carry the ABB name while maintaining the exact same GE E-Frame specifications and panelboard compatibility.
What does the "H" in the THED136090 part number signify?
The "H" stands for High-Break, indicating that this breaker has a higher interrupting capacity than the standard TED series. It is rated to safely interrupt up to 65,000 amps at 240VAC or 25,000 amps at 480VAC.
Does the THED136090 support reverse feeding?
Yes, GE E-Frame breakers like the THED136090 are suitable for reverse feed applications, allowing line power to be connected to either the top or bottom terminals.
Is the THED136090 HACR rated for HVAC applications?
Yes, this 3-pole THED breaker is UL listed as an HACR type, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
