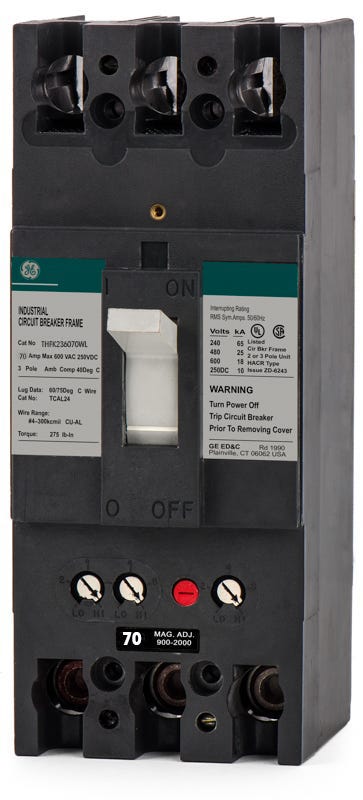

ABB / General Electric THFK236070WL Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
ABB / General Electric
THFK236070WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THFK236070WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THFK236070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHFK236125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHFK236150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHFK236175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile industrial applications, this 70-amp F-Frame breaker utilizes a unit-mount configuration with factory-installed line and load lugs. This setup allows it to be installed into standalone enclosures and custom control panels rather than relying on busbar connections. It delivers 25kAIC at 480VAC with adjustable magnetic trip settings for precise coordination. Facility engineers frequently use this model to replace older Spectra SFHA36AT0070 units in existing switchgear.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THFK236070WL |
| Series | THFK |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TFK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TCAL24) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Product FAQs
8 answersWhy is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this THFK236070WL breaker may feature either ABB or GE branding, but the physical dimensions, fit, and function remain identical.
What does the WL suffix mean in the THFK236070WL catalog number?
The WL suffix indicates that the breaker comes factory-equipped with lug terminals on both the line and load sides.
What is the difference between the GE TFK and THFK breaker frames?
The THFK is the high-interrupting version of the standard TFK frame. It offers elevated fault protection, providing up to 65kAIC at 240VAC and 25kAIC at 480VAC.
What types of equipment are compatible with the THFK236070WL?
This F-Frame molded case circuit breaker is designed for unit-mount installation in GE A-Series panelboards, switchboards, motor control centers, and standalone enclosures.
What wire sizes and materials are accepted by the lugs on this breaker?
The included lugs accept wire gauges from 4 AWG up to 300 kcmil and are rated for use with both copper and aluminum conductors.
How does the trip unit operate on this 70A breaker?
It utilizes a thermal-magnetic trip unit with fixed thermal protection for long-time overloads and an adjustable magnetic setting for instantaneous short-circuit protection.
Can this breaker be used in direct current applications?
Yes, the THFK236070WL is rated for DC systems up to 250VDC, with a maximum interrupting capacity of 10kAIC at that voltage.
What frame group does the THFK236070WL belong to?
It is part of the GE F225 line, commonly referred to as F-Frame breakers.
