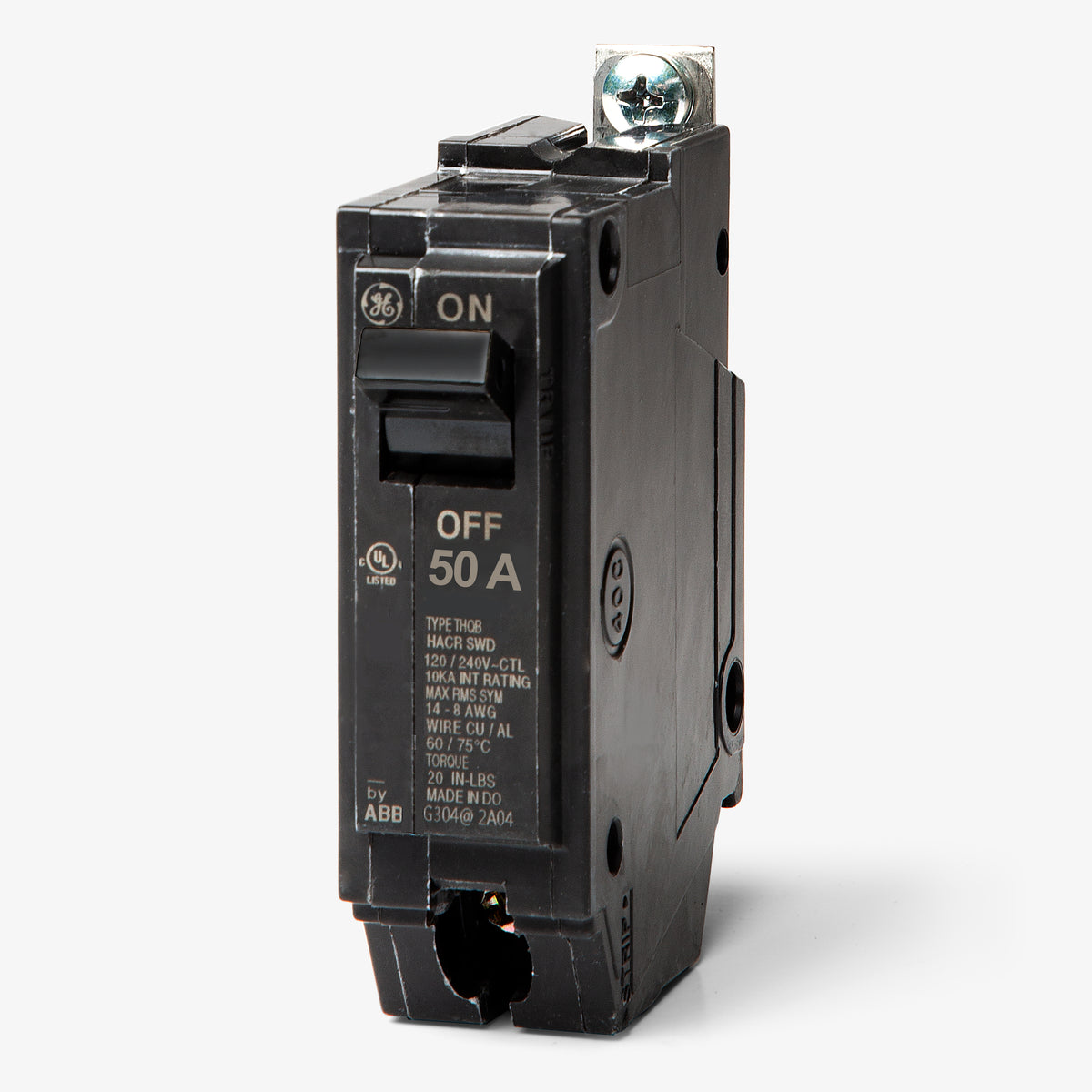

ABB / General Electric THHQB1150 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Quantity
ABB / General Electric THHQB1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB1150 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB / General Electric THHQB1150 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB1150-R |
| Series | THHQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Description
Rated for 50 amps, this single-pole bolt-on circuit breaker offers quick-make and quick-break functionality for commercial electrical systems. It utilizes a fixed thermal-magnetic trip mechanism to handle standard overloads and short circuits. Mounts into GE A-Series and ReliaGear panelboards, ensuring a secure mechanical and electrical connection. The bolt-on design prevents accidental dislodging during operation. Carrying a 22kAIC rating at 120/240V, it includes factory box lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB1150 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the THHQB1150?
This bolt-on breaker is designed specifically for GE A-Series panelboards and ReliaGear lighting panelboards. It will not fit in standard residential plug-on load centers.
Can the THHQB1150 replace a standard THQB1150 breaker?
Yes. Both the THHQB and THQB series share the same 1-inch wide Q-Line frame and bolt-on mounting configuration. The THHQB1150 provides a higher interrupting rating of 22kAIC, compared to the 10kAIC rating of the standard THQB1150, making it a direct upgrade for higher fault current applications.
What is the lug tightening torque for this 50-amp breaker?
The required torque depends on the wire size used. Torque 8 AWG wire to 40 in-lb, 6 AWG to 4 AWG wire to 45 in-lb, and 3 AWG wire to 50 in-lb.
Is the THHQB1150 suitable for HVAC applications?
Yes, this breaker carries an HACR rating, making it approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified overcurrent protection.
What is the difference between THHQB and THHQL breakers?
The THHQB series features a bolt-on connection for commercial panelboards, while the THHQL series uses a plug-on connection typically found in residential load centers. Both offer a 22kAIC rating, but their mounting styles are not interchangeable.
