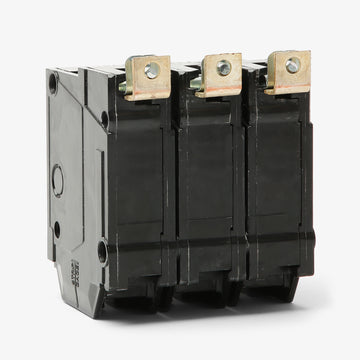

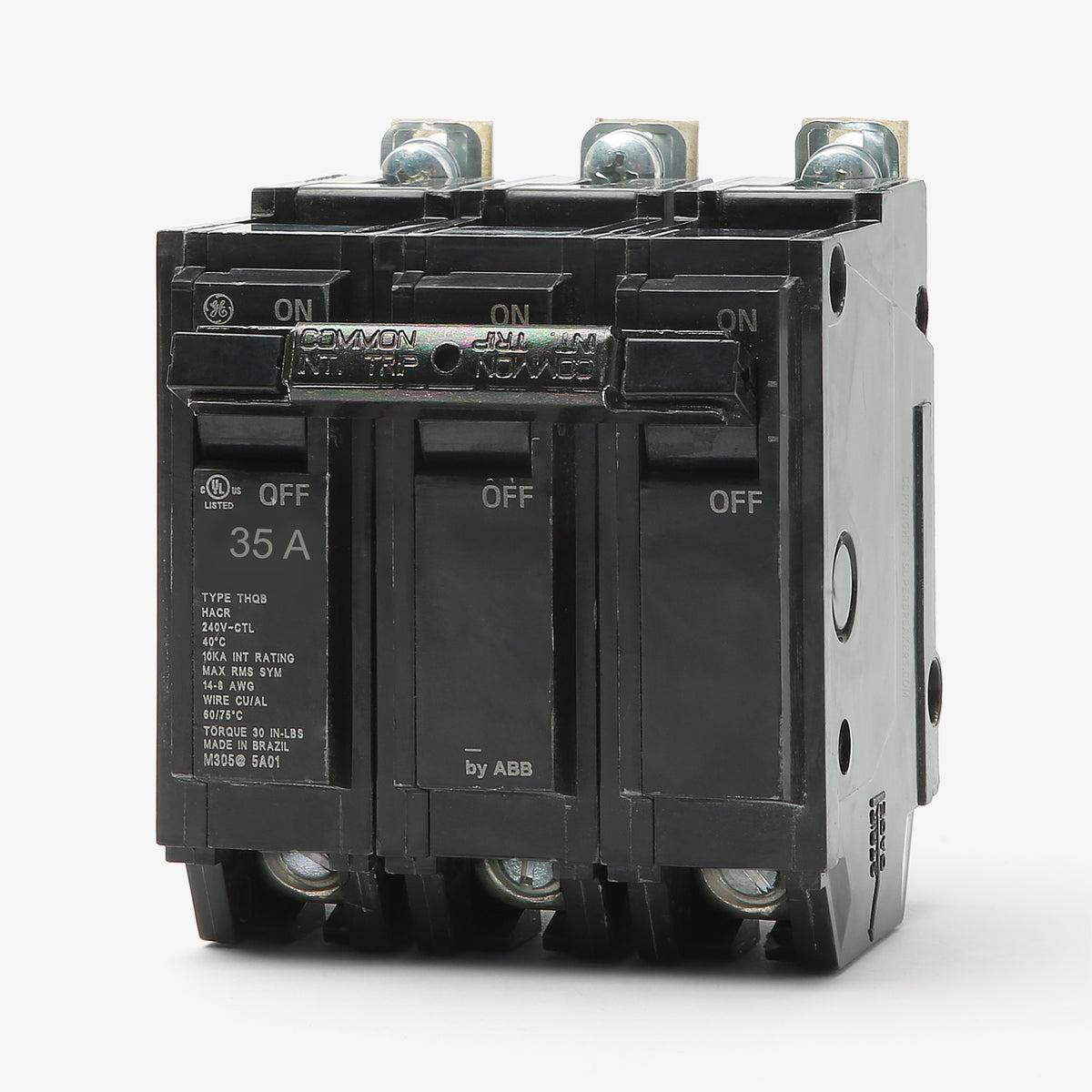

ABB / General Electric THHQB32035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric THHQB32035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description

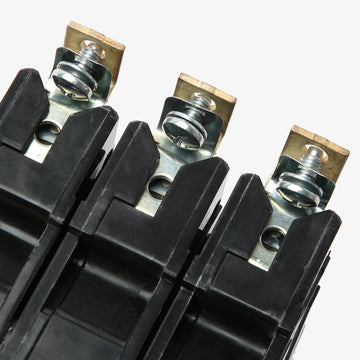

Handling three-phase commercial loads, this 35A Q-Line breaker delivers consistent thermal-magnetic protection. The non-interchangeable trip unit features a quick-make, quick-break mechanism to prevent arcing and extend operational lifespan. Contractors can mount this bolt-on MCCB into GE A-Series, AQ, and ReliaGear panelboards. The terminal box lugs are rated for 8-3 AWG copper or aluminum wire, ensuring flexible installation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THHQB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the THHQB32035 circuit breaker?
This 3-pole breaker is designed for bolt-on installation in GE A-Series, GE AQ, and ABB ReliaGear panelboards. It bolts directly to the interior bus for a secure connection in commercial and industrial applications.
What does the H in the THHQB32035 part number indicate?
The H designates this as a high-interrupting circuit breaker. It provides a 22kAIC rating at 240VAC, compared to the standard 10kAIC rating found on the base THQB32035 model.
Can I install the THHQB32035 in a GE PowerMark Gold load center?
No. PowerMark Gold load centers require plug-in Q-Line breakers, such as the THHQL series. The THHQB32035 features a bolt-on connection and is intended strictly for commercial panelboards.
What type of conductors can be used with the THHQB32035 terminals?
The box lugs on this breaker are rated for both copper and aluminum conductors, accepting wire sizes from 8 AWG up to 3 AWG.
Will I receive an ABB or GE branded THHQB32035 breaker?
Because ABB acquired GE Industrial Solutions, this exact part is manufactured under both brand names. You may receive a breaker with either ABB or GE labeling, but they are fully interchangeable and share the same UL listings.
