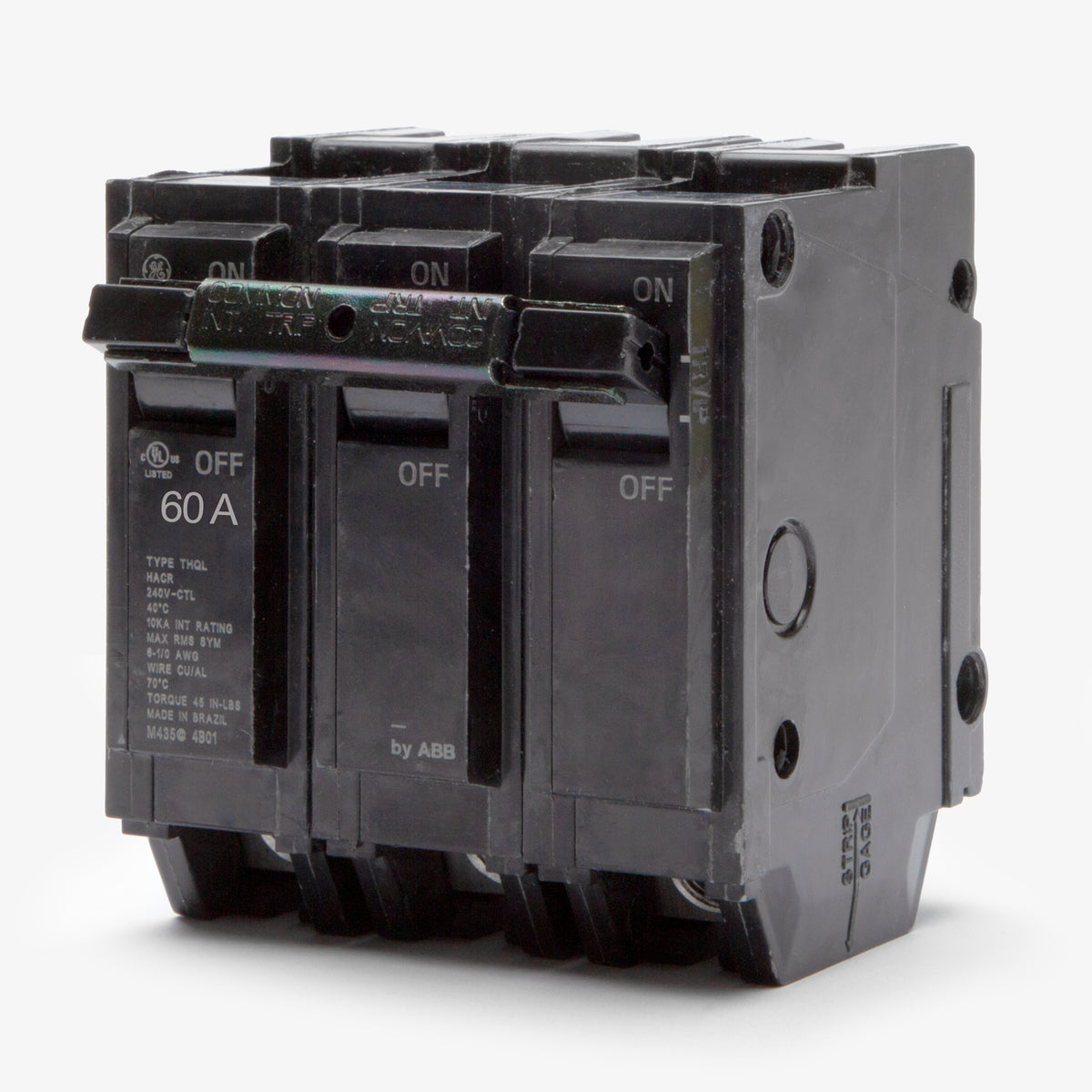

ABB / General Electric THHQL32060 Miniature Circuit Breaker
- 60A
- 3 Pole
- Plug-On
ABB / General Electric
THHQL32060
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQL32060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQL32060 - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHHQL32080
80A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQL32040
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQL32025
25A 3 Pole Miniature Circuit Breaker
Description

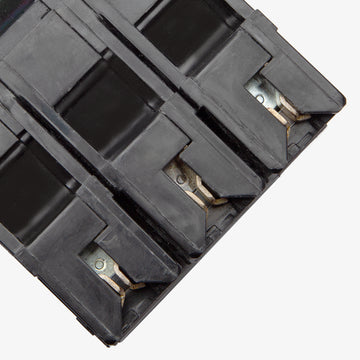

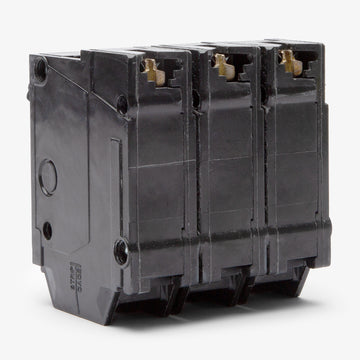

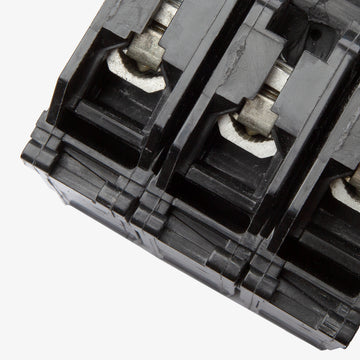

Built for commercial and residential applications, the GE THHQL32060 is a 60-amp, 3-pole miniature circuit breaker. Operating at 240VAC, it delivers a high interrupting capacity of 22kAIC to handle demanding electrical environments. Installs into GE PowerMark Gold load centers and A-Series panelboards using a standard plug-on connection. The breaker occupies three one-inch spaces and accommodates 8-3 AWG copper or aluminum conductors.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THHQL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, High Interrupting Capacity |
Product FAQs
5 answersWhich panelboards and load centers are compatible with the THHQL32060?
This breaker is designed for use in GE PowerMark Gold load centers and GE A-Series panelboards that accept 3-pole, plug-on Q-Line breakers.
What is the difference between a GE THQL and THHQL circuit breaker?
The primary difference is the interrupting capacity. Standard THQL breakers have a 10kAIC rating, while THHQL breakers feature a higher 22kAIC rating for environments with higher available fault currents. Both share the same physical dimensions and plug-on mounting style.
What wire sizes are accepted by the box lugs on the THHQL32060?
The terminal lugs on this 60-amp breaker accept 8 AWG to 3 AWG copper or aluminum conductors.
Why is this breaker listed as ABB / General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Q-Line breakers like the THHQL32060 may arrive with ABB branding, GE branding, or a combination of both, but they are the exact same OEM component.
How much panel space does the THHQL32060 require?
As a standard 3-pole Q-Line breaker, it requires three full 1-inch spaces in a compatible GE load center or panelboard.
