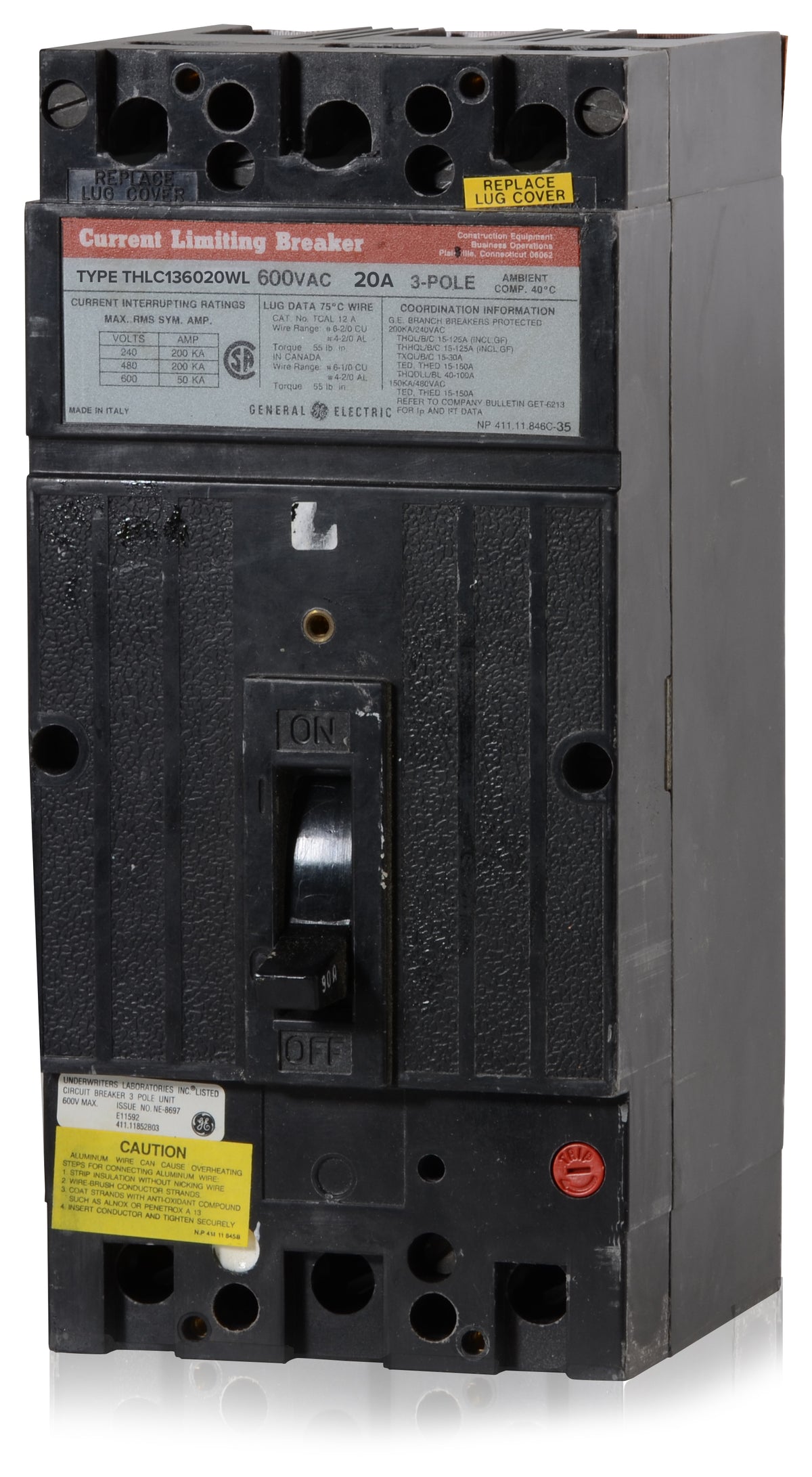

ABB / General Electric THLC136020WL Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
ABB / General Electric
THLC136020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC136020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC136020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHLC136015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE THLC136020WL is a 3-pole, 20A molded case circuit breaker from the Q-Line family. This unit-mount breaker fits into GE switchboards, motor control centers, and individual enclosures. It includes standard lug terminals. Rated for 200 kAIC at 480VAC, this current-limiting device restricts let-through energy during a fault, safeguarding sensitive downstream equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC136020WL |
| Series | THLC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Frame Type | THLC1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Mounting Hardware, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
| Special Features | Current Limiting |
Product FAQs
6 answersWhat does the current limiting feature of the THLC136020WL do?
As a current limiting breaker, it restricts the let-through energy during a fault. This protects sensitive downstream equipment from excessive thermal and magnetic stress by clearing the fault faster than standard breakers.
Where can I install the THLC136020WL circuit breaker?
This unit mount breaker is designed for use in GE switchboards, motor control centers, and individual enclosures. It is a feed-thru style breaker and is not designed to plug into standard load centers.
Does the THLC136020WL require a specific mounting hardware kit?
Yes, when installing this THLC1 frame breaker in a Spectra series panelboard, you will need a compatible mounting hardware kit, such as the AHKBE1.
Which auxiliary switches are compatible with the THLC136020WL?
You must use accessories designed for GE THLC1 frame molded case circuit breakers. For example, the TEDAS2AB1R auxiliary switch is compatible with this frame.
How does the THLC136020WL connect to the power source?
It features a feed-thru, unit mount design. This means it bolts directly to the mounting surface or enclosure backpan and uses wire lugs for both line and load connections, rather than plugging onto a busbar.
Can I adjust the trip settings on the THLC136020WL?
No. It features a fixed thermal and fixed magnetic trip unit. This provides both long-time overload protection and instantaneous short-circuit protection, but the trip points cannot be adjusted in the field.
