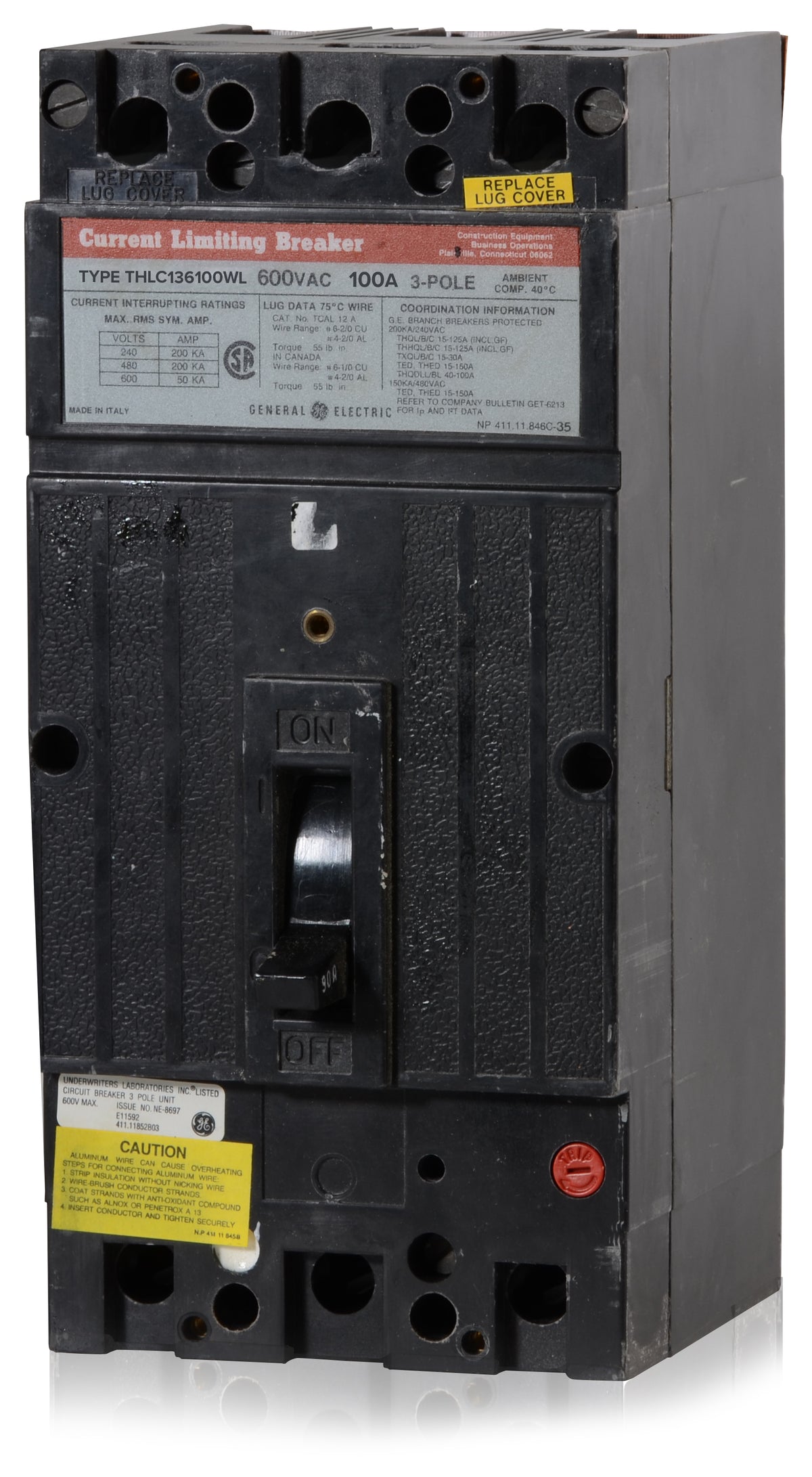

ABB / General Electric THLC136100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
THLC136100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC136100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC136100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHLC234150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136050WL
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136040WL
40A 3 Pole Molded Case Circuit Breaker
Description
Delivering top-tier fault protection, this 100-amp unit-mount MCCB is designed for standalone applications and complex distribution systems. It features factory-installed line and load lugs, making it ideal for individual enclosures, GE switchboards, and motor control centers. While this specific Q-Line model has been replaced by the modern XT Series, it remains a critical component for maintaining existing infrastructure, offering a powerful 200kAIC interrupting capacity at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC136100WL |
| Series | THLC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Frame Type | THLC1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip |
| Special Features | Current Limiting |
Product FAQs
5 answersWhat does the WL suffix indicate in the THLC136100WL catalog number?
The WL suffix specifies that the breaker is supplied with factory-installed line and load lugs. Breakers ordered without this suffix typically require terminal lugs to be sourced and installed separately.
Is the THLC136100WL suitable for use in standard residential load centers?
No. This is a unit-mount, feed-thru molded case circuit breaker designed for commercial and industrial applications. It is specifically intended for installation in GE switchboards, motor control centers, and individual enclosures.
How does the current-limiting feature of the THLC1 frame operate during a fault?
As a current-limiting breaker, it is engineered to clear high-level short circuits in less than a half cycle. This rapid operation significantly reduces the peak let-through current and energy, protecting downstream electrical equipment from severe thermal and mechanical stress.
Are the trip settings on the THLC136100WL field-adjustable?
No. This breaker utilizes a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory calibrated and cannot be modified by the installer.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Legacy GE molded case circuit breaker lines, including the THLC series, are now manufactured and distributed under the ABB brand portfolio while retaining their original GE catalog numbers to ensure direct replacement compatibility.
