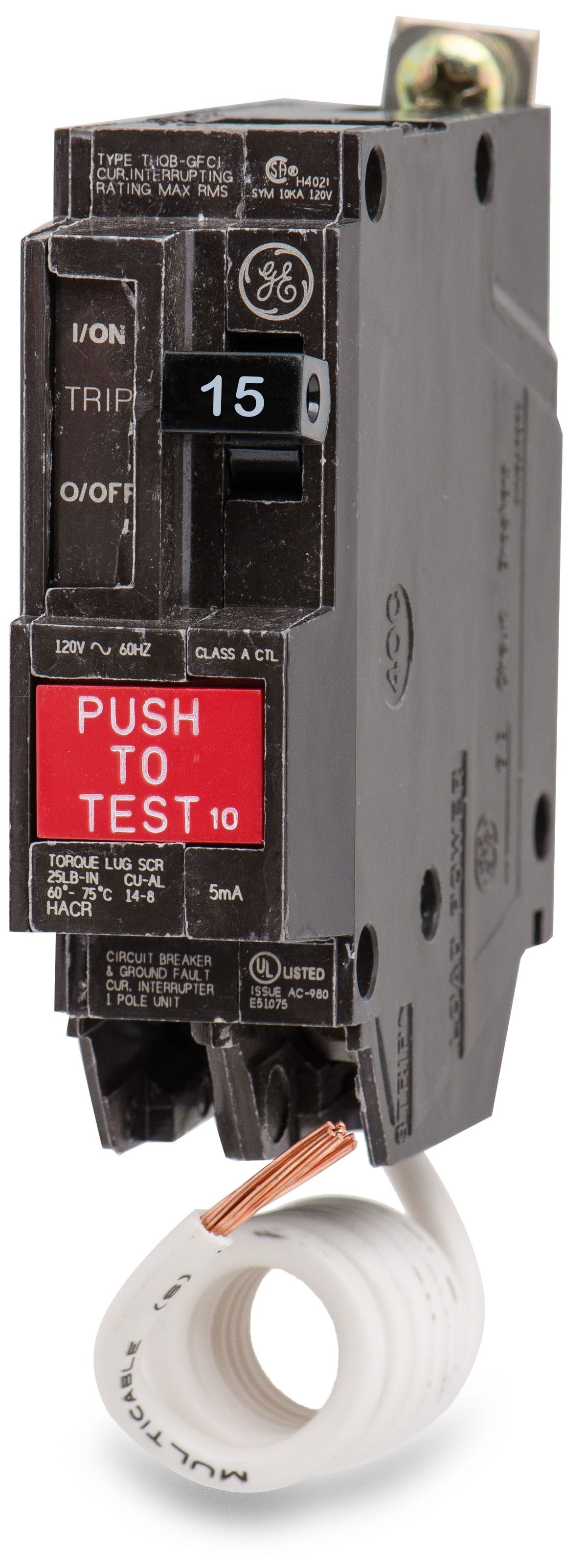

ABB / General Electric THQB1115GF GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
ABB / General Electric THQB1115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115GF |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Class A Ground Fault Protection (5mA), Non-Interchangeable Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQB1115GF - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115GF-R |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Class A Ground Fault Protection (5mA), Non-Interchangeable Trip, Quick-Make/Quick-Break |
Description
Constructed for heavy-duty commercial environments, this single-pole 15A interrupter offers precise 5mA ground-fault monitoring. The unit includes a factory-installed pigtail neutral and carries a Switching Duty (SWD) rating for fluorescent lighting control. It fastens securely into GE A-Series panelboards and AQ lighting panels using standard bolt-on connections. Note that this specific model has been superseded by the THQB1115GFT, which adds modern self-testing capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115GF |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Class A Ground Fault Protection (5mA), Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich panelboards are compatible with the THQB1115GF breaker?
This bolt-on breaker is designed specifically for GE A-Series panelboards and GE AQ lighting panels. It is not compatible with standard residential load centers that require plug-on connections.
Can I use the THQB1115GF in a standard GE Powermark load center?
No. The THQB1115GF uses a bolt-on mounting style for commercial panels. Standard GE Powermark residential load centers require plug-on breakers, such as the THQL1115GF.
How is the neutral connection handled on this GFCI breaker?
The THQB1115GF features a traditional pigtail neutral. The attached coiled white wire must be manually routed and terminated at the panel neutral bus bar to ensure proper ground fault detection.
Does this breaker provide equipment protection or personnel protection?
The THQB1115GF is a Class A Ground Fault Circuit Interrupter with a 5mA trip threshold. It is designed to provide personnel protection against electrical shock, rather than equipment protection which typically uses a 30mA threshold.
Is there a newer self-testing version of the THQB1115GF?
Yes, the THQB1115GF has been superseded by the THQB1115GFT. The newer model includes an automatic self-test feature to comply with updated UL 943 standards while maintaining the exact same physical dimensions and panel compatibility.
