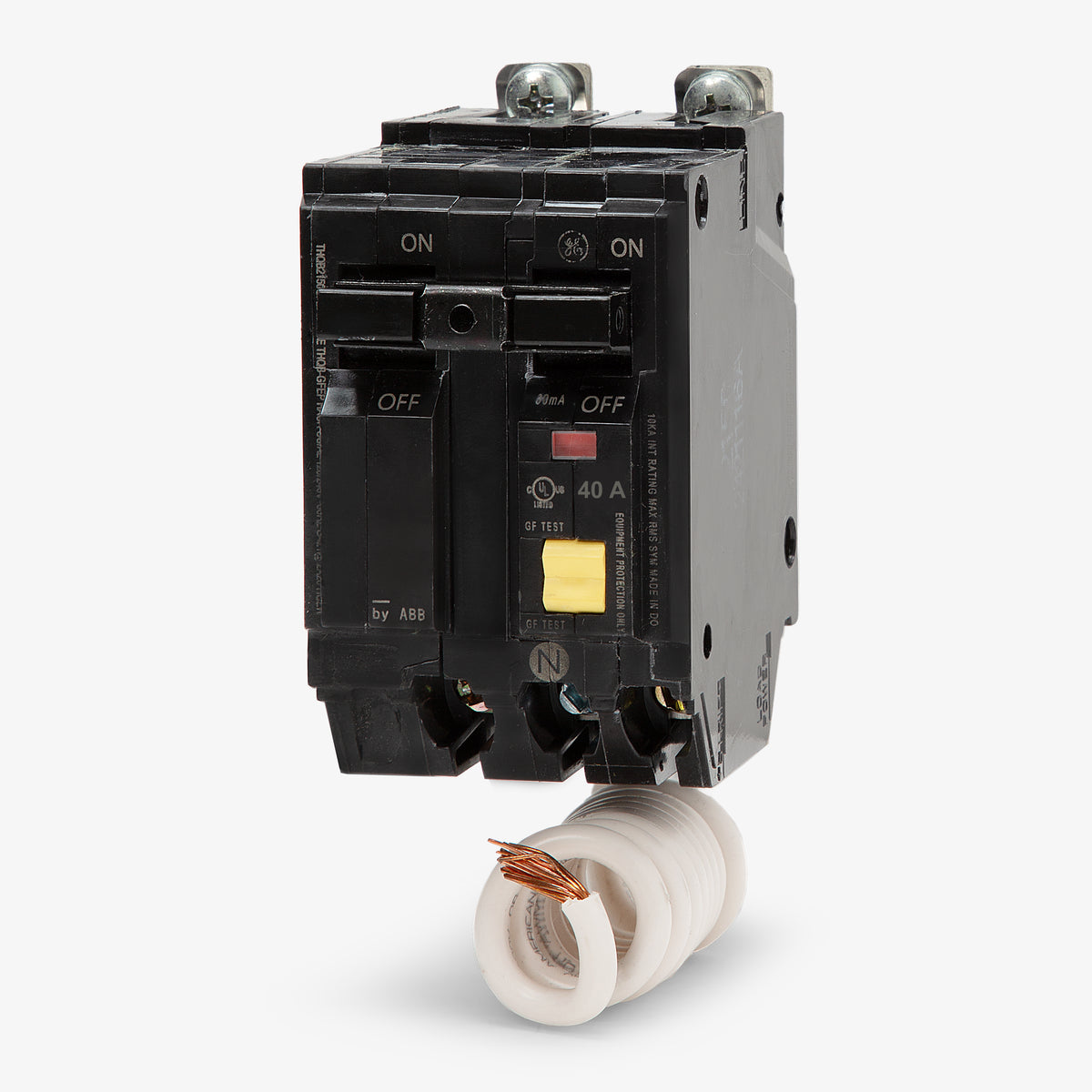

ABB / General Electric THQB2140GFEP2 GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Quantity
ABB / General Electric THQB2140GFEP2 - 40A GFEP Miniature Circuit Breaker
New
Quantity
Description
Part of the Q-Line family, the GE THQB2140GFEP2 is a 40-amp breaker featuring a pigtail neutral and 30mA ground fault equipment protection. This GFEP device is specifically calibrated for industrial applications, offering a higher fault threshold than 5mA personnel GFCIs to prevent unwanted tripping on equipment circuits. The unit mounts into GE A-Series panelboards and AQ lighting panels using a sturdy bolt-on connection. It delivers a 10kAIC interrupting rating at 120/240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |

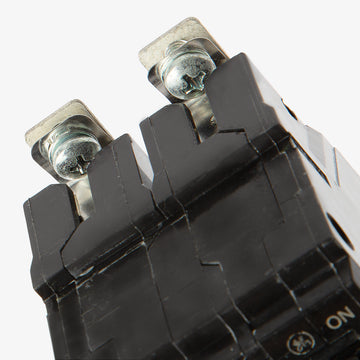

| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Pigtail Neutral, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Self-Test |
Product FAQs
5 answersWhat panelboards are compatible with the THQB2140GFEP2?
This breaker is designed for use in GE A-Series panelboards and GE AQ lighting panels. It requires a bolt-on connection and will not fit in load centers that require plug-in breakers.
Can I use this THQB breaker in place of a THQL breaker?
No. THQB breakers like the THQB2140GFEP2 feature a bolt-on mounting style designed for commercial panelboards. THQL breakers are plug-in style and are used in standard residential load centers. They are not interchangeable.
What is the difference between this GFEP breaker and a standard GFCI breaker?
The THQB2140GFEP2 provides Ground Fault Equipment Protection with a 30mA trip threshold. This is designed to protect equipment from damage while preventing nuisance tripping. Standard Class A GFCI breakers have a highly sensitive 5mA threshold designed specifically for personnel protection.
How do I wire the neutral for the THQB2140GFEP2?

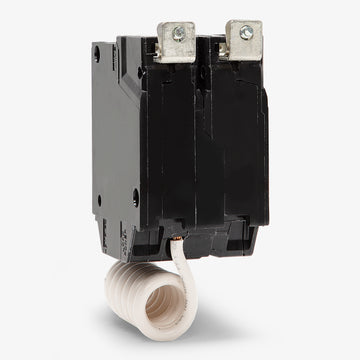

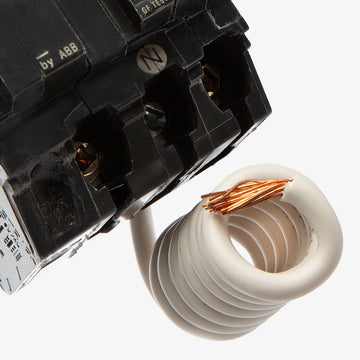

This breaker includes a pigtail neutral wire. During installation, the pigtail must be securely connected to the neutral bar in your panelboard for the ground fault protection circuitry to function correctly.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Q-Line breakers like the THQB2140GFEP2 may be branded as either ABB or General Electric, but they are the exact same product and are fully interchangeable.
