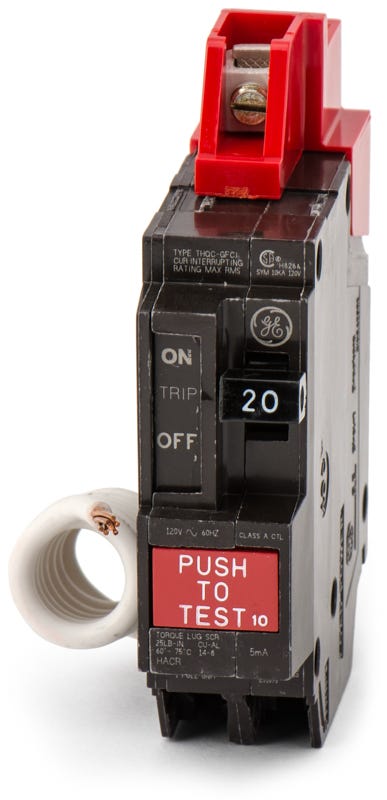

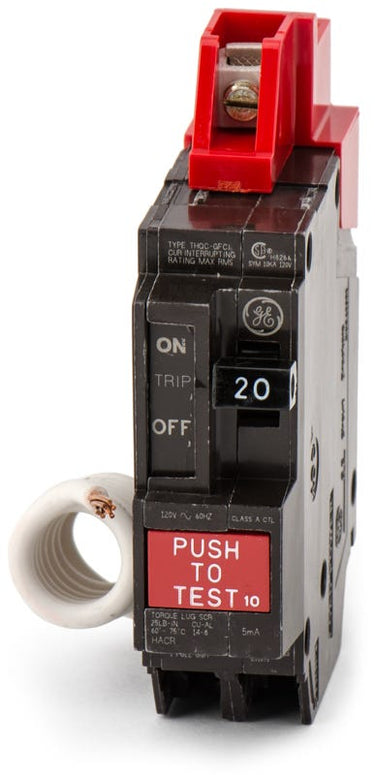

ABB / General Electric THQC1120GF GFCI Molded Case Circuit Breaker
- 20A
- 1 Pole
- DIN Rail
Quantity
ABB / General Electric THQC1120GF - 20A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1120GF - 20A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120GF |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs Included, Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQC1120GF - 20A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120GF-R |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs Included, Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Description
Engineered for personnel safety, the GE THQC1120GF delivers 5mA ground fault interruption in a 1-pole package. This 20A, 120V breaker provides reliable thermal-magnetic protection for residential and commercial applications. Designed with lug-to-lug terminals, this unit installs onto standard 35mm DIN rail systems and OEM enclosures. It serves as the predecessor to the self-testing THQC1120GFT model. Rated for 10 kAIC, it features a pigtail neutral and meets NEC code for wet locations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120GF |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs Included, Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat types of enclosures and systems accommodate the THQC1120GF?
This Q-Line breaker is designed for installation in OEM panels, compatible enclosures, and standard 35mm DIN rail systems.
How must the pigtail neutral be wired during installation?
The pigtail must be wired directly to the neutral bus bar in your panel. This connection is required to power the internal circuitry and enable ground fault sensing.
Can I use aluminum wiring with the THQC1120GF?
Yes, the terminals are rated for both copper and aluminum conductors. Ensure you use the correct wire gauge, as the acceptable range differs slightly between the two materials.
Is there a self-testing equivalent for the THQC1120GF?
Yes. The THQC1120GF is a standard GFCI breaker. If your application requires a self-testing unit to meet updated NEC requirements, you can use the THQC1120GFT model as a direct replacement.
Why might this breaker ship with ABB branding instead of GE?
Following ABB's acquisition of GE Industrial Solutions, Q-Line breakers are transitioning to ABB branding. Units marked with either brand are identical in form, fit, and function.
What level of ground fault protection does this breaker provide?
It delivers 5mA ground fault interruption. This Class A protection level is engineered specifically for personnel safety to prevent electrical shock hazards in wet or damp locations.
How does the trip mechanism operate on this model?
It utilizes a fixed thermal magnetic trip unit that provides long time and instantaneous protection against overloads and short circuits, alongside its dedicated ground fault circuitry.
