ABB / General Electric THQC2115 Molded Case Circuit Breaker
- 15A
- 2 Pole
- DIN Rail
ABB / General Electric
THQC2115
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC2115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

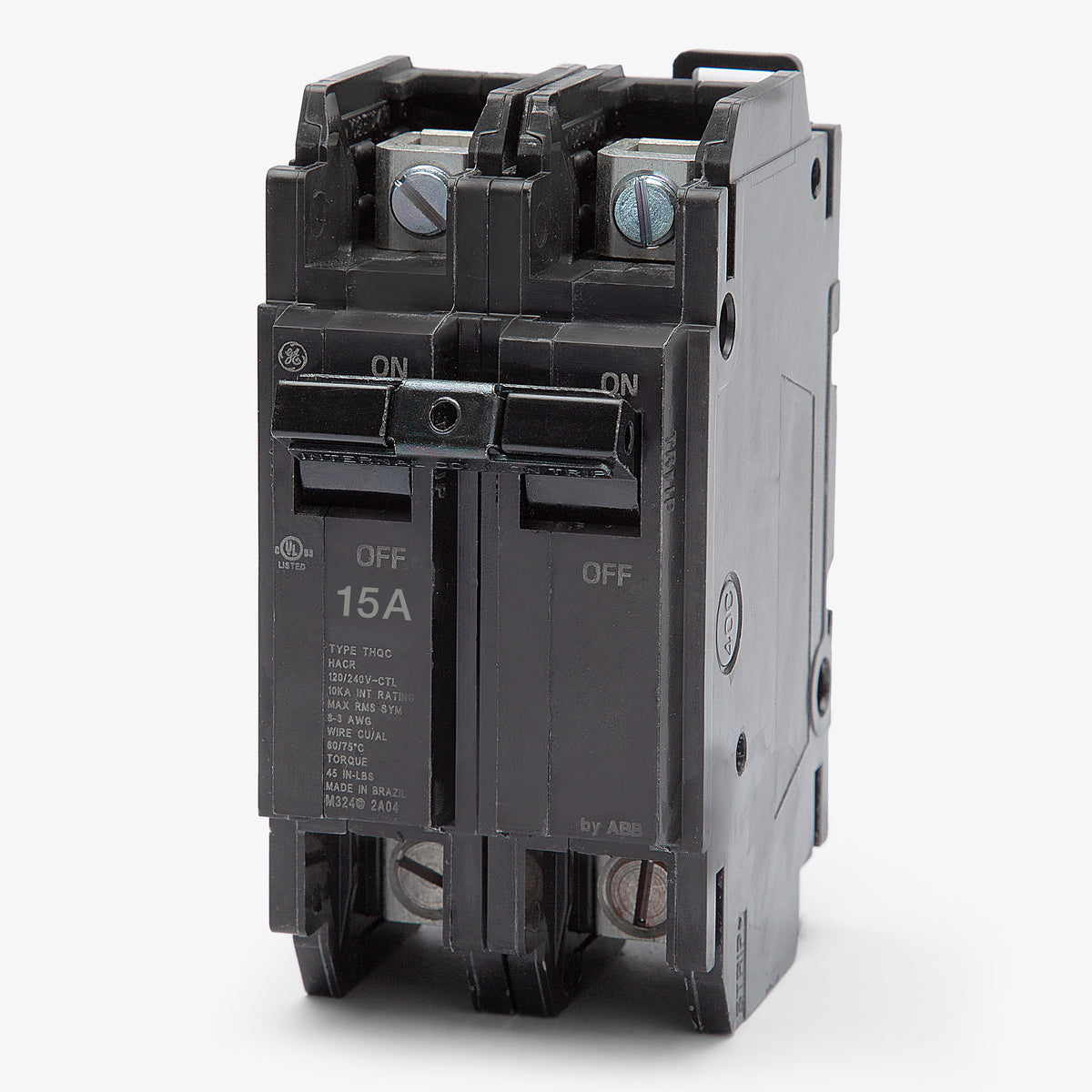

ABB / General Electric THQC2115 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQC2115 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC2115 |
| Series | THQC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Q-Line Enclosures, DIN Rail, OEM Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric THQC2115 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC2115-R |
| Series | THQC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Q-Line Enclosures, DIN Rail, OEM Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQC2120
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2125
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2125WL
25A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial use, the GE THQC2115 is a 2-pole molded case circuit breaker from the Q-Line series. It provides 15 amps of reliable overcurrent protection for single-phase electrical systems. Designed for standard 35mm DIN rail mounting, this compact unit installs into GE Q-Line enclosures and OEM panelboards. It features a standard load lug configuration. Rated at 10 kAIC at 120/240V, it utilizes fixed thermal-magnetic trip technology and an internal common trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC2115 |
| Series | THQC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Q-Line Enclosures, DIN Rail, OEM Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
7 answersWhat panels and enclosures are compatible with the THQC2115 circuit breaker?
The THQC2115 is designed for use in GE Q-Line enclosures and OEM panelboards. It features a lug-to-lug terminal design and mounts directly onto standard 35mm DIN rail systems.
Why might my THQC2115 breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, THQC series breakers may feature either ABB or GE branding. The breakers are identical in form, fit, and function regardless of the label.
How does the THQC2115 connect to the electrical system?

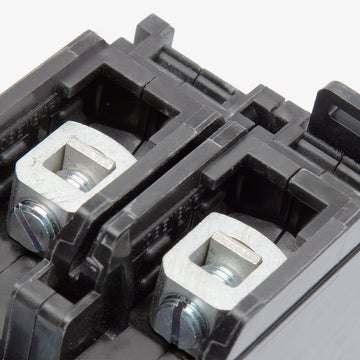

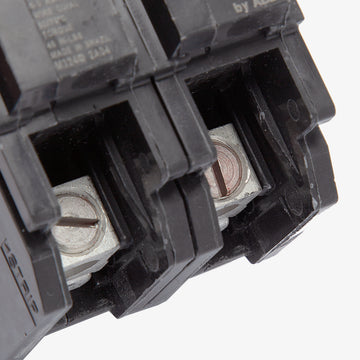

The THQC2115 is a lug-to-lug breaker that mounts to a standard 35mm DIN rail. Both the line and load connections are made by securing wires directly into mechanical lugs, which accept 14 to 8 AWG copper or 12 to 8 AWG aluminum wire.
How much physical space does the THQC2115 require in an enclosure?
As a standard Q-Line breaker, it measures 1 inch wide per pole. Because it is a 2-pole breaker, it requires 2 inches of horizontal space on a 35mm DIN rail.
How does the THQC2115 indicate a tripped condition?
Q-Line circuit breakers feature a quick-make, quick-break mechanism where the handle moves to a distinct center position between ON and OFF when tripped, making it easy to identify in a crowded panel.
Does the THQC2115 provide ground fault or arc fault protection?
No. The THQC2115 is a standard thermal magnetic breaker providing long-time overload and instantaneous short-circuit protection. It does not include GFCI or AFCI capabilities.
Is the trip unit on the THQC2115 adjustable?
No, the THQC2115 features a fixed thermal magnetic trip unit. The long-time and instantaneous trip settings are factory calibrated and cannot be adjusted in the field.
