ABB / General Electric THQL32040ST1 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32040ST1
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32040ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

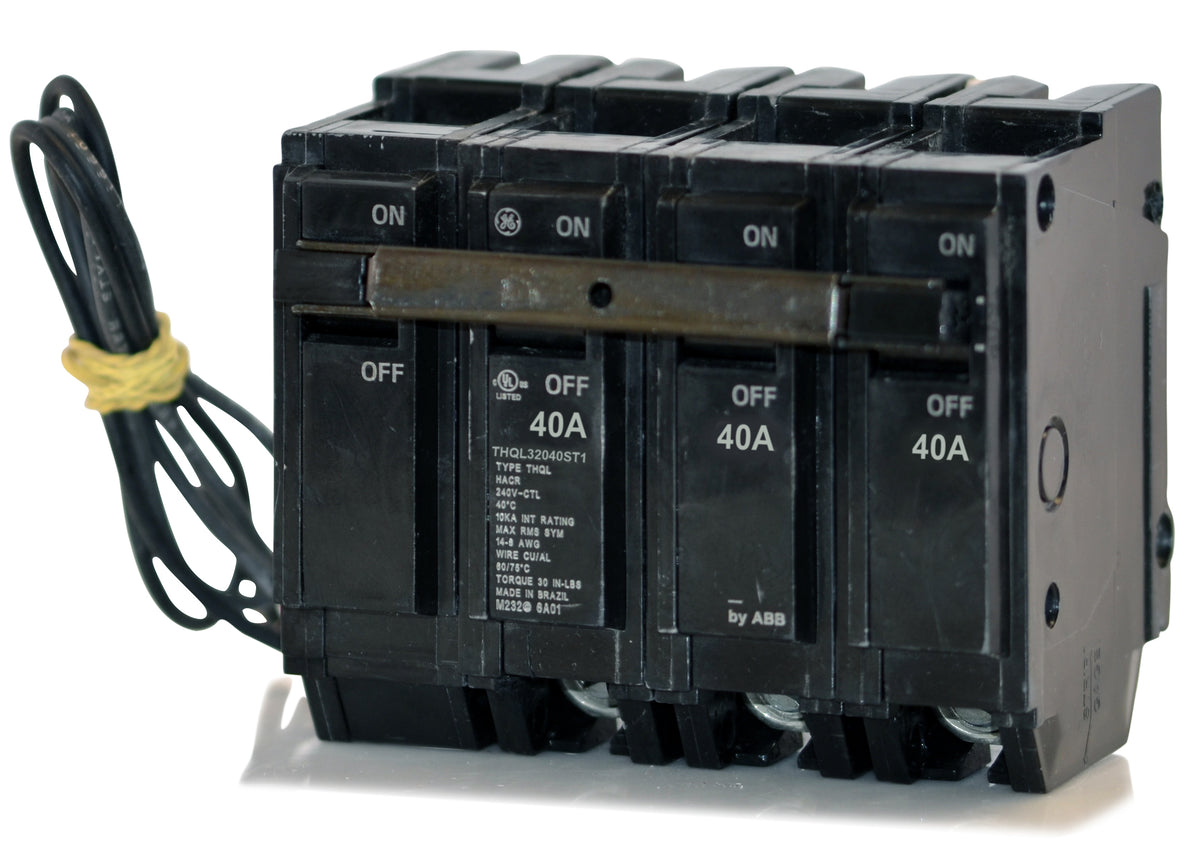

ABB / General Electric THQL32040ST1 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL32020ST1
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32070ST1
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the THQL32040ST1 is a 40A, three-pole circuit breaker from GE's Q-Line series. It comes equipped with a factory-installed shunt trip, allowing the breaker to be opened from a remote location. The plug-on design requires three inches of panel space and installs into GE PowerMark Gold load centers as well as A-Series panelboards. It accepts 8-3 AWG copper or aluminum wire via standard box lug terminals.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32040ST1 |
| Series | THQL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhich electrical panels are compatible with the THQL32040ST1 circuit breaker?
This plug-in breaker is designed for use in GE PowerMark Gold load centers and GE A-Series panelboards that accept 3-pole Q-Line breakers.
What does the ST1 suffix indicate on this GE circuit breaker?
The ST1 suffix means the breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely by an external control signal, such as an emergency stop button or fire alarm interface.
How much panel space is required to install the THQL32040ST1?
As a standard 3-pole Q-Line breaker, it requires three one-inch spaces in the panel, totaling three inches of overall width.
How is the shunt trip wired on this breaker?
The factory-installed 120V AC shunt trip includes pigtail leads that must be connected to your external control circuit. The control circuit requires a separate 120V power source to activate the trip mechanism remotely.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Q-Line circuit breakers continue to be manufactured under the same THQL catalog numbers, so a new ABB breaker is an exact, direct replacement for an older GE model.
Can the THQL32040ST1 be used in panels requiring bolt-on breakers?
No. The THQL series features a plug-in connection. If your panel requires a bolt-on connection, you will need the equivalent THQB series breaker.
Is this breaker suitable for heating, air conditioning, and refrigeration equipment?
Yes, GE Q-Line molded case circuit breakers are HACR rated, making them suitable for protecting multi-motor HVAC and refrigeration circuits that require a 40A, 3-pole disconnect.
Does this breaker have adjustable trip settings?
No, the THQL32040ST1 features a fixed thermal-magnetic trip unit with standard long-time and instantaneous protection functions.
