General Electric TJ4VF26 Circuit Breaker
- 3 Pole
- Bolt-On
Quantity

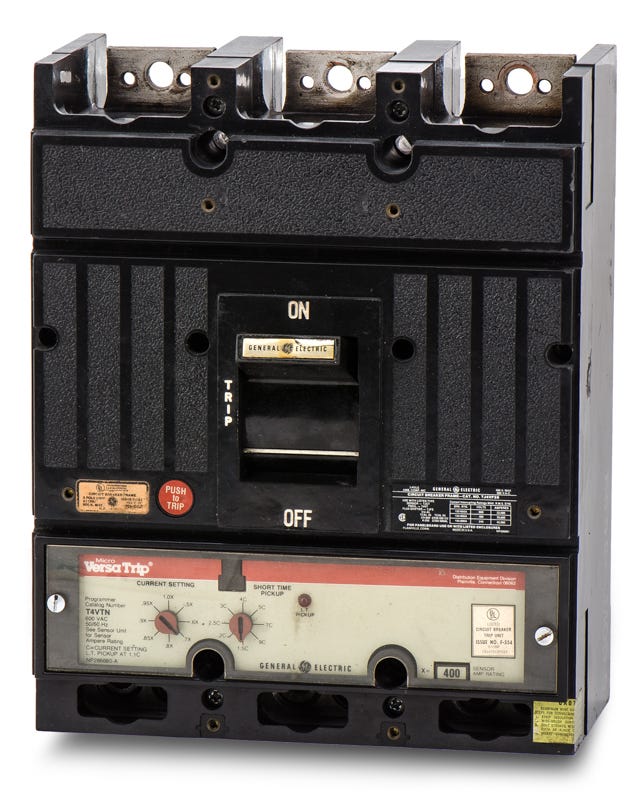

General Electric TJ4VF26 3 Pole Circuit Breaker
New
Quantity
Description
TJ4VF26 - General Electric Bolt-On Circuit Breaker
General Electric microversa trip TJ4V series three pole 600 ampere bolt-on molded case circuit breaker with maximum voltage rating of 600V tripping method solid state and standard interrupting rating of 30 kiloampere at 480V (LSIG) long-time short-time instantaneous and ground fault functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | TJ4VF26-R |
| Series | TJ |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
Product FAQs
7 answersWhat frame size is the General Electric TJ4VF26?
The TJ4VF26 belongs to the GE J600 frame size, often referred to as a J-Frame molded case circuit breaker.
What type of enclosures or panels accept the TJ4VF26?
As a bolt-on, unit-mount J-Frame breaker, it is designed for installation in compatible legacy General Electric A-Series panelboards, switchboards, and motor control centers.
What specific protection functions does the MicroVersaTrip unit on this breaker provide?
The solid state MicroVersaTrip unit on the TJ4VF26 includes LSIG functions. This allows for precise coordination through adjustable long time, short time, instantaneous, and ground fault pickup and delay settings.
Which lug kits are required for terminating wires on the TJ4VF26?
The standard aluminum and copper (CU/AL) lug kit for this J600 frame breaker is catalog number TCAL63. For copper-only (CU) applications, use catalog number TC063.
Are internal accessories field-installable on the TJ4V series breakers?
Yes, most internal accessories such as auxiliary switches, shunt trips, and undervoltage releases are UL listed for field installation. Note that bell alarm switches are an exception and must be factory installed.
Is the GE TJ4VF26 still actively manufactured?
The legacy General Electric J-Frame series, including the TJ4VF26, is obsolete. For modern replacements, ABB offers retrofit kits to upgrade legacy GE installations to the newer Tmax XT series, such as the XT5 frame.
What safety precautions should be taken before installing the TJ4VF26?
Always ensure the power is completely de-energized and follow proper lockout and tagout (LOTO) procedures before installing or servicing the circuit breaker. Installation should only be performed by a qualified and licensed electrician.
