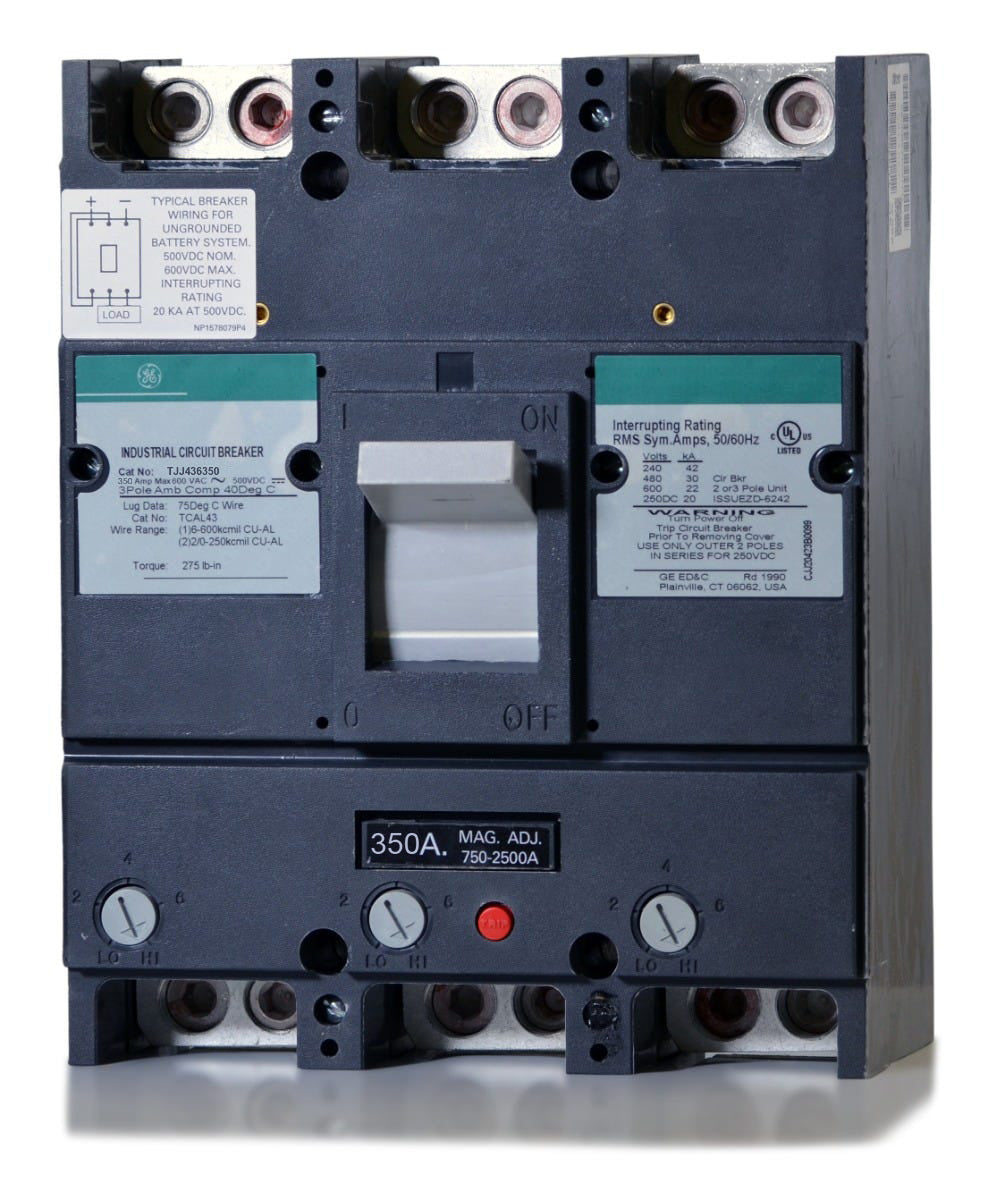

ABB / General Electric TJJ436350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Bolt-On
ABB / General Electric
TJJ436350
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJJ436350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJJ436350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TJJ436350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436350 |
| Series | TJJ |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Quantity
ABB / General Electric TJJ436350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436350 |
| Series | TJJ |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
ABB / General ElectricTJJ436300
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJJ436225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJJ436200
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the GE TJJ436350 delivers robust overcurrent protection. This 3-pole, 350A molded case circuit breaker features a non-interchangeable thermal-magnetic trip unit with adjustable magnetic settings. It mounts into GE A-Series panelboards, Spectra switchboards, and motor control centers. It accepts 6 AWG to 600 kcmil wiring via standard lugs. Rated for 30 kAIC at 480VAC, this J-Frame breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436350 |
| Series | TJJ |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the TJJ436350 breaker?
This J-Frame breaker is designed for bolt-on installation in GE A-Series panelboards, Spectra Series switchboards, and GE motor control centers. It can also be mounted in standalone GE J-Frame enclosures.
What are the acceptable wire sizes for the standard lugs on this breaker?
The factory lugs accept either a single conductor from 6 AWG to 600 kcmil or two conductors from 2/0 AWG to 250 kcmil. The terminals are rated for both copper and aluminum wire.
Does the TJJ436350 feature an adjustable trip unit?
Yes, it utilizes a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
Is this molded case circuit breaker suitable for DC voltage systems?
Yes, it is rated for DC applications up to 500VDC, providing a 20kA interrupting capacity at both 250VDC and 500VDC.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, legacy GE J-Frame breakers like the TJJ436350 may arrive with either GE or ABB branding, but they are physically and electrically identical.
