ABB / General Electric TKM826800 Molded Case Circuit Breaker
- 800A
- 2 Pole
- Bolt-On
Quantity

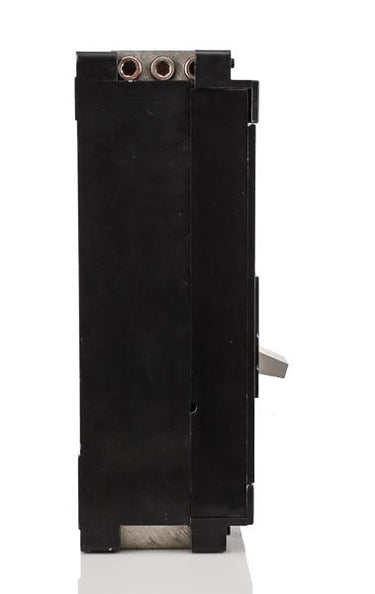

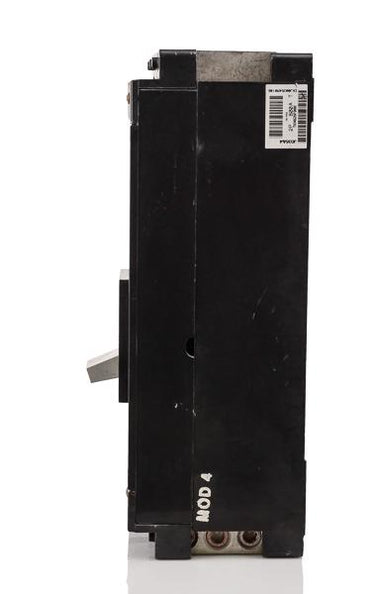

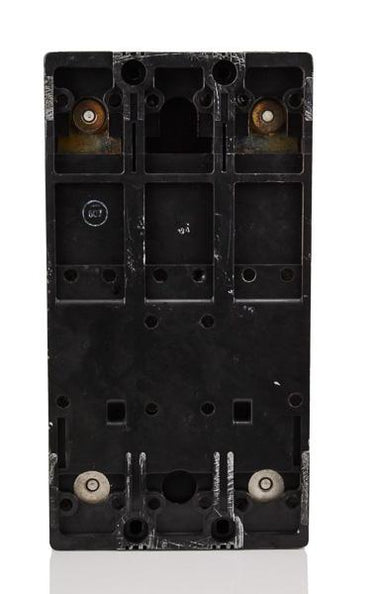

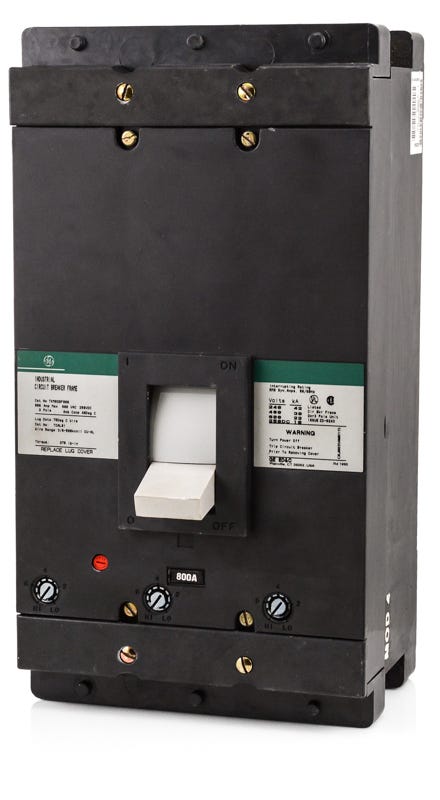

ABB / General Electric TKM826800 - 800A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for heavy-duty applications, the TKM826800 is a 2-pole, 800A molded case circuit breaker from GE. It provides dependable thermal-magnetic protection with fixed thermal and adjustable magnetic trip settings. This unit mounts into GE motor control centers, switchboards, and Type CCB panelboards. Delivering a 42kAIC interrupt rating at 240VAC, it includes an interchangeable trip unit and is HACR rated. The Spectra Series SKHA36AT0800 serves as a modern replacement.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TKM826800-R |
| Series | TKM |
| Amperage | 800A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, Type CCB Panelboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Includes TCAL81 Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Product FAQs
5 answersWhat equipment is the TKM826800 designed to fit?
This K-frame breaker is engineered for use in legacy General Electric switchboards, motor control centers, and Type CCB panelboards.
What are the lug wire capacity limits for this 800A breaker?
The standard terminal lugs accommodate up to three conductors per phase. They accept aluminum or copper wire sizes ranging from 3/0 AWG to 500 kcmil.
What adjustability does the thermal-magnetic trip unit offer?
The trip unit provides fixed thermal protection for long-time overloads and features an adjustable magnetic dial to set the instantaneous short-circuit pickup level.
Is the TKM826800 rated for use in DC circuits?
Yes, this breaker supports direct current applications up to 250VDC with an interrupting capacity of 20kA.
Does this breaker require a specific mounting configuration?
It requires a bolt-on connection, meaning it must be mechanically fastened directly to the panelboard or switchboard bus using bolted hardware rather than plugging in.
