General Electric TKMA836T250 Circuit Breaker
- 250
- 3 Pole
Quantity

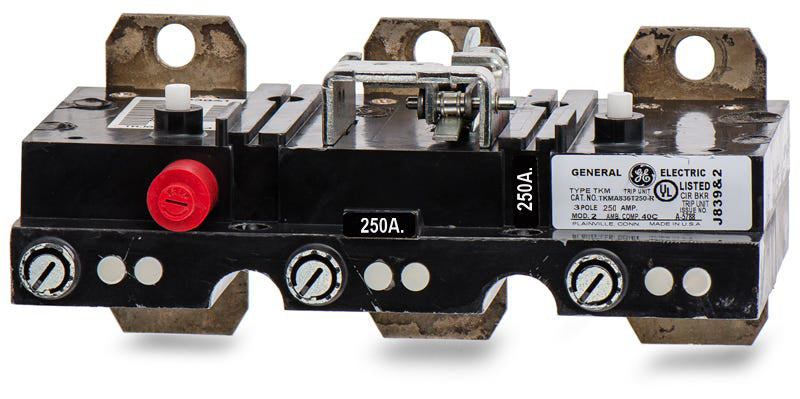

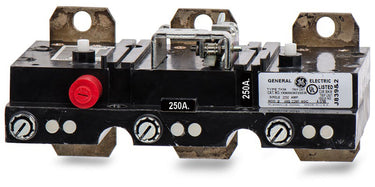

General Electric TKMA836T250 3 Pole Circuit Breaker
Re-Certified
Quantity
Description
General Electric TKMA836T250 Trip Unit
The General Electric TKMA836T250 is a 3 Pole circuit breaker trip unit with a current rating of 250 Amps and a voltage rating of 600VAC. The TKMA836T250 has a LI - long time and instantaneous functions and it is used for residential, commercial, industrial applications.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | TKMA836T250-R |
| Series | TKMA |
| Amperage | 250 A |
| Poles | 3 |
| Voltage | 600 V |
| Frame Type | TKM |
|---|
Product FAQs
5 answersWhat circuit breaker frames are compatible with the TKMA836T250 trip unit?
This interchangeable trip unit is designed for use with General Electric TKM and THKM molded case circuit breaker frames within the K1200 line.
What specific protection functions does this GE trip unit provide?
The TKMA836T250 features thermal-magnetic LI functions, providing both long time and instantaneous trip protection for residential, commercial, and industrial applications.
Does the TKMA836T250 include the circuit breaker frame?
No, this catalog number is for the interchangeable trip unit only. It must be paired with a compatible bare frame, such as the standard interrupting TKM836F000 or high interrupting THKM836F000, to form a complete circuit breaker.
What position must the breaker handle be in during the installation of this trip unit?
The circuit breaker handle must be in the tripped or off position before removing the cover to install the trip unit into the frame.
What are the primary safety requirements before servicing or installing this trip unit?
Always verify that the equipment is completely de-energized and no voltage is present. Attempting to install or perform maintenance on energized equipment can result in severe electrical shock or equipment damage.
