ABB / General Electric TLB234200WL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB / General Electric
TLB234200WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TLB234200WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

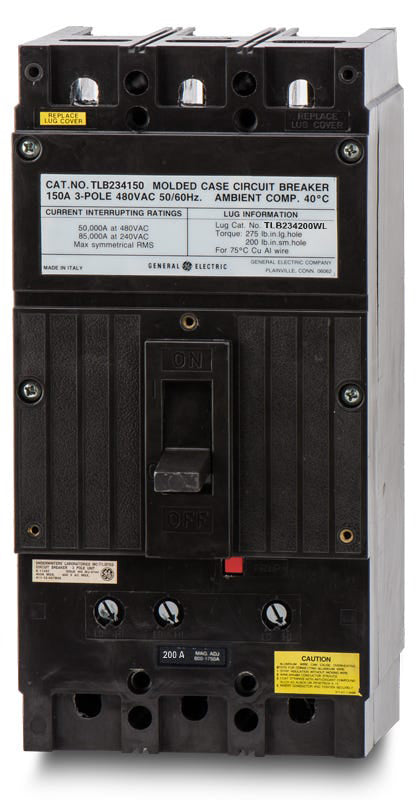

ABB / General Electric TLB234200WL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTLB434250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTLB234150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTLB134100WL
100A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial motor control applications, the TLB234200WL is a 3-pole, 200A unit-mount molded case circuit breaker from GE's Tri-Break family. It features a trip-free mechanism and thermal magnetic technology for precise LI protection. This breaker includes factory-installed lugs for straightforward unit mounting in GE switchboards and motor control centers. With a 50kAIC rating at 480VAC, this HACR-rated breaker provides exceptional current-limiting performance for critical circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TLB234200WL |
| Series | TLB |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Line & Load Side) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Integrally Fused, Current Limiting, HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat equipment is the TLB234200WL circuit breaker designed for?
This Tri-Break series breaker is specifically designed for installation in compatible GE switchboards and motor control centers.
Are lugs included with the TLB234200WL, and what wire material is supported?
Yes, the WL suffix in the catalog number indicates it comes with factory-installed lugs. These lugs are dual-rated for both copper and aluminum conductors ranging from 4 AWG to 300 kcmil.
Can the trip settings on the TLB234200WL be adjusted in the field?
No, this breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings. The Long-Time and Instantaneous (LI) trip points cannot be adjusted.
Does the TLB234200WL plug into a panelboard bus?
No, this is a unit-mount circuit breaker. It must be bolted directly to the mounting pan or bracket within the switchboard or motor control center, rather than plugging onto a busbar.
Is the TLB234200WL considered a GE or an ABB product?
It is both. Following ABB's acquisition of GE Industrial Solutions, legacy GE Tri-Break molded case circuit breakers are now produced under the ABB brand while retaining the original GE catalog numbers and exact physical dimensions.
What does the LI designation mean for this breaker's protection capabilities?
The LI designation means the thermal magnetic trip unit provides Long-Time (L) protection against standard overloads and Instantaneous (I) protection against severe short circuits.
