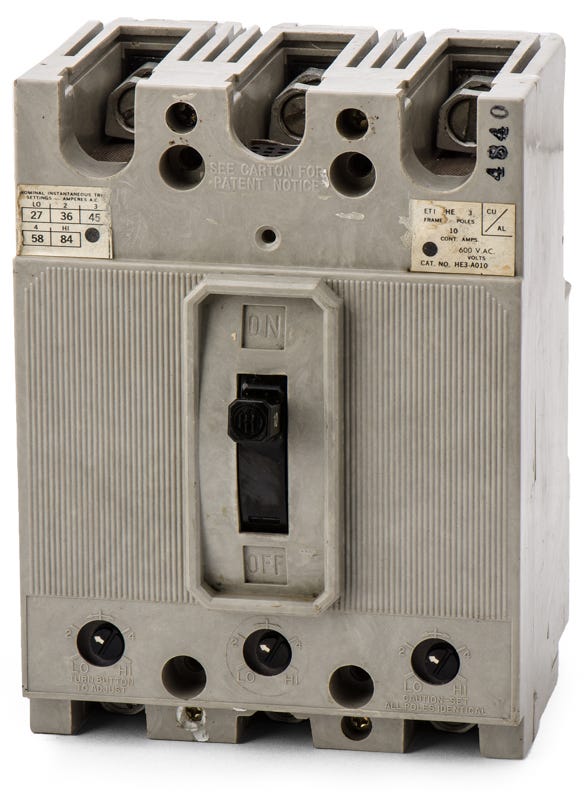

Siemens / ITE HE3A010 Motor Circuit Protector
- 10A
- 3 Pole
- Bolt-On
Quantity
Siemens / ITE HE3A010 - 10A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
Part of the legacy HE series, this 10A motor circuit protector offers dedicated short-circuit defense for industrial motors. It is engineered to work alongside separate overload relays in Siemens combination starters. The bolt-on design ensures a secure fit in existing motor control centers without requiring panel modifications. Featuring a 65kAIC rating at 240VAC and an adjustable magnetic trip, it is a reliable replacement component. It crosses over to the newer ED63A010.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | HE3A010-R |
| Series | HE |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 30-100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity, Non-Interchangeable Trip |
