Eaton / Westinghouse HLB3400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
HLB3400
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
HLB3400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

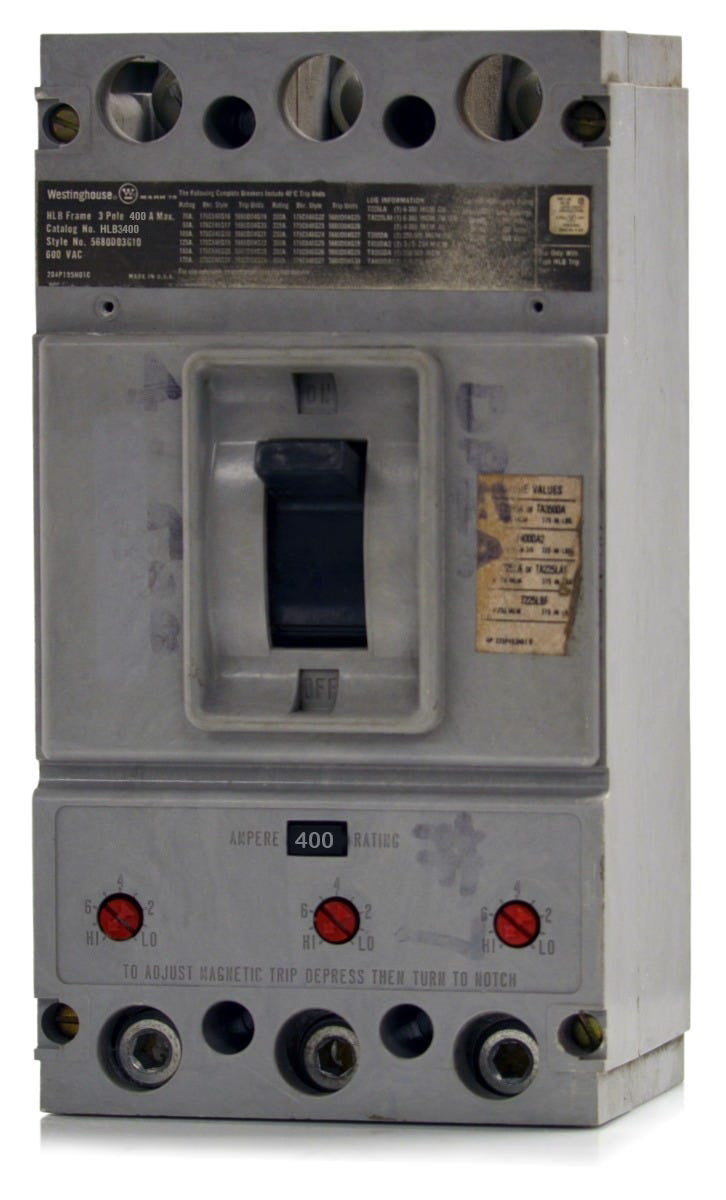

Eaton / Westinghouse HLB3400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
300A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Designed to support existing industrial infrastructure, this 400A thermal-magnetic breaker offers a 65kAIC rating at 240V. It mounts into classic Westinghouse switchboards and panelboards, serving as an exact fit for aging systems. Upgrading to the newer KD3400 requires a TAD3 spacer kit, making this original Mark 75 unit ideal for seamless maintenance. Operators benefit from its interchangeable trip unit and adjustable magnetic response, ensuring precise coordination for critical loads.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Series | HLB |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | LB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
4 answersWhat is the difference between the LB3400 and the HLB3400?
The HLB3400 is the high-interrupting capacity version of the standard LB3400. It belongs to the Mark 75 family and provides a 35kAIC rating at 480VAC, whereas the standard LB frame has a lower interrupting capacity. Both share the same physical dimensions and mounting.
Are Eaton, Cutler-Hammer, and Westinghouse HLB3400 breakers interchangeable?
Yes. Eaton acquired the Westinghouse distribution equipment division in 1994. Breakers marked with Eaton, Cutler-Hammer, or Westinghouse bearing the HLB3400 catalog number are the exact same component and can be used interchangeably in compatible panelboards, switchboards, and motor control centers.
Can I run parallel conductors to the HLB3400 lugs?
Yes, the standard lugs on this breaker support parallel runs. You can terminate two conductors ranging from 1 AWG to 250 kcmil per phase, or a single conductor from 1 AWG to 600 kcmil. The lugs are rated for both aluminum and copper wire.
Is the trip curve adjustable on the HLB3400?
The thermal element for long-time overload protection is fixed, but the magnetic element for instantaneous short-circuit protection is adjustable. You can set the magnetic trip threshold using the adjustment dial located on the face of the breaker.
