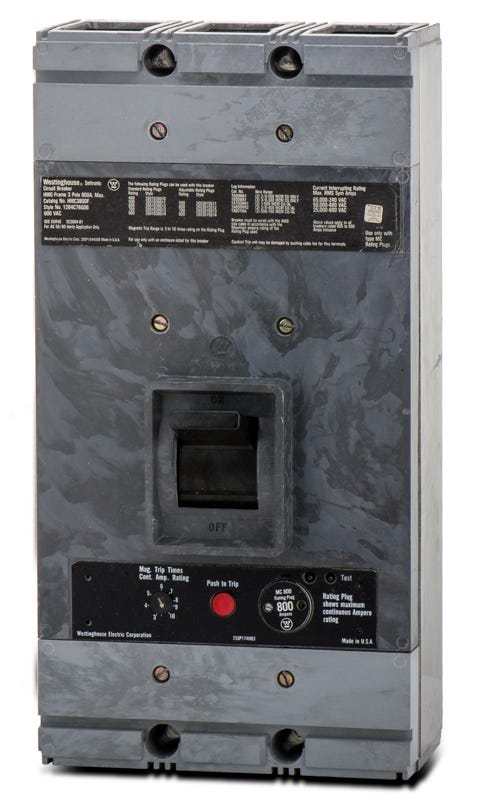

Eaton / Cutler-Hammer HMC3800 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer HMC3800 - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for heavy-duty industrial environments, the HMC3800 delivers precise microprocessor-based sensing via its Seltronic trip unit. Equipped with an 800A rating plug, this three-pole breaker ensures accurate coordination and reverse feed capabilities. It integrates seamlessly into older Cutler-Hammer, Westinghouse, and Eaton Pow-R-Line switchboards and motor control centers. Delivering 65 kAIC interrupting capacity at 240V, this legacy LC/MC frame component is replaced by the HMDL3800 series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMC3800-R |
| Series | HMC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | 800A Rating Plug |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat type of trip unit is installed in the HMC3800?
This breaker is equipped with a solid-state electronic trip unit featuring fixed Long-Time and Short-Time (LS) functions. Unlike standard thermal magnetic breakers, this microprocessor-based Seltronic trip unit provides precise coordination for heavy industrial environments.
What equipment is the HMC3800 designed to fit?
It is a legacy MC frame component built for use in older Westinghouse, Cutler-Hammer, and Eaton Pow-R-Line panelboards, switchboards, and motor control centers.
What is the modern replacement for the HMC3800?
The HMC3800 is an obsolete legacy breaker. For new installations or direct replacements where the legacy MC frame is no longer required, Eaton has replaced this model with the HMDL3800 series.
Does this circuit breaker require a rating plug?
Yes, because it utilizes a Seltronic electronic trip unit, the HMC3800 requires a compatible rating plug to establish the maximum continuous current and ensure accurate overcurrent protection.
Can the HMC3800 be reverse fed?
Yes, this breaker is designed with reverse feed capabilities, allowing it to be wired in either direction for flexible installation in industrial power systems.
What internal accessories are compatible with this breaker?
This MC frame breaker supports various internal accessories, including shunt trips, undervoltage releases, auxiliary switches, and alarm switches for advanced control and monitoring.
