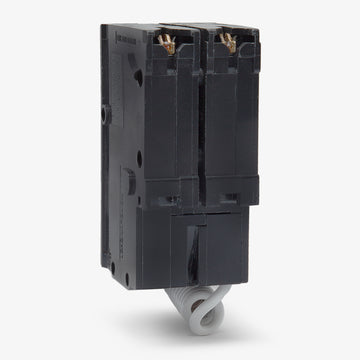

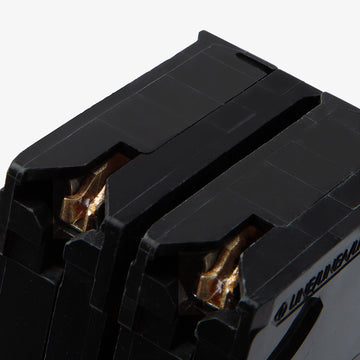

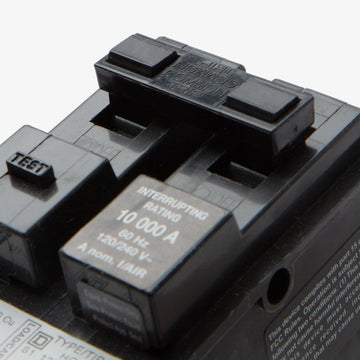

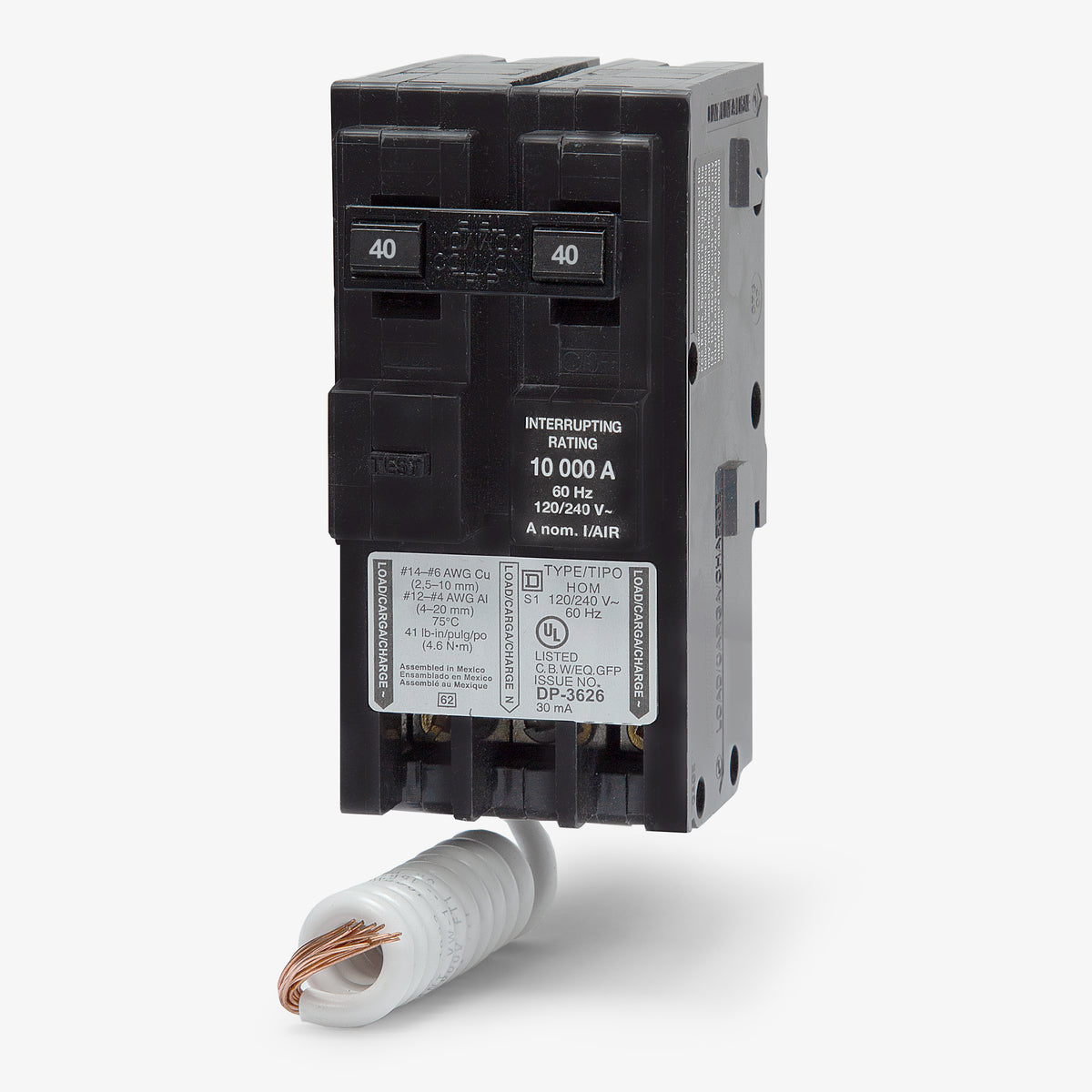

Square D HOM240EPD GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Quantity
Square D HOM240EPD - 40A GFEP Miniature Circuit Breaker
New
Quantity
Description
Built for specialized branch circuit defense, the Square D HOM240EPD is a 40A, 2-pole equipment protection breaker. Unlike standard GFCI units, this EPD features a 30mA trip threshold to protect heavy machinery without nuisance tripping from minor operational leakage. Designed for seamless integration, it snaps into any Square D Homeline load center and accommodates 8-2 AWG wire. Operating at 120/240VAC with a 10kAIC rating, the HACR-rated breaker meets UL and CSA safety requirements.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM240EPD |
| Series | HOM |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Equipment Protection Device |
Product FAQs
6 answersWhat is the difference between this EPD breaker and a standard GFCI?
This Equipment Protection Device (EPD) features a 30mA ground fault trip threshold designed to protect machinery and equipment. Standard Class A GFCI breakers have a 4mA to 6mA threshold intended for personnel protection, which can cause nuisance tripping on certain heating or motor loads.
What are common applications for a 40A GFEP breaker?
A 30mA GFEP breaker is typically installed for heat tracing, snow melting equipment, or dedicated 240V machinery where standard 5mA GFCI protection would result in nuisance tripping but equipment protection is still required by code.
Can the HOM240EPD be installed in a Square D QO load center?
No. Homeline breakers feature a 1 inch per pole format and are strictly designed for Square D Homeline load centers. QO panels require breakers with a 3/4 inch per pole footprint.
How is the ground fault circuitry powered on this breaker?
The breaker includes a pigtail neutral wire that must be landed directly on the neutral bus bar of the load center. This connection is required for the internal ground fault sensing circuitry to operate correctly, even if the load does not use a neutral.
Is this pigtail breaker compatible with Plug-On Neutral (PON) Homeline panels?
Yes. While it does not utilize the plug-on neutral rail directly, pigtail breakers can still be installed in PON load centers by landing the pigtail wire on the standard neutral bus bar.
Does this 2-pole breaker require a load neutral connection?
If the 240V load does not utilize a neutral wire, the breaker will still function correctly. The pigtail neutral must be connected to the panel neutral bar to power the breaker electronics, but the load neutral terminal on the breaker can remain empty for straight 240V loads.
