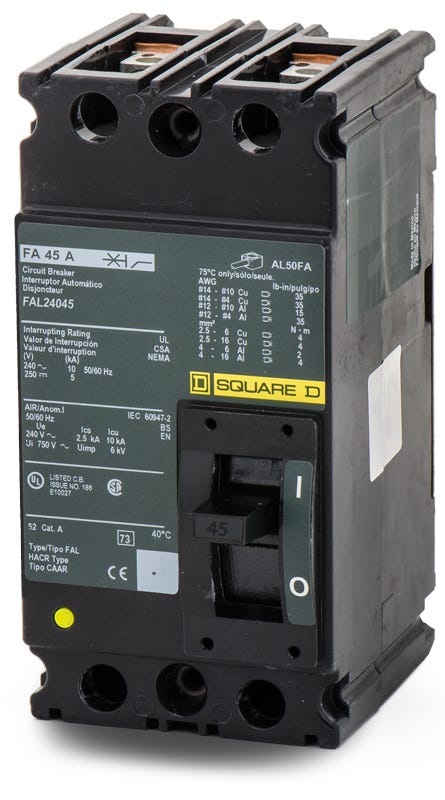

Square D FAL24045 Molded Case Circuit Breaker
- 45A
- 2 Pole
- Unit Mount
Square D
FAL24045
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL24045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL24045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the Square D FAL24045 is a 2-pole, 45A MCCB from the legacy F-frame family. It provides reliable long-time and instantaneous (LI) protection. This unit-mount breaker installs into compatible Square D enclosures and switchboards. For modern upgrades, it is replaced by the PowerPact BDL26045. Rated 18kAIC at 480VAC, it features a fixed thermal-magnetic trip mechanism and a Visi-Trip indicator for quick identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL24045 |
| Series | FAL |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat is the difference between FAL and FAP circuit breakers?
FAL breakers are unit-mounted and feature lugs on both the line and load sides. FAP breakers are I-Line panelboard breakers that plug onto the bus on the line side. The FAL24045 is a unit-mount breaker.
Can this breaker be installed in an I-Line panelboard?
No. While sometimes mislabeled in legacy catalogs, FAL breakers are strictly unit-mounted with line and load lugs. For an I-Line panelboard, you need an FAP series breaker with a plug-on line connection.
Can the FAL24045 replace older FA series breakers?
Yes, the FAL series is the direct replacement for the legacy FA series. The FAL24045 can replace an older FA24045 breaker, maintaining the same physical dimensions and unit-mount configuration.
What type of lugs are included with this breaker?
This breaker comes factory-equipped with AL100FA lugs on both the line and load sides. These lugs accept 14 AWG to 1/0 AWG copper or aluminum wire.
Is this breaker suitable for direct current (DC) systems?
Yes, the FAL24045 is rated for use in DC applications up to 250V DC, with a maximum interrupting capacity of 10 kA at that voltage.
What is the recommended mounting orientation for the FAL24045?
Square D F-frame molded case circuit breakers can be mounted in any position, including vertical, horizontal, or flat, without affecting their thermal-magnetic tripping characteristics.
What is the modern PowerPact equivalent for the FAL24045?
The legacy F-frame breakers have been superseded by the Square D PowerPact B-frame series. A comparable unit-mount replacement is typically found in the BDL or BGL families, though mounting dimensions and accessories will differ.
