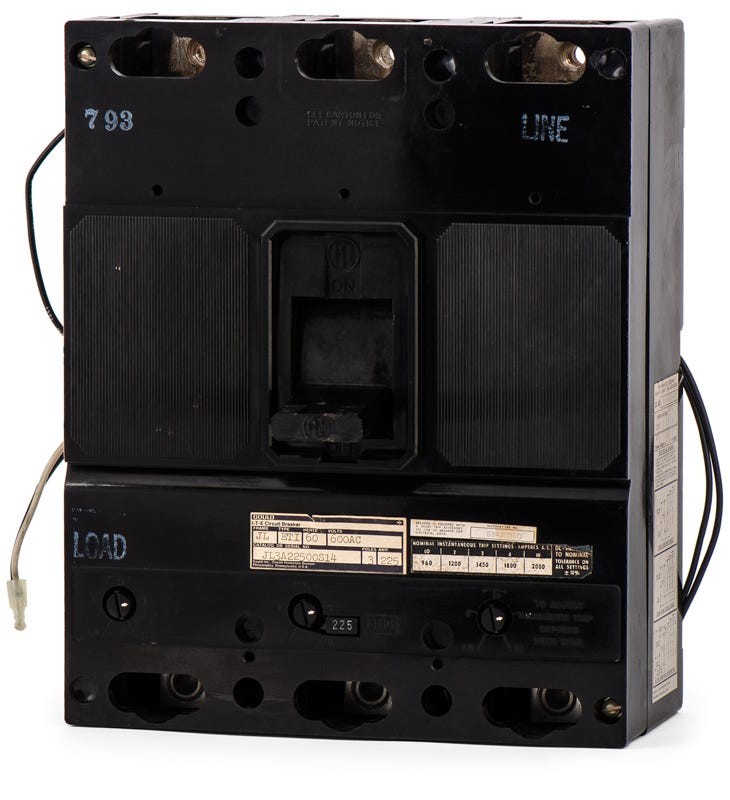

Siemens / ITE JL3A22500S14 Motor Circuit Protector
- 225A
- 3 Pole
- Bolt-On
Quantity

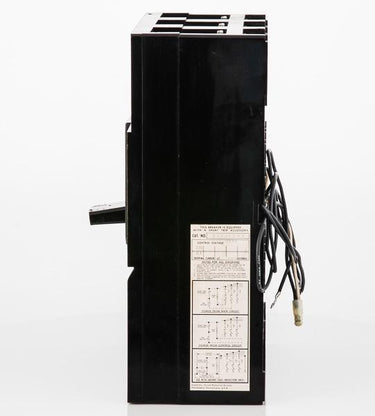

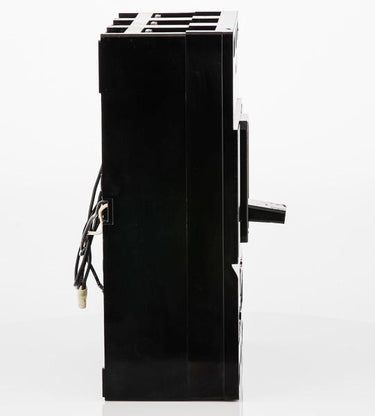

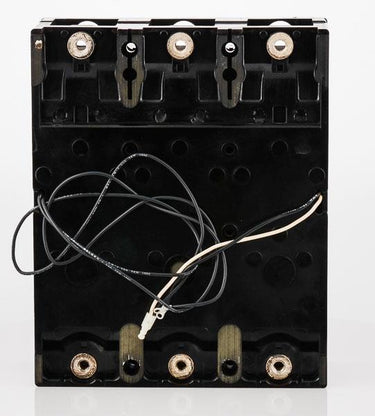

Siemens / ITE JL3A22500S14 - 225A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
Part of the legacy JL frame series, the Siemens JL3A22500S14 is a 3-pole, 225A motor circuit protector designed for industrial motor control. It delivers instantaneous magnetic-only protection for dedicated motor loads. This bolt-on unit installs into Siemens P4 and P5 panelboards or switchboards. As an exact replacement for older systems, it can be substituted by the JD63B225 (requires S14 suffix). Rated up to 600VAC, it features an adjustable magnetic trip and a 120VAC shunt trip.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | JL3A22500S14-R |
| Series | JL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 30kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 600-2250A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Lugs Not Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Interchangeable Trip Unit |
