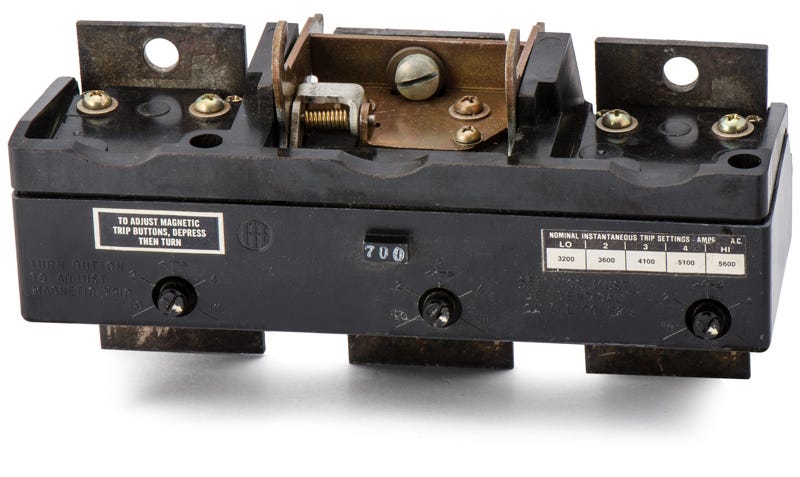

ITE Siemens KM3T700 ITE Trip Unit
- 700
- 3 Pole
Quantity
ITE KM3T700 Trip Unit
New
Quantity
Quantity
ITE KM3T700 Trip Unit
New
Quantity
| Brand | ITE Siemens |
|---|---|
| Part Number | KM3T700 |
| Series | KM |
| Amperage | 700 A |
| Poles | 3 |
| Voltage | 600VAC |
| Frame Type | KM |
|---|---|
| For Use With | KM Molded Case Circuit Breaker Frame Types |
| Trip Technology | Thermal Magnetic |
|---|
Quantity
ITE KM3T700 Trip Unit
Re-Certified
Quantity
| Brand | ITE Siemens |
|---|---|
| Part Number | KM3T700-R |
| Series | KM |
| Amperage | 700 A |
| Poles | 3 |
| Voltage | 600VAC |
| Frame Type | KM |
|---|---|
| For Use With | KM Molded Case Circuit Breaker Frame Types |
| Trip Technology | Thermal Magnetic |
|---|
Description
ITE KM3T700 Trip Unit
ITE KM3T700 is a 3 Pole Trip Unit with a current rating of 700 Amps and a voltage rating of 600VAC. It is used for KM molded case circuit breaker frame types. The KM3T700 and includes long time and instantaneous trip functions.
Specifications
| Brand | ITE Siemens |
|---|---|
| Part Number | KM3T700 |
| Series | KM |
| Amperage | 700 A |
| Poles | 3 |
| Voltage | 600VAC |
| Frame Type | KM |
|---|---|
| For Use With | KM Molded Case Circuit Breaker Frame Types |
| Trip Technology | Thermal Magnetic |
|---|
Product FAQs
5 answersWhich circuit breaker frames accept the KM3T700 trip unit?
This trip unit is designed specifically for ITE and Siemens KM molded case circuit breaker frames.
What specific trip functions are included in the KM3T700?
This thermal-magnetic trip unit includes long-time and instantaneous (LI) trip functions to protect against overloads and short circuits.
What is the recommended torque for the trip unit screws on the KM3T700?
When securing the trip unit, the screws on the outside poles should be tightened to a torque of 11 to 13 foot-pounds.
How is the breaker mechanism tripped prior to replacing the trip unit?
Remove the breaker cover, then locate and press the metal trip button in the recess on the load side between the center and right poles. This will move the operating handle to the tripped position.
What must be done with the breaker handle during the trip unit removal process?
After tripping the mechanism and removing the anchor screws, hold the breaker handle away from the trip unit to safely extract it from the frame.
