Littelfuse KLDR-05-6 Fuse
Quantity
Core Specs
See full specs
Littelfuse KLDR-05-6 Fuse
New
Quantity
Description

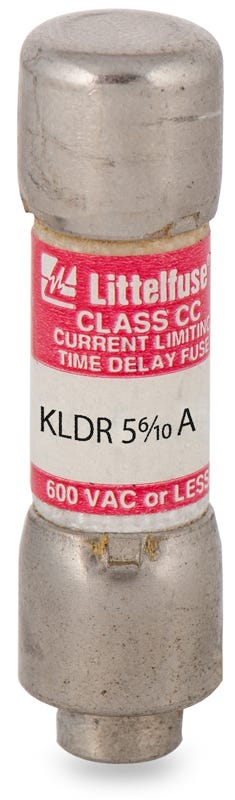

Littelfuse KLDR-05-6 Fuse
The Littelfuse KLDR-05-6 is a fuse with a current rating of 5.6 Amps and a voltage rating of 600VAC, 300VDC. It has an interrupting rating of 200kAIC at 600VAC, 20kAIC at 300VDC. The KLDR-05-6 has a clip/holder mounting type.
Specifications
| Amperage | 5.6 A |
|---|---|
| Voltage | 600VAC, 300VDC |
| Interrupting Rating | 200kAIC at 600VAC, 20kAIC at 300VDC |
| Series | KLDR |
| Mounting Type | Clip/Holder |
|---|---|
| Connection Type | Ferrule |
| Approval | UL, CSA, CE |
|---|---|
| Standards | RoHS |
| Body Material | Melamine |
| Brand | Littelfuse |
|---|---|
| MPN | KLDR-05-6 |
| UPC | 079458792645 |
| GTIN | 79458792645 |
